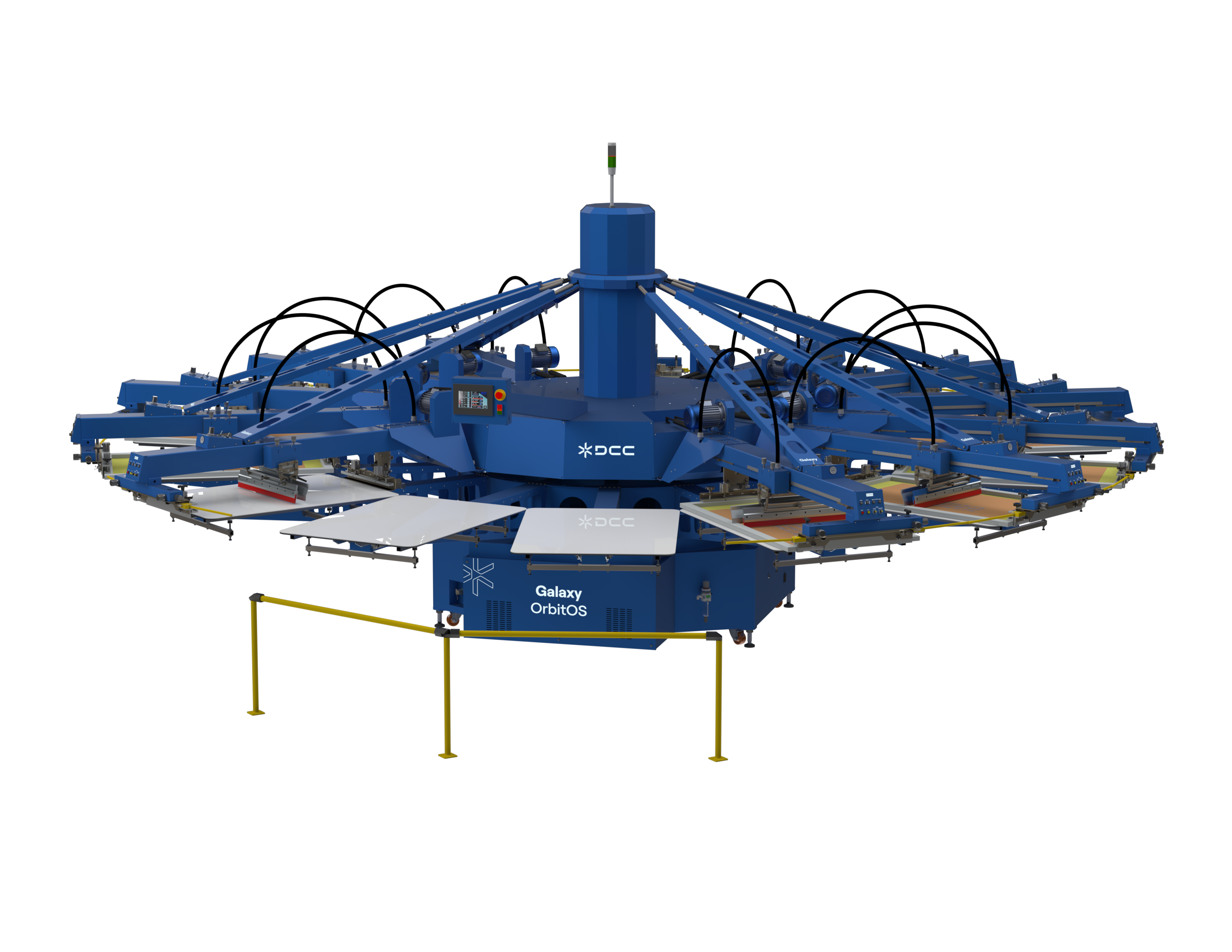

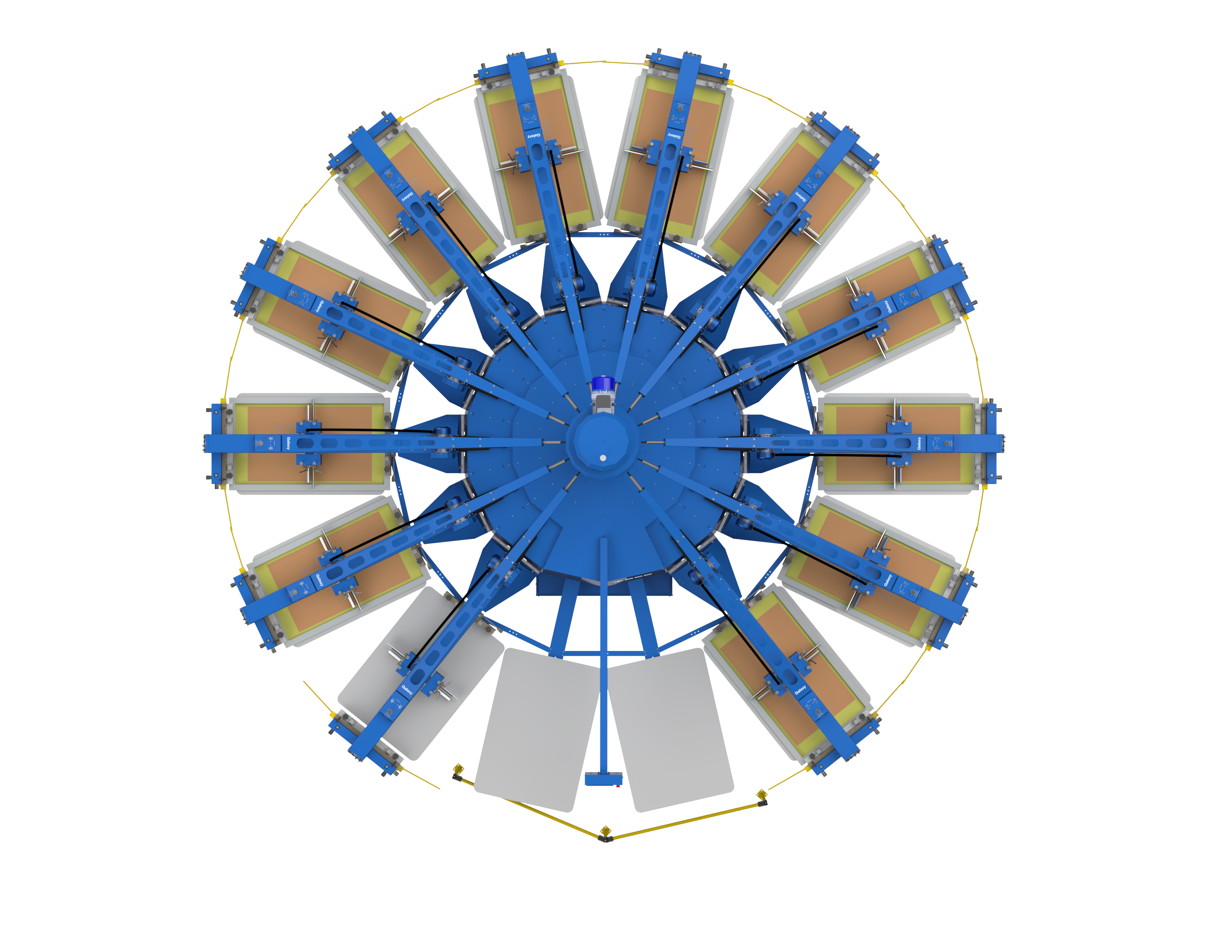

Galaxy
Orbit os
OverviewApplicationsSpecifications

Print Applications

Pocket T-shirt
Hand holding three ribbed socks in beige, white, and black, each featuring a black palm tree design and text.
Socks
Tagless Neck Label
Koozie
Golf Towel

Compact Design.
Proven Performance.

ProMini is a versatile, all-electric automatic screen-printing press built for shops that need reliable performance in a smaller footprint. Operating without an air compressor, it offers quiet, low-maintenance production with minimal power draw and fast setup.

Ideal for promotional products and small-format jobs, the ProMini delivers professional-level quality and efficiency in a compact, easy-to-run platform.

PNU Head lifting (Same as Rival)

Operating Panel (New)

HMI (Same as Rival)

Index & Skip Foot Pedal

Pneumatic Frame Locks

Squeegee Pressure Regulator

Front and Rear Micro Registration

Multi Print Mode Program

Print-Start / Print-Finish mode

Front to Back/Back to Front- Squeegee Mode

Maintenance Minder Program

Laser Registration Guide

Castor Wheels

Loading / Unloading Cycle Interruption System

Micro Switch Keypad Control Panel

Provision For Flash Socket Mounting

PRINT

Width 15 cm (6 inches),
Height 15 cm (6 inches)

PALLET

Width 11 cm (4.3 inches),
Height 23 cm (9 inches)

SCREEN

Width 28 cm (11 inches),
Height 38 cm (15 inches)

PRINTING
SPEED

1975 Pieces/h

Technical specifications

Configuration
PROMINI 8/1
PROMINI 8/2
PROMINI 8/3
PROMINI 10/4
Air @ 7 bar (102 psi)
235 l/min (8.3 cfm)
235 l/min (8.3 cfm)
235 l/min (8.3 cfm)
235 l/min (8.3 cfm)
Electrical Requirements
208–230 V, 1 ph, 39 A, 50/60 Hz, 7.05 kW (UL) 208–230 V, 1 ph, 39 A, 50 Hz, 7.05 kW (CE)
208–230 V, 1 ph, 39.5 A, 50/60 Hz, 7.15 kW (UL) 208–230 V, 1 ph, 39.5 A, 50 Hz, 7.15 kW (CE)
208–230 V, 1 ph, 40 A, 50/60 Hz, 7.25 kW (UL) 208–230 V, 1 ph, 40 A, 50 Hz, 7.25 kW (CE)
208–230 V, 1 ph, 53 A, 50/60 Hz, 9.6 kW
In-built Flash Cure Units
3
3
3
4
Diameter
128 cm (50.5")
128 cm (50.5")
128 cm (50.5")
146 cm (57.5")
Maximum Frame Size
28 × 38 cm (11" × 15")
28 × 38 cm (11" × 15")
28 × 38 cm (11" × 15")
28 × 38 cm (11" × 15")
Maximum Image Area
15 × 15 cm (6" × 6")
15 × 15 cm (6" × 6")
15 × 15 cm (6" × 6")
15 × 15 cm (6" × 6")
Machine Weight
262 kg (578 lb)
294 kg (648 lb)
326 kg (719 lb)
400 kg (882 lb)
Standard Pallet Size
11 × 23 cm (4.3" × 9")
11 × 23 cm (4.3" × 9")
11 × 23 cm (4.3" × 9")
11 × 23 cm (4.3" × 9")
Stations/Colors
8/1
8/2
8/3
10/4
DOWNLOAD PDF

Specifications

Galaxy Orbit OS 12/10

Galaxy Orbit OS  14/12

Air @ 8.5 Bar ( 123 psi)1

310 l/min (10.9 cfm)

370 l/min (13.0 cfm)

Electrical Requirements2,3

380-415 V, 3 ph, 14.5 A, 50 Hz, 6.75 kW

380-415 V, 3 ph, 16.5 A, 50 Hz, 7.5 kW

Diameter

602 cm (237”)

655 cm (258”)

Maximum Frame Size

75 x 132 cm (30" x 52")

75 x 132 cm (30" x 52")

Maximum Frame Size
(Double Index- Skip Frame and Skip Pallet)

86 x 135 cm (34" x 53")

86 x 135 cm (34" x 53")

Maximum Image Area

61 x 101 ("24 x 40")

61 x 101 ("24 x 40")

Maximum Image Area
(Double Index - Skip Frame and Skip Pallet)

71 x 101 cm (28" x 40")

71 x 101 cm (28" x 40")

Machine Weight

3240 kg (7143 lb)

3750 kg (8267 lb)

Standard Pallet Size

76 x 122 cm (30" x 48")

76 x 122 cm (30" x 48")

Stations/Colors

12/10

14/12

1Consumption @ 15 pieces/min & max image area

2General usage may vary, but will be significantly less than stated values

3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
