Discover the pinnacle of productivity and textile vibrancy

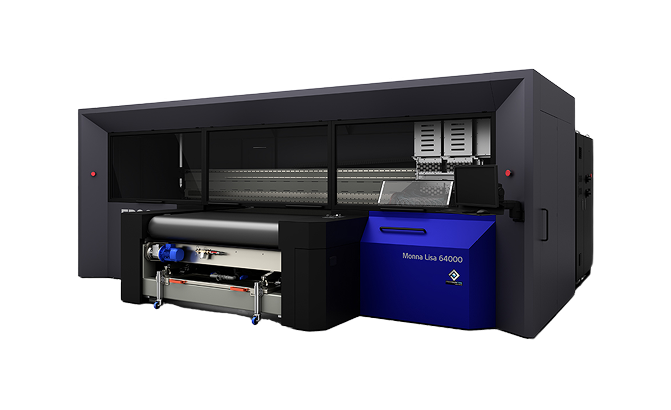

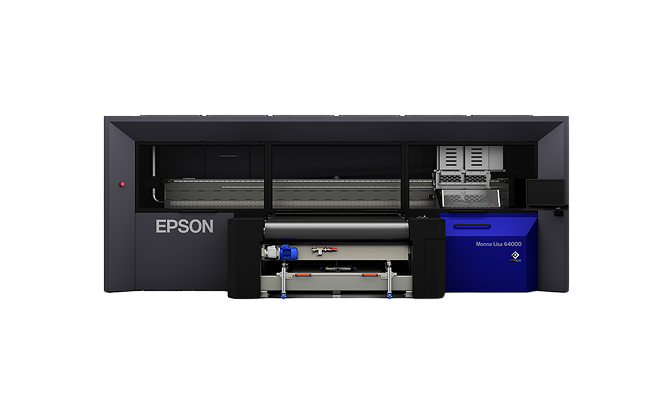

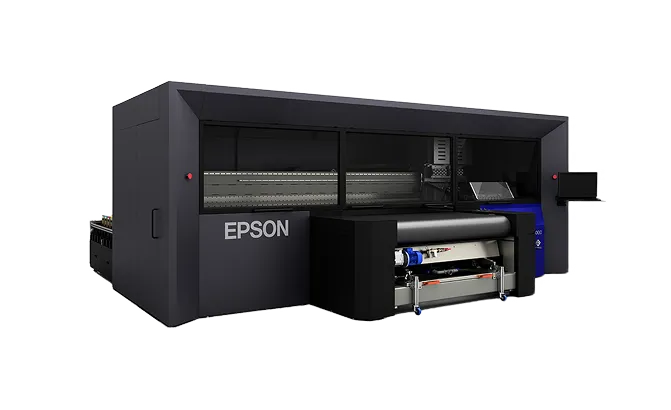

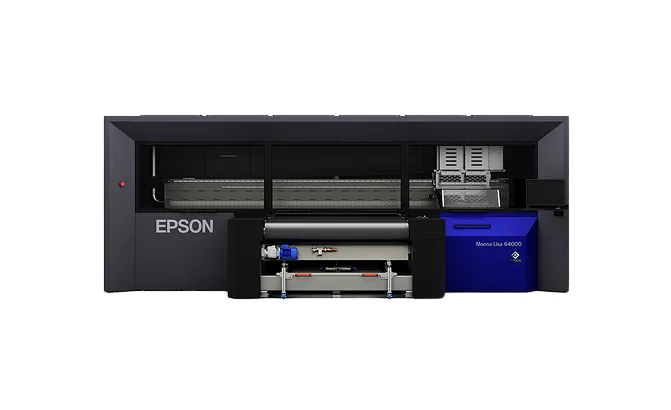

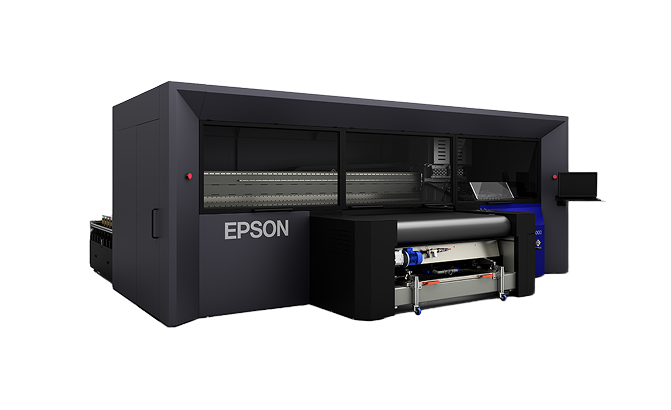

Equipped with 64 specially developed PrecisionCore printheads for the highest print productivity, the ML-64000 is Epson's flagship model for the industry-leading Monna Lisa digital Direct-to-Fabric printers series. Designed for stable and high-quality printing at high speeds, the ML-64000 brings state-of-the-art inkjet printing and manufacturing technologies together to guarantee the best printing results.

Industrial Direct-to-Fabric printer with 64 printheads

Outstanding print productivity for large scale fabric printing

High print quality with Epson GENESTA Inks

Advanced cleaning mechanism providing stable operation

Minimal downtime with round-the-clock remote monitoring system

250

PRINTS PER HOUR

1

OPERATOR REQUIRED

CMYK + OG

Color Channels

2

In-Line PreTreat Stations for Light & Dark

36

Printheads

Technical specifications

Specifications

ML-8000

ML-64000

ML-32000

Evo Tre 16

Printing Technology

PrecisionCore inkjet technology

Number of Print Head

Gradation process

Variable-Sized Droplet Technology

Max fabric thickness

Up to 5.0 mm

Up to 10 mm

Max print width

1,850 mm

1,800 mm

1,800 / 2,400 / 3,400 mm (71 / 94 / 133 in)

1,800 / 2,400 mm (71 / 94 in)

Max fabric width

1,850 mm

1,800 mm

1,800 / 2,400 / 3,400 mm (71 / 94 / 133 in)

1,800 / 2,400 mm (71 / 94 in)

GENESTA Ink

Reactive

Black, Cyan, Magenta, Yellow, Grey, Red, Blue, Orange, Crimson, Across (Ink penetration liquid)

Disperse

Black, Cyan, Magenta, Yellow, Grey, Red, Blue, Orange, Across (Ink penetration liquid)

Acid

Black, Cyan, Magenta, Yellow, Grey, Red, Blue, Cobalt, Orange, Rubine, Fluorescent Flavine, Flourescent Pink, Across (Ink penetration liquid)

Pigment

Black, Cyan, Magenta, Yellow, Grey, Red, Green, Orange

INK Capacity

10 liters

Print Speed (Square)*1

300 × 600 dpi, 1 pass

312 (m²/h) (Reactive/Pigment)

279 (m²/h) (Acid/Disperse) *2

697 (m²/h) *5

417 (m²/h) *5

600 × 600 dpi, 2 pass

162 (m²/h) (Reactive/Pigment) 144 (m²/h) (Acid/Disperse) *3

774 (m²/h)

423 (m²/h) *5

236 (m²/h) *5

900 × 600 dpi, 3 pass

108 (m²/h) (Reactive/Pigment)

96 (m²/h) (Acid/Disperse) *4

567 (m²/h)

305 (m²/h) *5

158 (m²/h) *5

Fabric Handling

Fabric Drive

Conveyer belt with thermoplastic adhesive

Conveyer belt with adhesive

Belt Washing

Automatic

Standard Feeder

Fabric Roll Diameter

400 mm (15.7 in)

300 mm (11.8 in)

Fabric Roll Weight

100 kg (220 lb)

Fabric Roll Core Diameter

2" or 3" (ML-32000-340 : 3" only)

Environmental Characteristics

Temperature

Operating: 20°C - 30°C, Recommended: 22°C - 28°C (Operating: 68°F - 86°F, Recommended: 72°F - 82°F)

Humidity

Operating: 40 - 60%RH (no condensation)

Dimensions

Printer

3,700 (W) x 2,690 (D) x 1,830 (H) (mm)

146 (W) x 106 (D) x 72 (H) (in)

6,500 (W) x 4,960 (D) x 2,530 (H) (mm)

256 (W) x 195 (D) x 100 (H) (in)

4,610 (W) x 2,500 (D) x 2,070 (H) (mm) *5

181 (W) x 98 (D) x 81 (H) (in)

4,610 (W) x 2,500 (D) x 2,070 (H) (mm) *5

181 (W) x 98 (D) x 81 (H) (in)

Control Box

1,600 (W) x 1,200 (D) x 2,640 (H) (mm)

63 (W) x 47 (D) x 104 (H) (in)

660 (W) x 1,500 (D) x 2,290 (H) (mm) *5

26 (W) x 59 (D) x 90 (H) (in)

480 (W) x 1,210 (D) x 1,920 (H) (mm) *5

19 (W) × 48 (D) × 76 (H) (in)

Ink Rack

880 (W) x 960 (D) x 790 (H) (mm)

35 (W) x 38 (D) x 31 (H) (in)

1,760 (W) x 960 (D) x 840 (H) (mm)

69 (W) x 38 (D) x 33 (H) (in)

Internal Ink Rack

1,240 (W) × 1,300 (D) × 1,220 (H) mm

49 (W) × 51 (D) × 48 (H) (in)

Weight

Printer

Approx. 2,150 kg (4,740 lb)

Approx. 7,000 kg (15,432 lb)

Approx. 3,900 kg (8,598 lb) *5

Approx. 3,700 kg (8,157 lb) *5

Control Box

Approx. 700 kg (1,543 lb)

Approx. 400 kg (882 lb)

Approx. 330 kg (728 lb)

Ink Rack

Approx. 110 kg (243 lb)

Approx. 300 kg (661 lb)

Approx. 240 kg (529 lb)

Approx. 260 kg (573 lb)

Electrical (Main unit)

Voltage

380 - 415 V, 3phase + Neutral + Earth,

50 Hz/60 Hz

400 V, 3phase + Neutral + Earth,

50 Hz/60 Hz

Rated Current

20 A

30 A

50 A

Apparent Power (Operating)

14.4 kVA

20.7 kVA

Network

Transmission speed

USB3.0 Ethernet 1000BASE-T

1000BASE-T (recommended)

100BASE-TX or more (recommended)

Note

Printing width: 1500 mm, Printing mode: bidirectional. Printing speeds vary depending on such factors as image printed, firmware version, operating state of PC and print settings.

With 300 x 300 dpi 2 Half Tone layers.

With 300 x 300 dpi 4 Half Tone layers.

With 300 x 300 dpi 6 Half Tone layers.

Printable Area and Accuracy:

Maximum Printable Length:Unlimited

Maximum Printable Width:1,800 mm (71”)

Max. Fabric Width:1,800 mm (71”)

Roll Media Handling:

Media Thickness: 10mm

Printer Details:

Belt Washing: Automatic

Fabric Type:

Max. Fabric Thickness: 10.0mm

Fabric Drive: Conveyor belt with thermoplastic adhesive

Weight: Approx. 7,000kg

Display:22.82cm (9-INCH) LCD Touch Panel

Other Features:

Printing Speed: Square: Typical Printing Speed 1 (m2/h) 740 (600 x 600 dpi, 2 Pass); Typical Printing Speed 2 (m2/h) 533 (900 x 600 dpi, 3 Pass); Typical Printing Speed 1 (sq ft/hr) 7,965 (600 x 600 dpi, 2 Pass); Typical Printing Speed 2 (sq ft/hr) 5,737 (900 x 600 dpi, 3 Pass)Linear: Typical Printing Speed 1 (lmt/h) 493 (600 x 600 dpi, 2 Pass); Typical Printing Speed 2 (lmt/h) 355 (900 x 600 dpi, 3 Pass); Typical Printing Speed 1 (li ft/hr) 1,619 (600 x 600 dpi, 2 Pass); Typical Printing Speed 2 (li ft/hr) 1,166 (900 x 600 dpi, 3 Pass)

Printing Technology: PrecisionCore inkjet technology

Number of Print Head: 64

Number of Colour: 8

Print Resolution: 1,200 x 1,200 dpi (Pigment), 1,200 x 600 dpi (Reactive, Acid, Disperse)
