The Spicy Cure for New Flashing Options

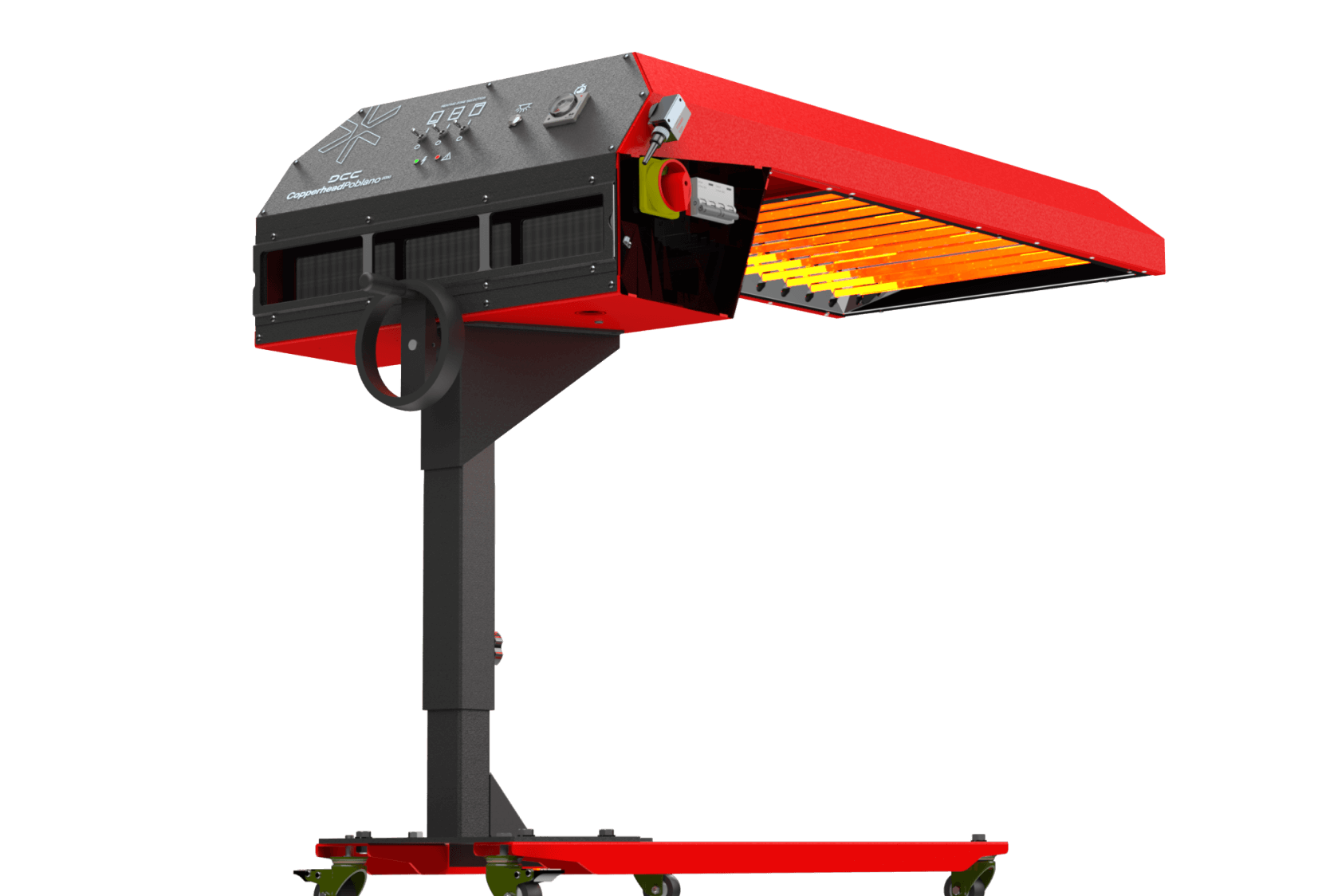

The Poblano is a versatile freestanding quartz flash cure system designed to fit most press brands. Its adjustable sensor activates the flash as the pallet approaches, while medium-wave quartz lamps deliver powerful, even heating. With three independently controlled flashing zones, timed curing, and a reflector array with forced-air heat exchange, Poblano ensures consistent performance. Smooth-rolling, locking casters make positioning quick and easy.
Technical specifications
DOWNLOAD PDF
Specifications
POBLANO 1820
POBLANO 2030
Curing Area
46 x 51 cm (18" x 20")
51 x 76 cm (20" x 30")
Electrical Requirements
208-230 V, 3 ph, 43 A, 50/60 Hz, 13.5 Kw
208-230 V, 1 ph, 73 A, 50/60 Hz, 13.5 Kw
380-415 V, 3 ph, 24 A, 50/60 Hz, 13.5 Kw
51 x 76 cm (20" x 30")
208-230 V, 3 ph, 68 A, 50/60 Hz, 21.7 Kw
208-230 V, 3 ph, 48 A, 50/60 Hz, 21.7 Kw
Machine Dimension (L x W)
107 x 64 cm (42.2" x 25.3")
133 x 64 cm (52.2" x 25.3")
Machine Height
101 cm – 121 cm (Adjustable)
101 cm – 121 cm (Adjustable)
Weight
65 kg (143.3 lbs)
72 kg (159 lbs)
1Use uninterruptible power supply (UPS) to safeguard machine from voltage fluctuation out of main supply. If incoming voltage differs from the voltage(s) listed in the brochure, calculate amperage accordingly.
