Maximize efficiency,
Simplify curing.

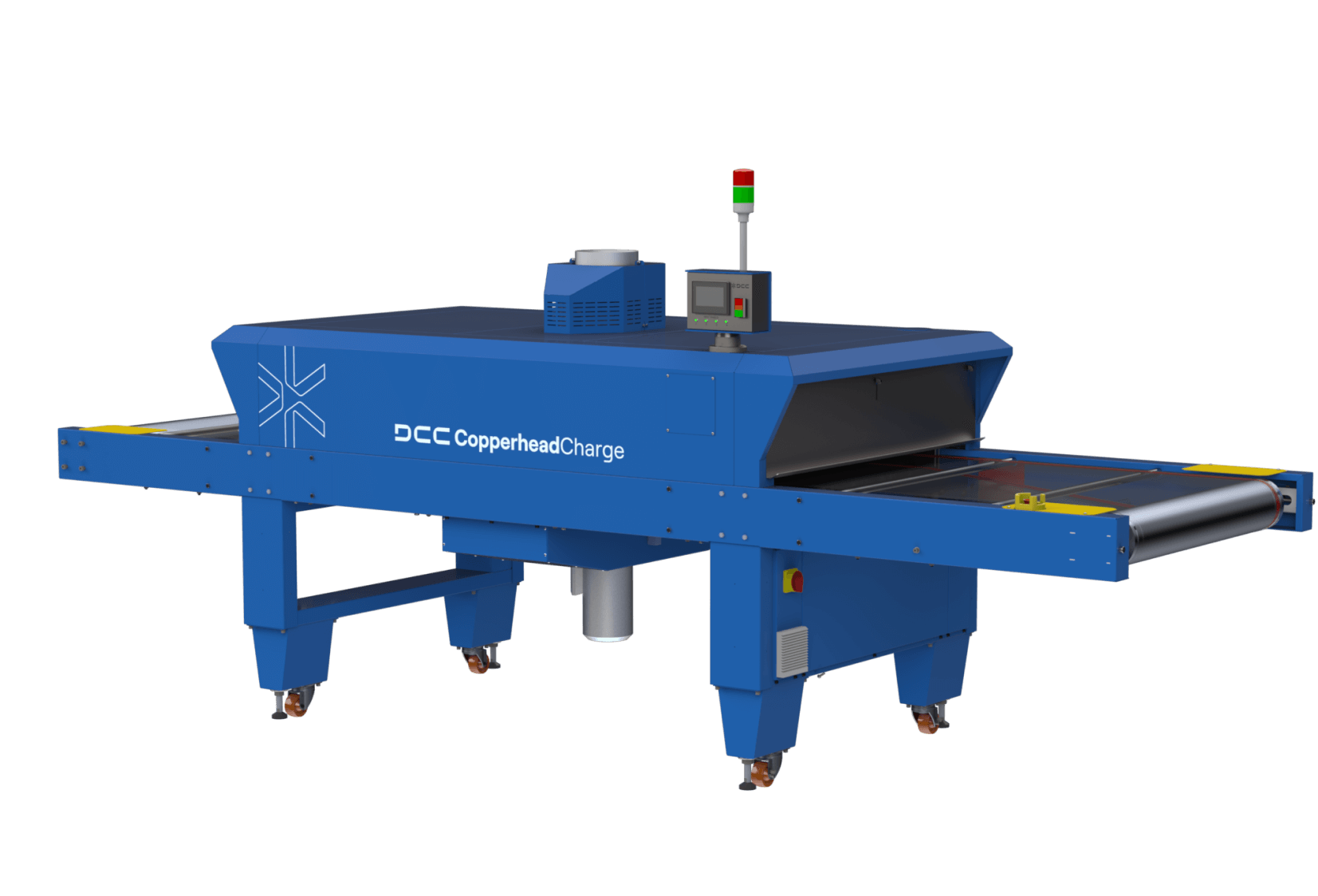

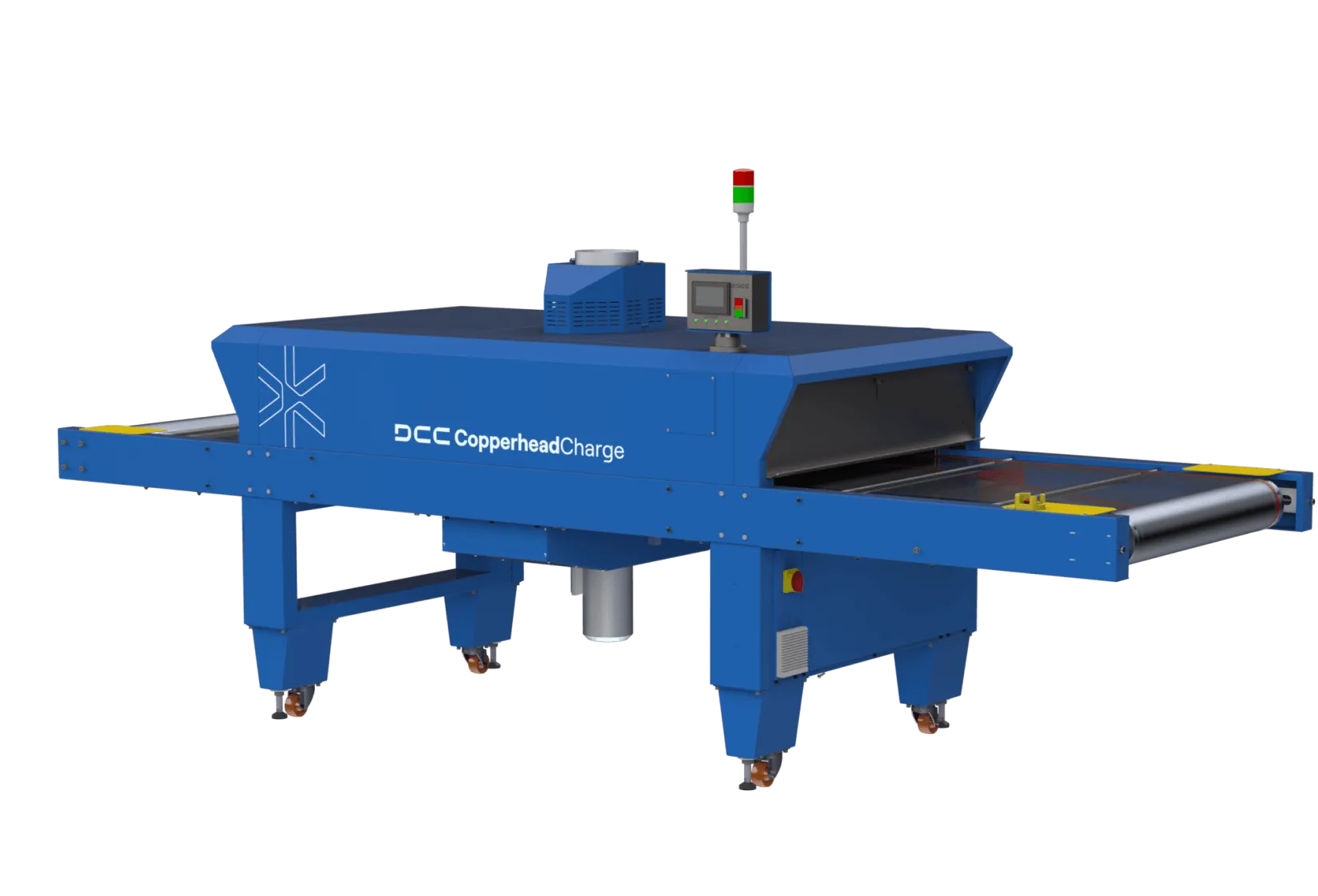

The Charge Dryer combines proven curing technology with smart innovation for startup to medium shops. Its advanced airflow system cures waterbase, plastisol, and DTG prints with edge-to-edge consistency.
Cool Skin™ keeps the exterior safe to touch, while the Patriot Belt™ and Sure Trak™ ensure smooth operation. With digital belt speed control, a brushless motor, and a manual crank for emergencies, it’s built for reliable, efficient curing.
Slim design & construction with ease of mobility
Patriot Belt™ with SureTrak™ roller system
Available from 24” to 60” belt width & 6’ to 16’ heat chamber length
Electric infrared plus forced-air curing technology
.svg)
Icon-based digital touchscreen control panel
Advanced design: Ensures consistent temperature throughout the heat chamber
Belt speed display: Reflects heat-chamber retention time, making it easy to match ink manufacturers’ curing recommendations
Real-time temperature data for consistent curing results
Dual Zone Technology: Heavy-duty Glasswool insulation traps heat inside the dryer while Cool Skin™ technology maintains airflow outside the heat chamber — increasing overall efficiency
Technical specifications
Specifications
Charge 24/6
Charge 24/12
Charge 36/6
Charge 36/12
Charge 48/8
Charge 48/16
Charge 60/8
Charge 60/16
Electrical Requirements*
208-230, 1ph/3ph, 60A/48A, 60 Hz, 10.9 kW** 208-230, 3ph, 35A, 60 Hz, 10.9 kW 380-415 V, 3ph, 21 A, 50/60 Hz, 10.9 kW
208-230, 1ph/3ph, 118A/95A, 60 Hz, 21.7 kW** 208-230, 3ph, 70A, 60 Hz, 21.7 kW 380-415 V, 3ph, 42 A, 50/60 Hz, 21.7 kW
208-230, 1ph/3ph, 90A/70A, 60 Hz, 16.1kW** 208-230, 3ph, 51A, 60 Hz, 16.1kW 380-415 V, 3ph, 32 A, 50/60 Hz, 16.1 kW
208-230, 3ph, 101A, 60 Hz, 32 kW 380-415 V, 3ph, 62 A, 50/60 Hz, 32 kW
208-230, 3ph, 97A, 60 Hz, 30.7 kW 380-415 V, 3ph, 60 A, 50/60 Hz, 30.7 kW
208-230, 3ph, 192A, 60 Hz, 61 kW 380-415 V, 3ph, 116 A, 50/60 Hz, 61 kW (CE)
208-230, 3ph, 120A, 60 Hz, 38.1 kW (UL) 380-415 V, 3ph, 72.5 A, 50/60 Hz, 38.1 kW (CE)
208-230, 3ph, 238A, 60 Hz, 75.7 kW (UL) 380-415 V, 3ph, 145 A, 50/60 Hz, 75.7 kW (CE)
Exhaust Blower System*
20 cm (7.9") : 8650 L/min (308 cfm) @ 1.32 mmwc (0.05"wc)
2 nos. x 20 cm (7.9") : 8650 L/min (308 cfm) @ 1.32 mmwc (0.05"wc)
20 cm (7.9") : 8650 L/min (308 cfm) @ 1.32 mmwc (0.05"wc)
2 nos. x 20 cm (7.9") : 8650 L/min (308 cfm) @ 1.32 mmwc (0.05"wc)
24 cm (9.8") : 14215 L/min (502 cfm) @ 2.0 mmwc (0.08"wc)
2 nos. x 24 cm (9.8") : 14215 L/min (502 cfm) @ 2.0 mmwc (0.08"wc)
24 cm (9.8") : 14215 L/min (502 cfm) @ 2.0 mmwc (0.08"wc)
2 nos. x 24 cm (9.8") : 14215 L/min (502 cfm) @ 2.0 mmwc (0.08"wc)
Heat Chamber Length
183 cm (72")
366 cm (144")
183 cm (72")
366 cm (144")
244 cm (96")
488 cm (192")
244 cm (96")
488 cm (192")
Overal Length
396.5 cm (156 ")
579.5 cm (228.15)
396.5 cm (156 ")
579.5 cm (228.15)
488 cm (192")
732 cm (288")
488 cm (192")
732 cm (288")
Overal Width
95.3 cm (37.4")
95.3 cm (37.4")
125.6 cm (49.4")
125.6 cm (49.4")
156.3 cm (61.5")
156.3 cm (61.5")
186.7 cm (73.5")
186.7 cm (73.5")
Overal Height
179.2 cm (70.6")
179.2 cm (70.6")
179.2 cm (70.6")
179.2 cm (70.6")
179.2 cm (70.6")
179.2 cm (70.6")
179.2 cm (70.6")
179.2 cm (70.6")
Radiant Panels
4
8
4
8
6
12
6
12
Total Machine Weight
641 kg (1413 lbs)
991 kg (2185 lbs)
745 kg (1643 lbs)
1320 kg (2910 lbs)
10/985 kg (2171 lbs)4
1680 kg (3704 lbs)
1117 kg (2462 lbs)
1908 kg (4206 lbs)
Standard Infeed Length
122 cm (48")
122 cm (48")
122 cm (48")
122 cm (48")
122 cm (48")
122 cm (48")
122 cm (48")
122 cm (48")
Standard Outfeed Length
91.5 cm (36")
91.5 cm (36")
91.5 cm (36")
91.5 cm (36")
122 cm (48")
122 cm (48")
122 cm (48")
122 cm (48")
*The Values are tentative to changes
*General Usage may vary, but will be significantly less than stated values
** The mentioned values are for machines that are convertible from 1ph to 3ph & vice versa.
DOWNLOAD PDF
More from Dryers
Discover other powerful solutions designed to elevate your printing workflow.

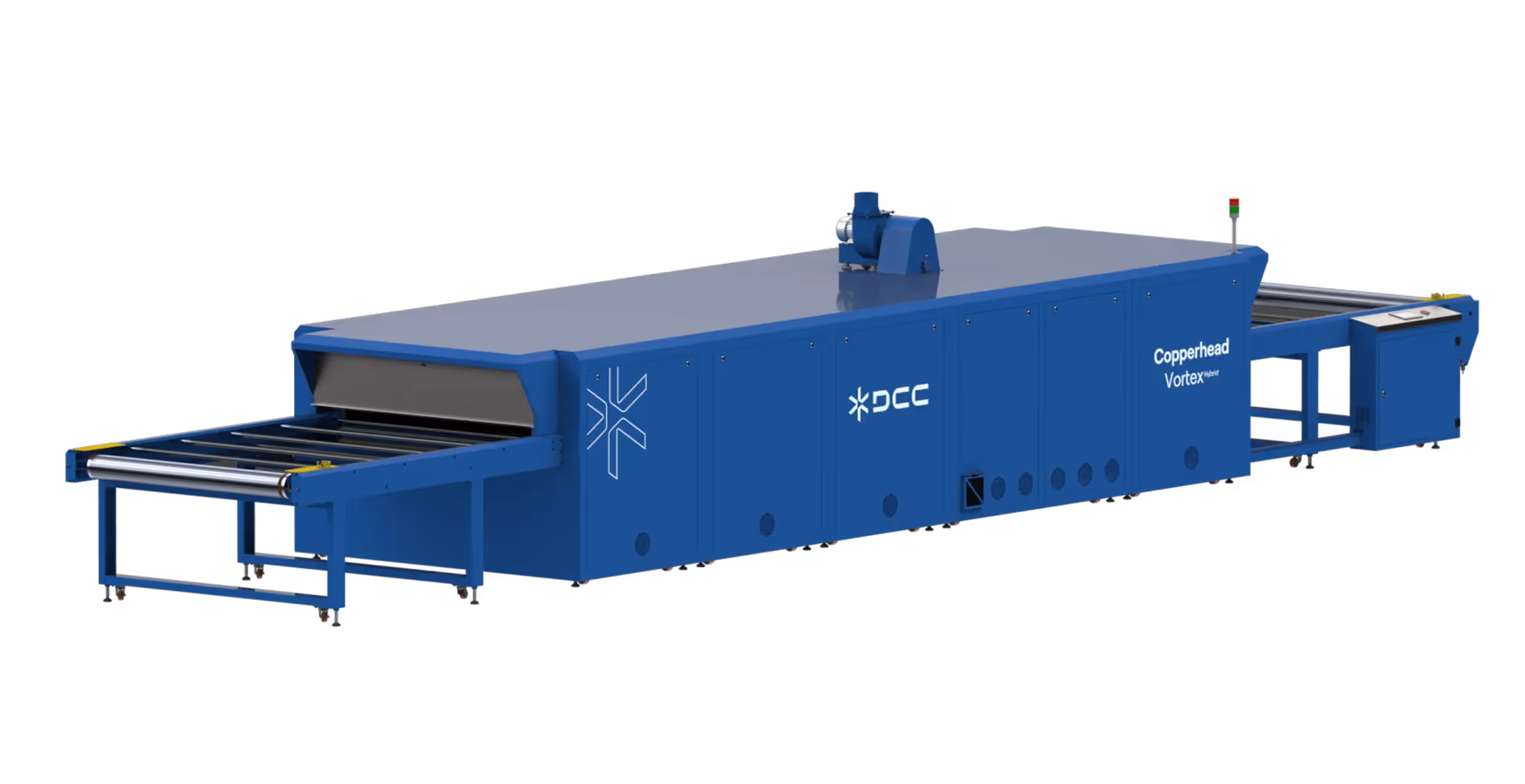

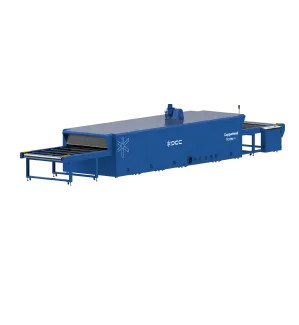

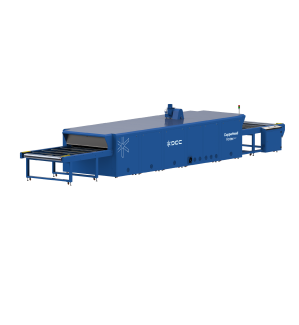

CopperheadVortex
