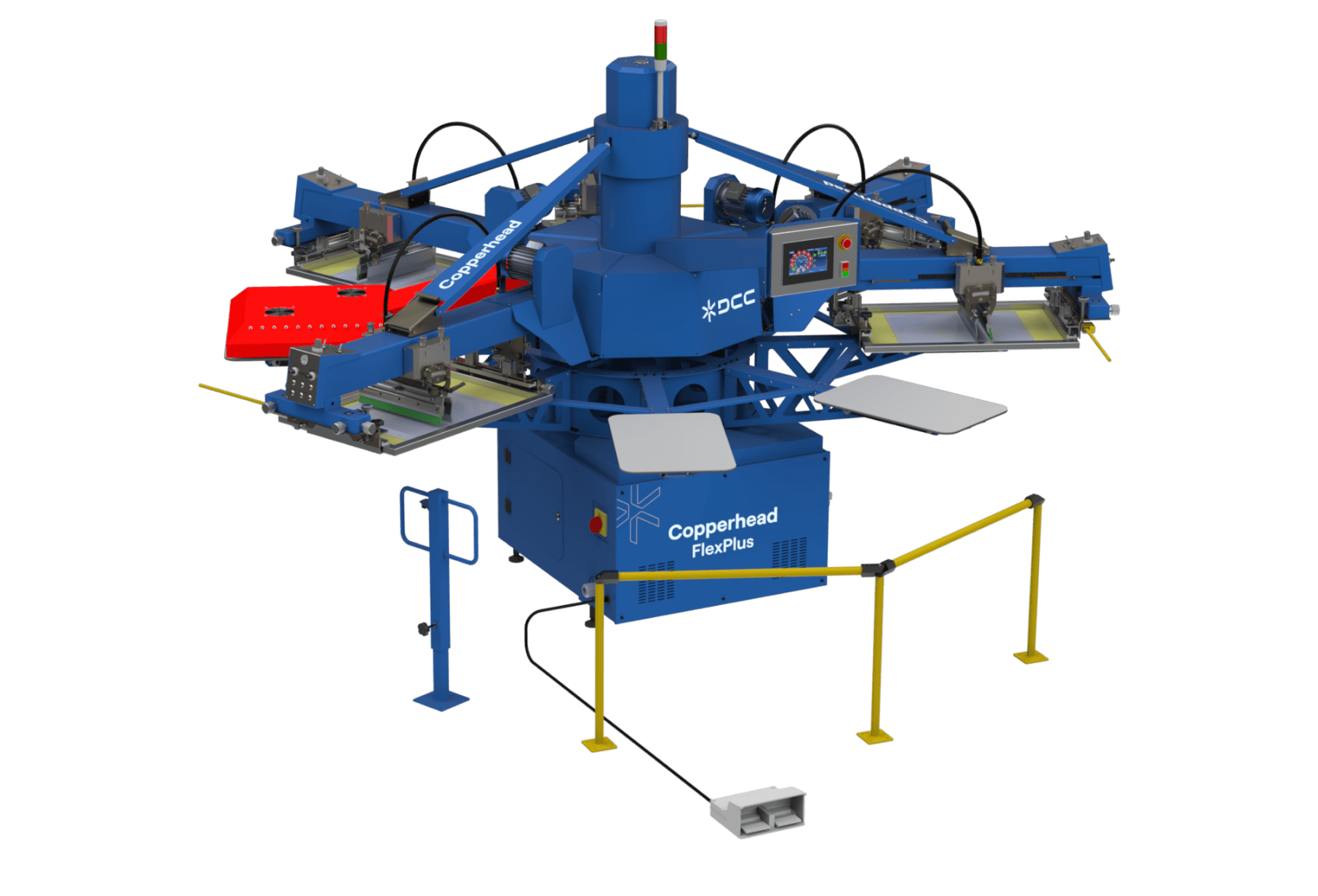

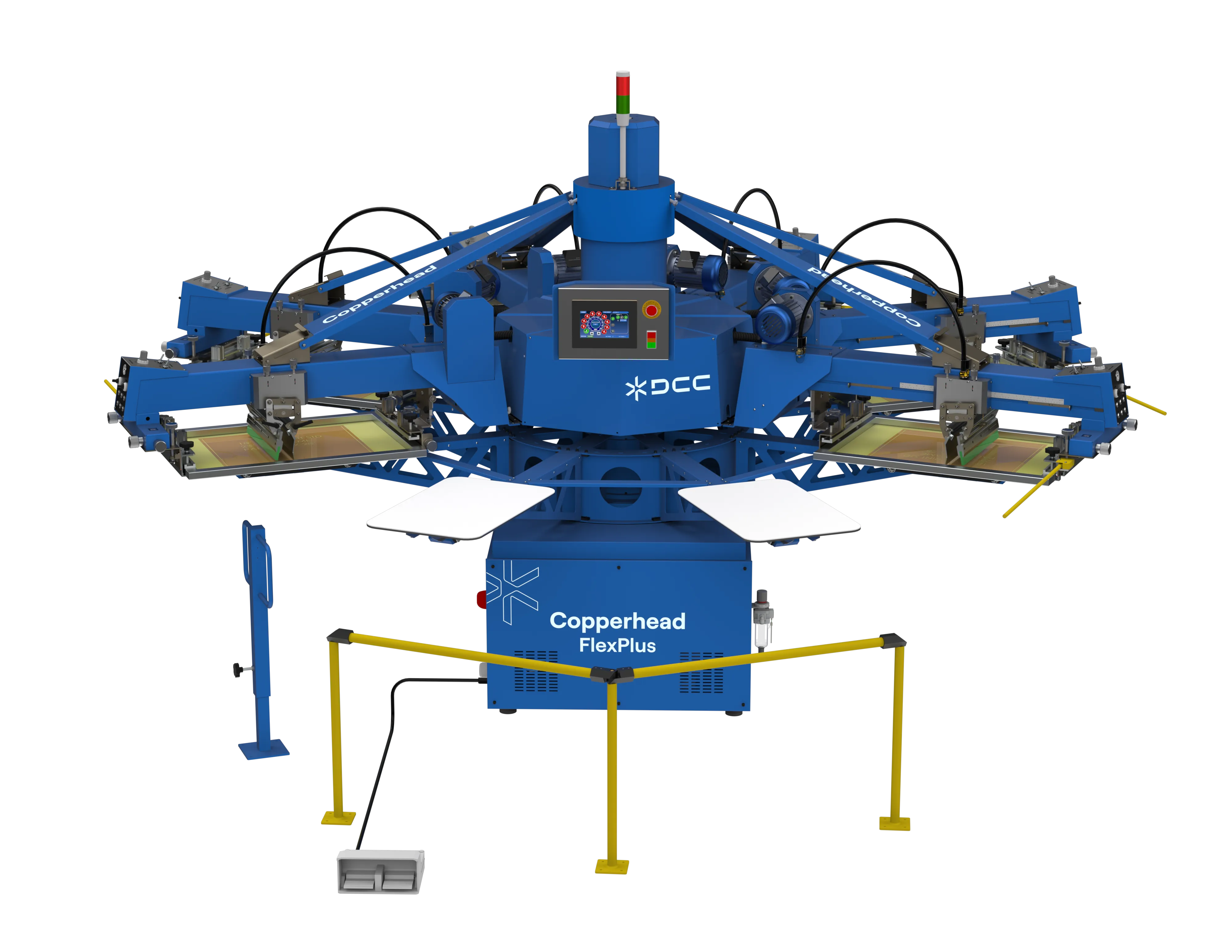

FlexPlus packs the power and precision of larger presses into a smaller, affordable footprint—making it the perfect entry-level automatic or secondary production unit for growing shops.With advanced operator controls, large image capability, and simplified setup features, the FlexPlus delivers reliable speed and quality that outperforms its class.
.svg)
Specifications
Flex Plus 8/4
Flex Plus 8/6
Air @ 7 Bar ( 102 psi)1
180 L/min (6.4 cfm)
205 L/min (7.3 cfm)
Electrical Requirements2,3
208-230 V, 1 ph, 18.5 A, 50/60 Hz, 3.4 kW (UL/CE) 208-230 V, 3 ph, 11 A, 50/60 Hz, 3.4 kW (UL) 380-415 V, 3 ph, 8.5 A, 50 Hz, 3.4 kW (CE)
208-230 V, 1 ph, 21 A, 50/60 Hz, 3.75 kW (UL/CE) 208-230 V, 3 ph, 12 A, 50/60 Hz, 3.75 kW (UL) 380-415 V, 3 ph, 8.5 A, 50 Hz, 3.75 kW (CE)
Maximum In-Head Flash Cure Units4 (Optional)
1
1
Diameter
391 cm (154")
391 cm (154")
Maximum Frame Size
58 x 84 cm (23" x 33") OD
58 x 84 cm (23" x 33") OD
Maximum Image Area
41 x 51 cm (16" x 20")
41 x 51 cm (16" x 20")
Machine Weight
1260 kg (2778 lb)
1260 kg (2778 lb)
Standard Pallet Size
40 x 64 cm (16" x 25")
40 x 64 cm (16" x 25")
Stations/Colors
8/4
8/4
1Consumption @ 10 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
4For Amperage values while using In-Head Flash Cure Units, contact M&R Global Company for details
