250
PRINTS PER HOUR
1
OPERATOR REQUIRED
CMYK + OG
Color Channels
2
In-Line PreTreat Stations for Light & Dark
36
Printheads
SC F2230
Applications
Overview
Specification
Print Applications
Baby Garments
Socks
.webp)
Tagless Neck Label
Swimming Cap
Unleash your creativity,
print your style

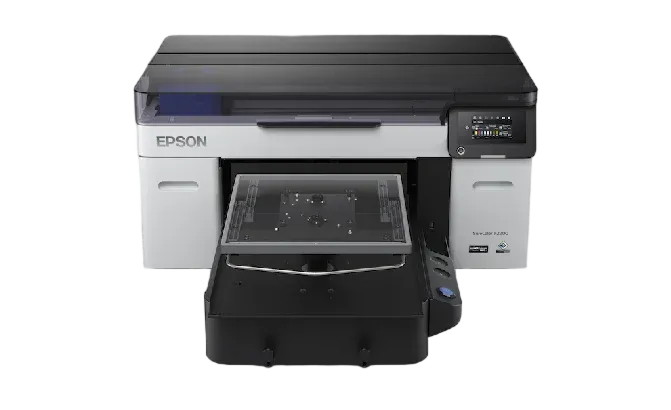

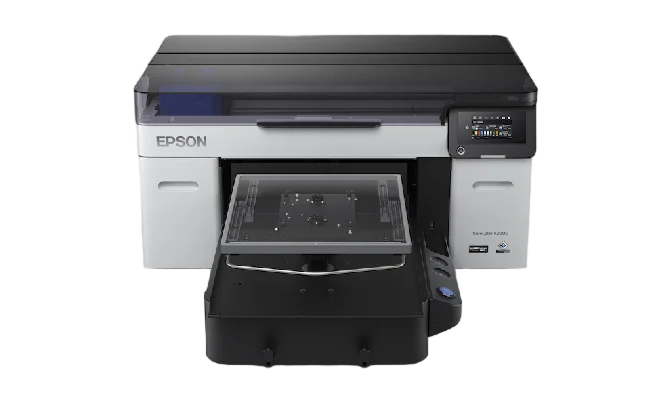

The Epson SureColor SC-F2230 brings with it improved garment printing capabilities and superior print quality, offering the perfect compact solution for small and mid-sized garment customization businesses. Equipped with the latest PrecisionCore MicroTFP printhead, coupled with the Auto Gap Adjustment function, experience next level efficiency and improve your business turnaround time.
Epson PrecisionCore MicroTFP Printhead
Auto Gap Adjustment function for improved productivity

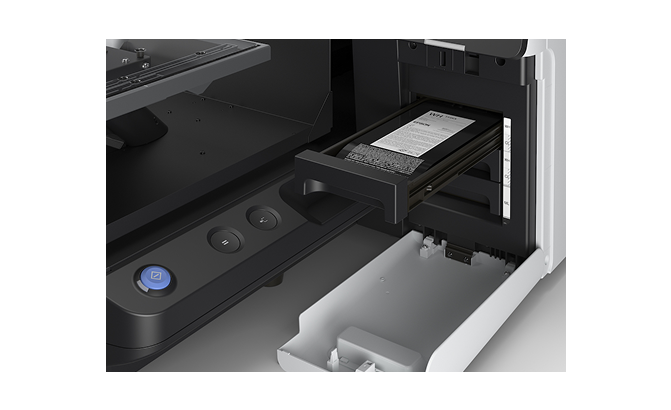

New ink pack system with increased capacity
Garment Creator 2 software with improved processing speed and higher resolution input
.svg)

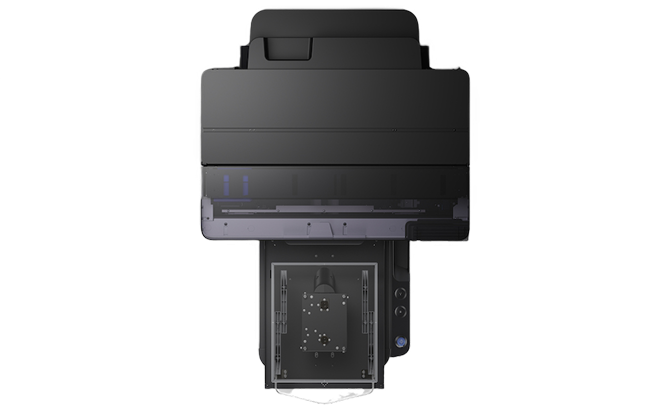

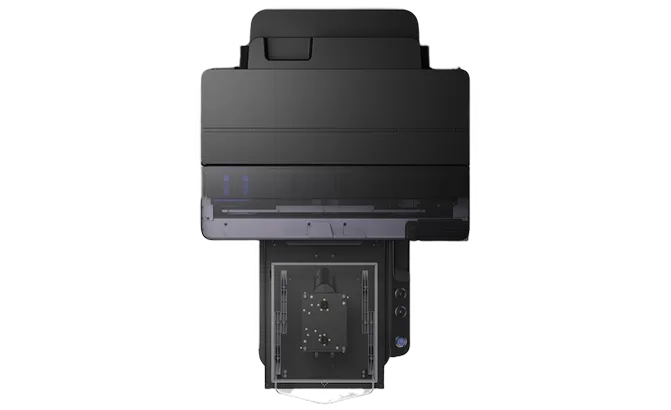

Improved usability with a smaller compact size
Technical specifications
Garment Media Handling:
Media Type: Cotton 100%, 50% cotton or more for blended
Polyester 100%, 50% or more polyester for blend
The finished image depends on the garment. Also, printing is not possible on fabrics with uneven surfaces.
Polyester 100%, 50% or more polyester for blend
The finished image depends on the garment. Also, printing is not possible on fabrics with uneven surfaces.
Platen Path: Belt Feed
Curing Requirements:
Heat Press Temperature:
Heat Press Condition: Cotton garment material Drying :170℃, 45seconds(For dark T-shirt) Fixing :170℃, 45seconds(For dark T-shirt/light T-shirt)Polyester garment material(For dark T-shirt) Drying :130℃, 60seconds Fixing :130℃, 90secondsPolyester garment material(For light T-shirt) Drying :130℃, 60seconds Fixing :130℃, 30seconds When the printing area size is A4.The optimum conditions differ depending on the heat press used, so be sure to determine the temperature and time while checking the ink fixing result in advance.
Oven Condition: Cotton garment material(For dark T-shirt/light T-shirt) Fixing :160℃, 3.5 - 4.5minutesPolyester garment material(For dark T-shirt) Fixing :140℃, 5.0 - 10.0minutesPolyester garment material(For light T-shirt) Fixing :140℃, 5.0 - 10.0minutes When the printing area size is A4.The optimum conditions differ depending on the oven used, so be sure to determine the temperature and time while checking the ink fixing result in advance.
Printer Details:
Options:
Hanger Platen - L/Hanger Platen - M/Hanger Platen - S/Extra Small Platen (7”x8”/178x203mm)/Medium Grooved Platen (14"x16"/356x406mm)/Sleeve Platen/Grip Pad Tool/Pre-treatment roller set/Replacement rollers for pre-treatment (3 pieces)/Hard roller
Printable Area: Printable Area: Hanger Platen - L (406㎜ｘ508㎜) Hanger Platen - M (356㎜ｘ406㎜) Hanger Platen - S (254㎜ｘ305㎜) Extra Small Platen (178x203mm) Medium Grooved Platen (356x406mm) Sleeve Platen (102㎜ｘ102㎜)
Minimum Requirements:
Mac_System_Requirement: CPU : Multicore(Intel Core i7 8th generation or later and ARM-based Apple Silicon processors recommended) Memory : 2GB or more free space (16GB or more recommended) HDD : 32GB or more free space (SSD recommended) Monitor : 1024×768 or more(For Garment Creator2)
Win PC System Requirement: CPU : Multicore(Intel Core i7 8th generation or later recommended) Memory : 2GB or more free space (16GB or more recommended) HDD : 32GB or more free space (SSD recommended) Monitor : 1024×768 or more(For Garment Creator2)
Connectivity:
Memory:1 GBytes
Print Languages (Standard):ESC/P raster
Support OS:Windows supported OS: Windows 8.1(64-bit) or later(64-bit)
Mac Supported OS: Mac OS X 10.12 or later
Mac Supported OS: Mac OS X 10.12 or later
Control Panel:11cm (4.3 inch) Touch Pane
