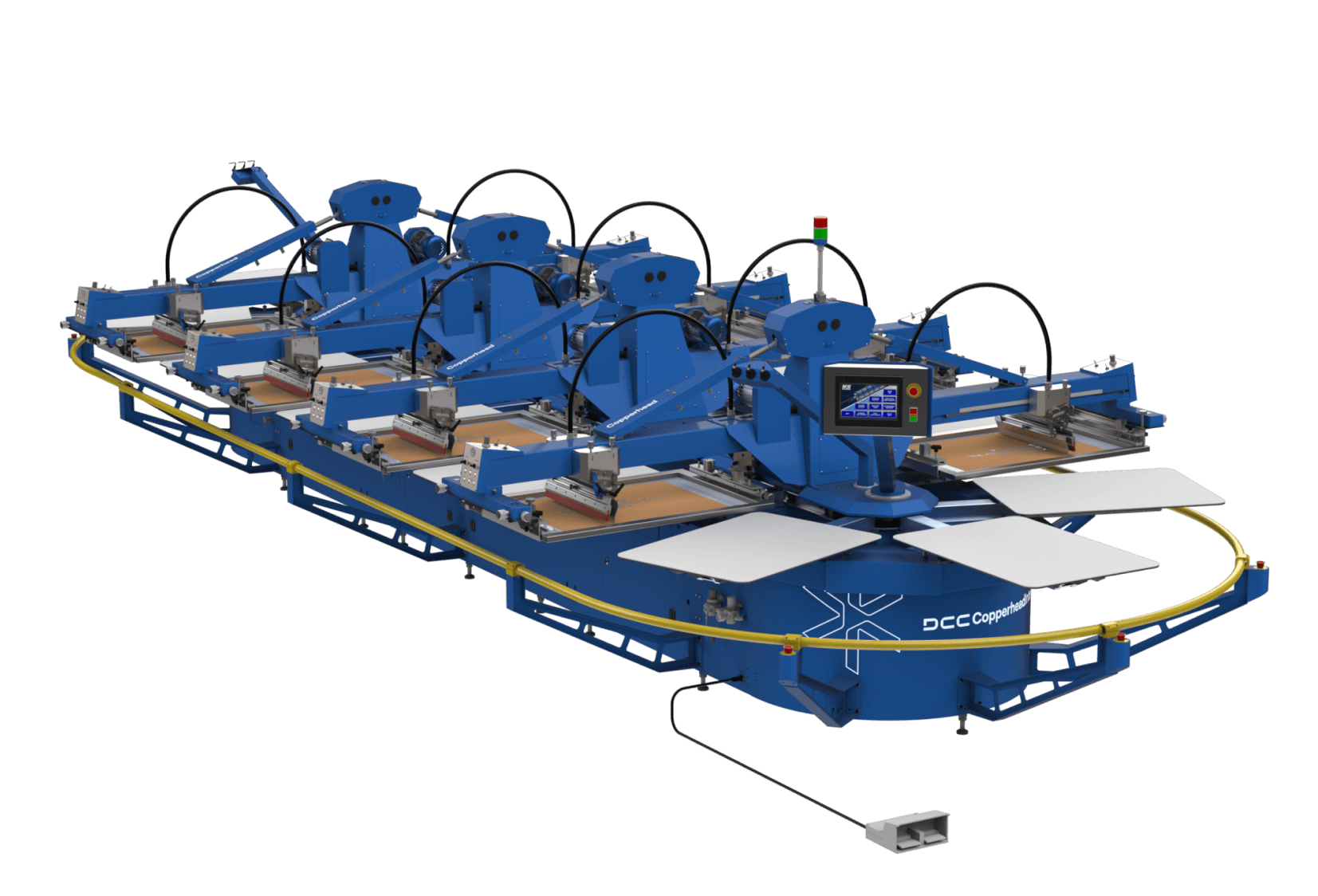

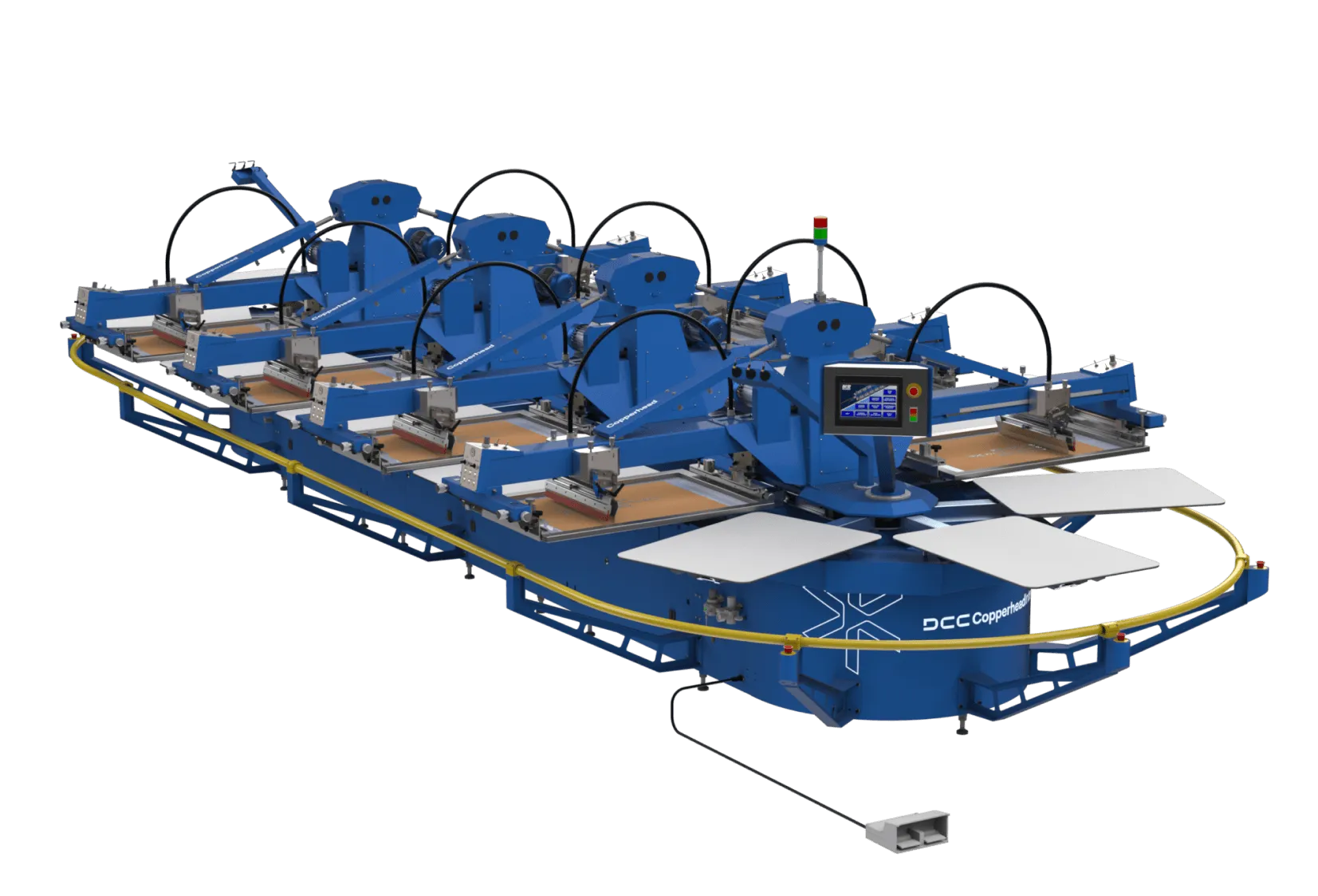

The Intel comes in a standard Print/Flash/Print (PFP) configuration. It is modifiable up to 64 station configurations to accommodate different printing and flashing needs.
Specifications
INTEL 5070 20/8
INTEL 5070 28/12
INTEL 5070 32/14
INTEL 5070 40/18
INTEL 5070 44/20
INTEL 5070 52/24
INTEL 5070 56/26
INTEL 5070 64/30
Air @ 7 Bar ( 102 psi)1
530l/min (18.7 cfm)
770 l/min (27.2 cfm)
890 l/min (31.4 cfm)
1130 l/min (39.9 cfm)
1370 l/min (48.4 cfm)
1610 l/min (56.9 cfm)
1850 l/min (65.3 cfm)
2090 l/min (73.8 cfm)
Electrical Requirements2,3
380-415 V, 3 ph, 11.5 A, 50 Hz, 4.75kW
208-230 V, 3 ph, 15 A, 50/60 Hz, 4.75kW
380-415 V, 3 ph, 16.5 A,50 Hz, 6.25kW
208-230 V, 3 ph, 20 A, 50/60 Hz, 6.25kW
380-415 V, 3 ph, 16.5 A, 50 Hz, 7kW
208-230 V, 3 ph, 22 A, 50/60 Hz, 7kW
380-415 V, 3 ph, 21 A, 50 Hz, 8.5kW
208-230 V, 3 ph, 27 A, 50/60 Hz, 8.5kW
380-415 V, 3 ph, 21 A, 50 Hz, 9.25kW
208-230 V, 3 ph, 29.5 A, 50/60 Hz, 9.25kW
380-415 V, 3 ph, 24.5 A, 50 Hz, 10.75kW
208-230 V, 3 ph, 34 A, 50/60 Hz, 10.75kW
380-415 V, 3 ph, 24.5 A, 50 Hz, 11.5kW 208-230 V, 3 ph, 36.5 A, 50/60 Hz, 11.5kW
380-415 V, 3 ph, 29 A, 50 Hz, 13kW
208-230 V, 3 ph, 41 A, 50/60 Hz, 13kW
Standard Image Size
50 x 70 cm (20" x 28")
50 x 70 cm (20" x 28")
50 x 70 cm (20" x 28")
50 x 70 cm (20" x 28")
50 x 70 cm (20" x 28")
50 x 70 cm (20" x 28")
50 x 70 cm (20" x 28")
50 x 70 cm (20" x 28")
Standard Pallet Size
60 x 89 cm (23.5” x 35”)
60 x 89 cm (23.5” x 35”)
60 x 89 cm (23.5” x 35”)
60 x 89 cm (23.5” x 35”)
60 x 89 cm (23.5” x 35”)
60 x 89 cm (23.5” x 35”)
60 x 89 cm (23.5” x 35”)
60 x 89 cm (23.5” x 35”)
Standard Frame Size (OD)
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
Maximum Image Size (Double Index)
91 x 70 cm (36" x 28")
91 x 70 cm (36" x 28")
91 x 70 cm (36" x 28")
91 x 70 cm (36" x 28")
91 x 70 cm (36" x 28")
91 x 70 cm (36" x 28")
91 x 70 cm (36" x 28")
91 x 70 cm (36" x 28")
Maximum Pallet Size (Double Index)
96 x 89 cm (38” x 35”)
96 x 89 cm (38” x 35”)
96 x 89 cm (38” x 35”)
96 x 89 cm (38” x 35”)
96 x 89 cm (38” x 35”)
96 x 89 cm (38” x 35”)
96 x 89 cm (38” x 35”)
96 x 89 cm (38” x 35”)
Maximum Frame Size (Double Index)
112 x 109 cm (44" x 43")
112 x 109 cm (44" x 43")
112 x 109 cm (44" x 43")
112 x 109 cm (44" x 43")
112 x 109 cm (44" x 43")
112 x 109 cm (44" x 43")
112 x 109 cm (44" x 43")
112 x 109 cm (44" x 43")
Overall Size (L x W x H)
864 x 358 x 209 cm (340" x 141" x 82.3")
1162 x 358 x 209 cm (457.3" x 141" x 82.3")
1311 x 358 x 209 cm (516" x 141" x 82.3")
1609 x 358 x 209 cm (633.5" x 141" x 82.3")
1758 x 358 x 209 cm (692.3" x 141" x 82.3")
2057 x 358 x 209 cm (809.8" x 141" x 82.3")
2206 x 358 x 209 cm (868.5" x 141" x 82.3")
2504 x 358 x 209 cm (986" x 141" x 82.3")
Stations/Colors
20/8
28/12
32/14
40/18
44/20
52/24
56/26
64/30
1Consumption @ 12.5 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
