Width: 51 cm (10 inches)
Height: 71 cm (28 inches)
PALLET
Width: 56 cm (22 inches)
Height: 89 cm (35 inches)
SCREEN
Width: 66 cm (26 inches)
Height: 109 cm (43 inches)
PRINTING SPEED
100 Pieces/h

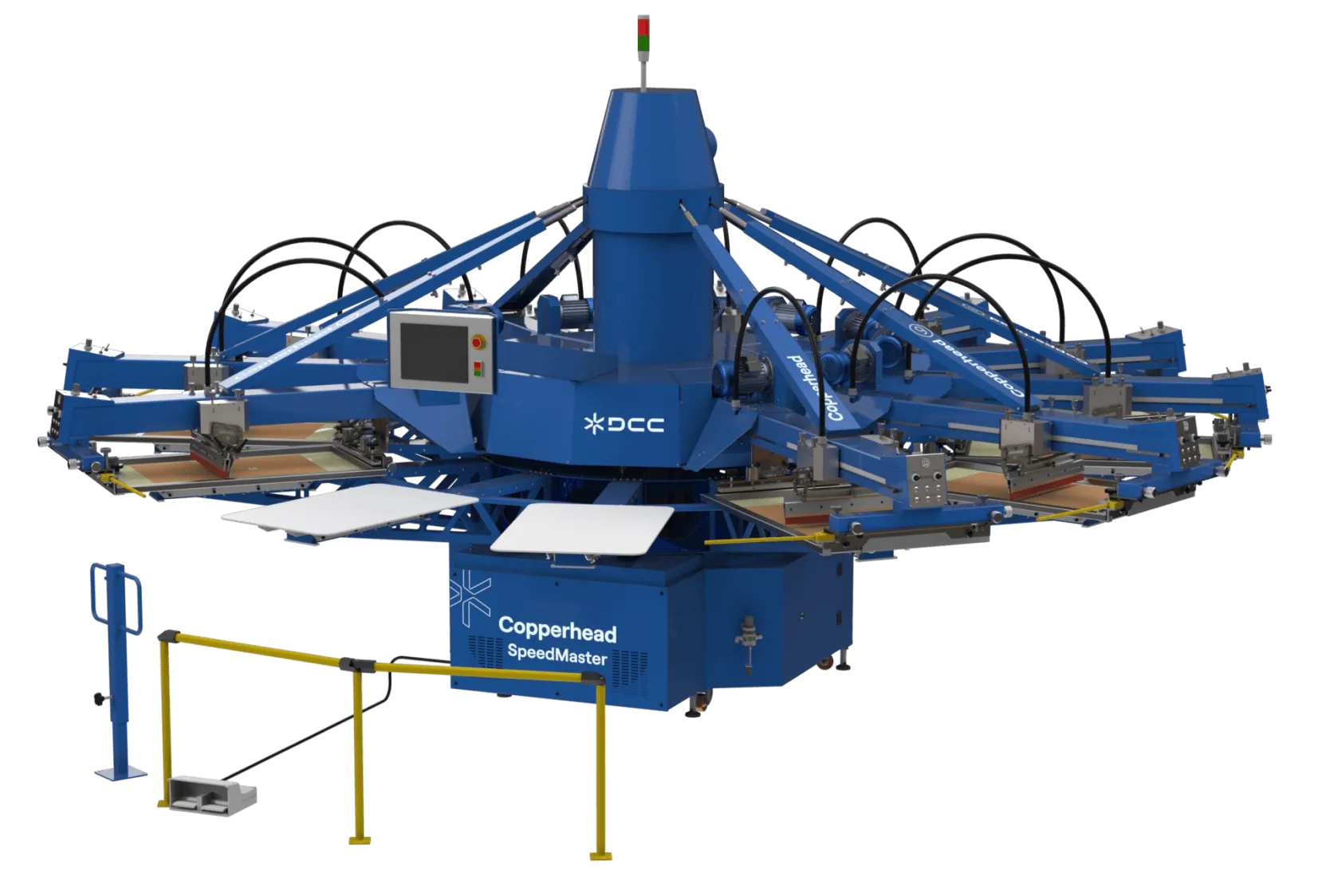

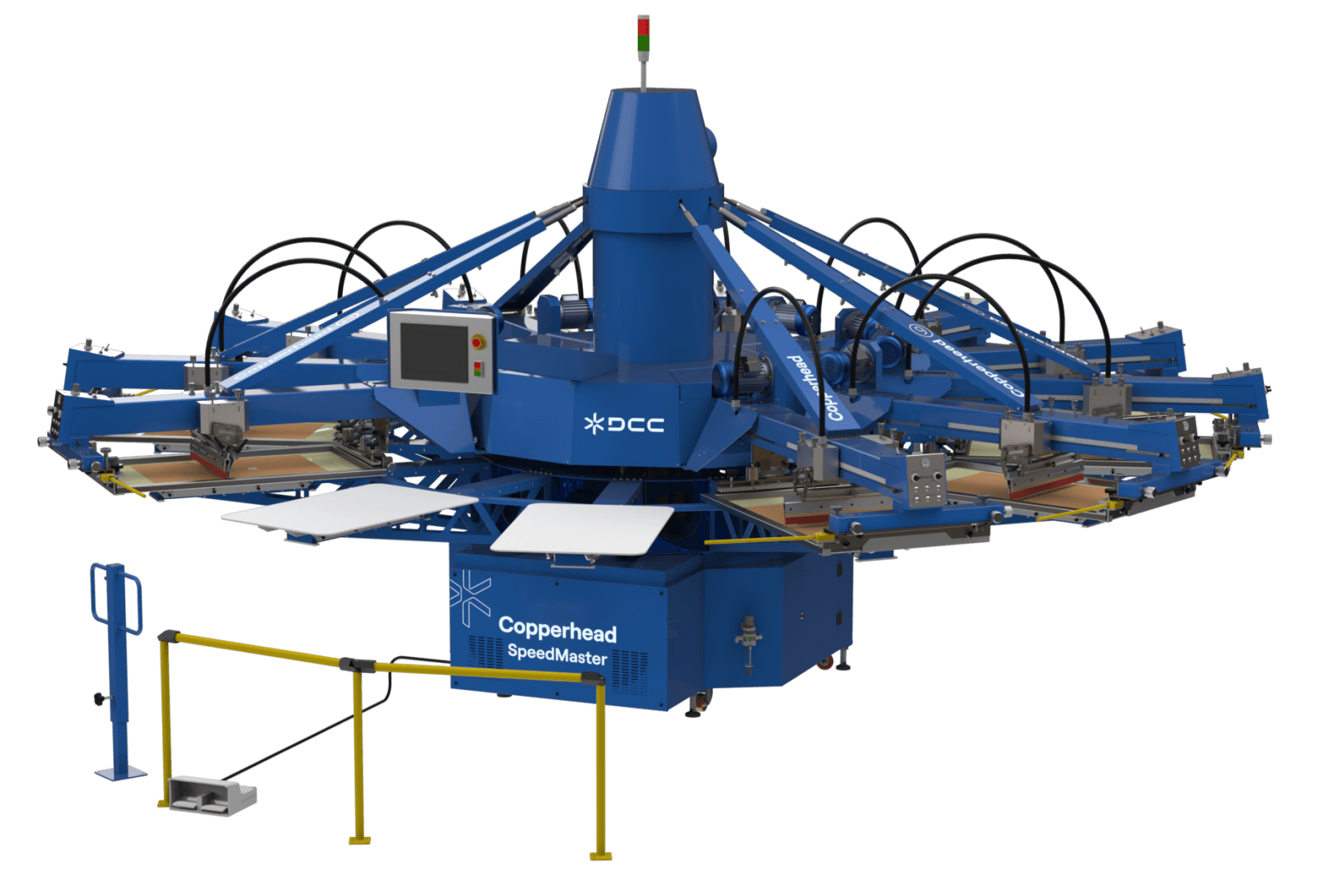

Speedmaster
Applications We Power
Built for pace.
Engineered for control.
Speedmaster is designed from the ground up for maximum speed, control, and reliability. Every element—from servo-driven motion to intuitive digital controls - works together to deliver consistent registration and high-quality prints at industrial scale. With smart features that minimize setup time and enhance productivity, the Speedmaster keeps your operation running smoothly, shift after shift.
Smart Lube Technology: Automatically lubricates components for longer service life
Integrated HMI: Monitors oil levels and streamlines maintenance
Lightweight aluminum pallets with soft-top pads reduce heat buildup
High-speed servo index ensures short cycles with precise registration
.svg)
Station-level pressure and flood control for exact adjustments
Programmable flash dwell for consistent curing of heavy whites and effects
Squeegee Pressure Equalizer System for uniform ink deposit
PinPoint registration for faster setup and dependable accuracy
Technical specifications
Configuration
SPEEDMASTER 12/10
SPEEDMASTER 14/12
SPEEDMASTER 18/16
SPEEDMASTER 20/18
Air @ 8.5 Bar (123 psi)
610 l/min (21.6 cfm)
710 l/min (25 cfm)
910 l/min (32.1 cfm)
1020 l/min (36.0 cfm)
Electrical Requirements
208–230 V, 3 ph, 21 A, 50/60 Hz, 6.75 kW 380–415 V, 3 ph, 14.5 A, 50 Hz, 6.75 kW (CE)
208–230 V, 3 ph, 24 A, 50/60 Hz, 7.5 kW 380–415 V, 3 ph, 16.5 A, 50 Hz, 7.5 kW (CE)
208–230 V, 3 ph, 30 A, 50/60 Hz, 9.5 kW 380–415 V, 3 ph, 21.5 A, 50 Hz, 9.5 kW (CE)
208–230 V, 3 ph, 34 A, 50/60 Hz, 10.25 kW 380–415 V, 3 ph, 23.5 A, 50 Hz, 10.25 kW (CE)
Diameter
523 cm (206")
574 cm (226")
646 cm (254.5")
693 cm (273")
Standard Frame Size
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
Maximum Frame Size
107 x 109 cm (42" x 43")
107 x 109 cm (42" x 43")
86 x 135 cm (34" x 53")
86 x 135 cm (34" x 53")
Standard Image Area
51 x 71 cm (20" x 28")
51 x 71 cm (20" x 28")
51 x 71 cm (20" x 28")
51 x 71 cm (20" x 28")
