ML-32000
Applications
Overview
Specification
Print Applications
Baby Garments
Socks
.webp)
Tagless Neck Label
Swimming Cap
Versatility with outstanding productivity and quality

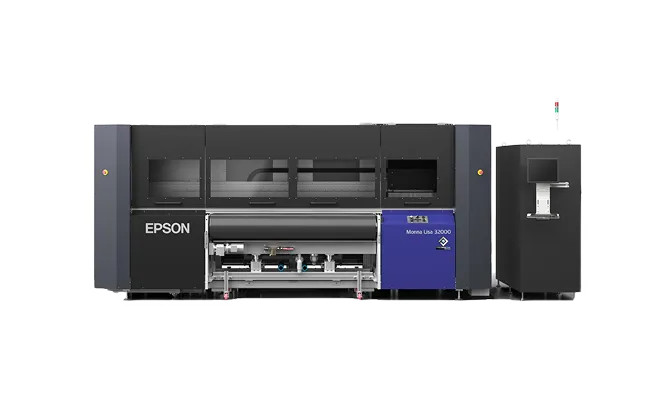

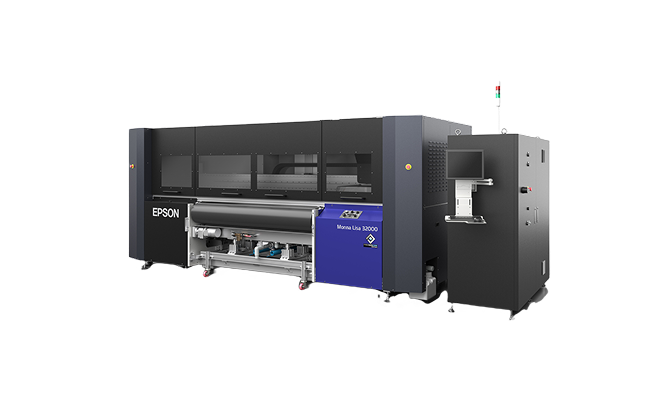

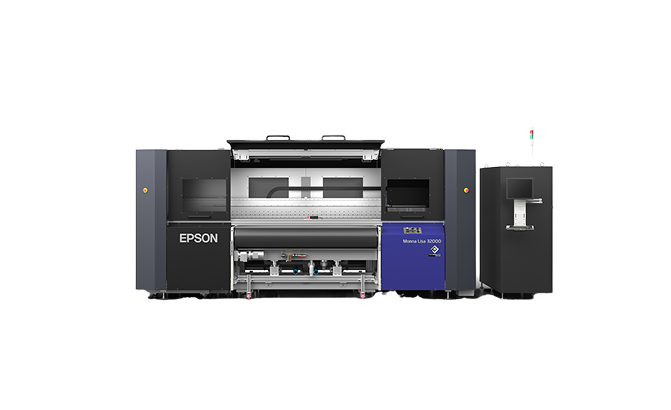

Equipped with Epson's PrecisionCore Micro TFP Printheads, the ML- 32000 Direct-to-Fabric (DTF) printer brings unprecedented quality and speed, with superb reproduction of colour gradations, fine details, and complex geometric patterns. Designed to bring the highest colour consistency and versatility, the ML- 32000 changes the rules of the game with Epson's unique Symmetrical Colour Alignment Technology and a choice of a dual ink 8+8 colour channel configuration to suit your production needs.
32 Printheads for high productivity
Industrial Direct-to-Fabric pinter with high capacity 10 litre ink catridges
Excellent quality prints with Precision Dot Technology
Uniform dot density with Dynamic Alignment Stabiliser (DAS) Technology
.svg)
Advanced precision fabric feeding with Accurate Belt Position Control (ABPC) Technology
Environmentally friendly Epson GENESTA Ink
Technical specifications
Specifications
ML-8000
ML-64000
ML-32000
Evo Tre 16
Printing Technology
PrecisionCore inkjet technology
Number of Print Head
8
64
32
16
Gradation process
Variable-Sized Droplet Technology
Max fabric thickness
Up to 5.0 mm
Up to 10 mm
Max print width
1,850 mm
1,800 mm
1,800 / 2,400 / 3,400 mm (71 / 94 / 133 in)
1,800 / 2,400 mm (71 / 94 in)
Max fabric width
1,850 mm
1,800 mm
1,800 / 2,400 / 3,400 mm (71 / 94 / 133 in)
1,800 / 2,400 mm (71 / 94 in)
GENESTA Ink
Reactive
Black, Cyan, Magenta, Yellow, Grey, Red, Blue, Orange, Crimson, Across (Ink penetration liquid)
Disperse
Black, Cyan, Magenta, Yellow, Grey, Red, Blue, Orange, Across (Ink penetration liquid)
Acid
Black, Cyan, Magenta, Yellow, Grey, Red, Blue, Cobalt, Orange, Rubine, Fluorescent Flavine, Flourescent Pink, Across (Ink penetration liquid)
Pigment
Black, Cyan, Magenta, Yellow, Grey, Red, Green, Orange
INK Capacity
10 liters
Print Speed (Square)*1
300 × 600 dpi, 1 pass
312 (m²/h) (Reactive/Pigment)
279 (m²/h) (Acid/Disperse) *2
697 (m²/h) *5
417 (m²/h) *5
600 × 600 dpi, 2 pass
162 (m²/h) (Reactive/Pigment) 144 (m²/h) (Acid/Disperse) *3
774 (m²/h)
423 (m²/h) *5
236 (m²/h) *5
900 × 600 dpi, 3 pass
108 (m²/h) (Reactive/Pigment)
96 (m²/h) (Acid/Disperse) *4
567 (m²/h)
305 (m²/h) *5
158 (m²/h) *5
Fabric Handling
Fabric Drive
Conveyer belt with thermoplastic adhesive
Conveyer belt with thermoplastic adhesive
Conveyer belt with adhesive
Belt Washing
Automatic
Standard Feeder
Fabric Roll Diameter
400 mm (15.7 in)
-
300 mm (11.8 in)
Fabric Roll Weight
100 kg (220 lb)
-
100 kg (220 lb)
Fabric Roll Core Diameter
2" or 3" (ML-32000-340 : 3" only)
-
2" or 3" (ML-32000-340 : 3" only)
Environmental Characteristics
Temperature
Operating: 20°C - 30°C, Recommended: 22°C - 28°C (Operating: 68°F - 86°F, Recommended: 72°F - 82°F)
Humidity
Operating: 40 - 60%RH (no condensation)
Dimensions
Printer
3,700 (W) x 2,690 (D) x 1,830 (H) (mm)
146 (W) x 106 (D) x 72 (H) (in)
6,500 (W) x 4,960 (D) x 2,530 (H) (mm)
256 (W) x 195 (D) x 100 (H) (in)
4,610 (W) x 2,500 (D) x 2,070 (H) (mm) *5
181 (W) x 98 (D) x 81 (H) (in)
4,610 (W) x 2,500 (D) x 2,070 (H) (mm) *5
181 (W) x 98 (D) x 81 (H) (in)
Control Box
-
1,600 (W) x 1,200 (D) x 2,640 (H) (mm)
63 (W) x 47 (D) x 104 (H) (in)
660 (W) x 1,500 (D) x 2,290 (H) (mm) *5
26 (W) x 59 (D) x 90 (H) (in)
480 (W) x 1,210 (D) x 1,920 (H) (mm) *5
19 (W) × 48 (D) × 76 (H) (in)
Ink Rack
880 (W) x 960 (D) x 790 (H) (mm)
35 (W) x 38 (D) x 31 (H) (in)
1,760 (W) x 960 (D) x 840 (H) (mm)
69 (W) x 38 (D) x 33 (H) (in)
Internal Ink Rack
1,240 (W) × 1,300 (D) × 1,220 (H) mm
49 (W) × 51 (D) × 48 (H) (in)
Weight
Printer
Approx. 2,150 kg (4,740 lb)
Approx. 7,000 kg (15,432 lb)
Approx. 3,900 kg (8,598 lb) *5
Approx. 3,700 kg (8,157 lb) *5
Control Box
-
Approx. 700 kg (1,543 lb)
Approx. 400 kg (882 lb)
Approx. 330 kg (728 lb)
Ink Rack
Approx. 110 kg (243 lb)
Approx. 300 kg (661 lb)
Approx. 240 kg (529 lb)
Approx. 260 kg (573 lb)
Electrical (Main unit)
Voltage
380 - 415 V, 3phase + Neutral + Earth,
50 Hz/60 Hz
400 V, 3phase + Neutral + Earth,
50 Hz/60 Hz
Rated Current
20 A
30 A
30 A
50 A
Apparent Power (Operating)
14.4 kVA
20.7 kVA
20.7 kVA
20.7 kVA
Network
Transmission speed
USB3.0 Ethernet 1000BASE-T
1000BASE-T (recommended)
100BASE-TX or more (recommended)
Note
Printing width: 1500 mm, Printing mode: bidirectional. Printing speeds vary depending on such factors as image printed, firmware version, operating state of PC and print settings.
With 300 x 300 dpi 2 Half Tone layers.
With 300 x 300 dpi 4 Half Tone layers.
With 300 x 300 dpi 6 Half Tone layers.
Printable Area and Accuracy:
Maximum Printable Length:Unlimited
Maximum Printable Width:1,800 mm (71”)
Max. Fabric Width:1,800 mm (71”)
Roll Media Handling:
Maximum Roll Diameter:400mm / 15.7"
Maximum Roll Weight:100kg
Media Thickness:5mm
Printer Details:
Belt Washing: Automatic
Fabric Type:
Max. Fabric Thickness: 5.0mm
Fabric Drive: Conveyor belt with thermoplastic adhesive
Weight: Approx. 3,900kg
Air Consumption:
Air Pressure: 0.45 Mpa; Tube Connection: φ8 mm
Ventilation:
Air Flow: Min.900 m3/h
Air Tube Connection: φ125 mm
Water Consumption:
Water Connection: Connect with a φ15 mm (int.diam) pipe; Water Pressure: Max. 0.8 Mpa (8 Bar); Water Flow: Min. 50 L/h, Max. 150 L/h
Water Drain Connector: Connect with a φ25 mm (int.diam) pipe
Display:22.82cm (9-INCH) LCD Touch Panel
Other Features:
Printing Speed: Square: Max. 290 (300x600 dpi, 1 pass) *1; Linear: 193 (300 x 600 dpi, 1 pass)1 / 634 (300 x 600 dpi, 1 pass)2
Typical Printing Speed: Square: Maximum Printing Speed (m2/h) 697 (300 x 600 dpi, 1 Pass); Typical Printing Speed 1 (m2/h) 423 (600 x 600 dpi, 2 Pass); Typical Printing Speed 2 (m2/h) 305 (900 x 600 dpi, 3 Pass); Maximum Printing Speed (sq ft/hr) 7,502 (300 x 600 dpi, 1 Pass); Typical Printing Speed 1 (sq ft/hr) 4,553 (600 x 600 dpi, 2 Pass); Typical Printing Speed 2 (sq ft/hr) 3,283 (900 x 600 dpi, 3 Pass)Linear: Maximum Printing Speed (lmt/h) 465 (300 x 600 dpi, 1 Pass); Typical Printing Speed 1 (lmt/h) 282 (600 x 600 dpi, 2 Pass); Typical Printing Speed 2 (lmt/h) 203 (900 x 600 dpi, 3 Pass); Maximum Printing Speed (li ft/hr) 1,524 (300 x 600 dpi, 1 Pass); Typical Printing Speed 1 (li ft/hr) 925 (600 x 600 dpi, 2 Pass); Typical Printing Speed 2 (li ft/hr) 667 (900 x 600 dpi, 3 Pass)
Printing Technology: PrecisionCore inkjet technology
Number of Print Head: 32
Number of Colour: 8
Print Resolution:1,200 x 1,200 dpi (Pigment), 1,200 x 600 dpi (Reactive, Acid, Disperse)
