250
PRINTS PER HOUR
1
OPERATOR REQUIRED
CMYK + OG
Color Channels
2
In-Line PreTreat Stations for Light & Dark
36
Printheads
Chroma
S-45500
Push boundaries with an astonishing printing speed of up to 375 m2/hr, designed to handle large-scale production requirements without compromising on quality. Experience unmatched precision, setting new benchmarks for efficiency.
Speed Meets Scalability
01
Controls at your fingertips
Touchscreen and intuitive user interface for quick setup, adjustments, and monitoring, allowing you to focus more on printing.
02

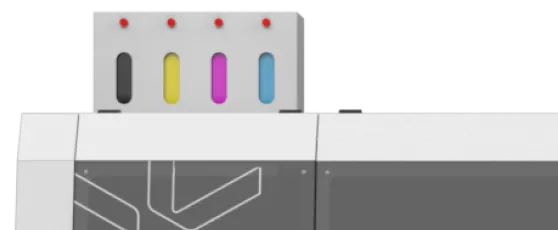

Know before you run low
The built-in individual audio and visual low-ink alarms for each of the 4 ink tanks ensure that you are always informed about ink levels.
03

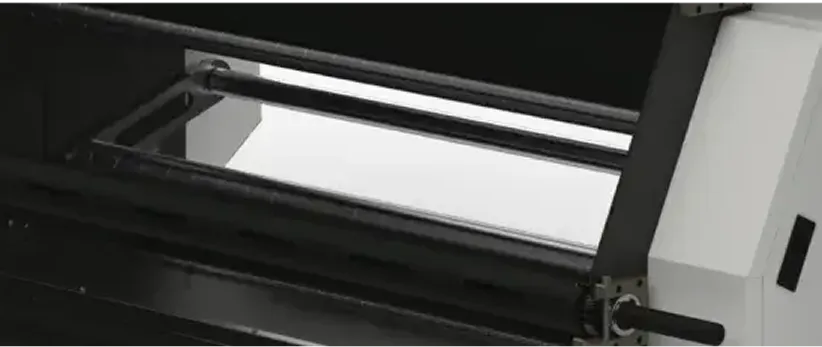

Precise paper handling
Supports up to 18" rolls to reduce changes, cut setup time, and boost high-volume efficiency.
Neo
Chroma
S-45350+ Pro
Push boundaries with an astonishing printing speed of up to 365 m²/hr, designed to handle large-scale production requirements without compromising on quality. Experience unmatched precision, setting new benchmarks for efficiency.
01

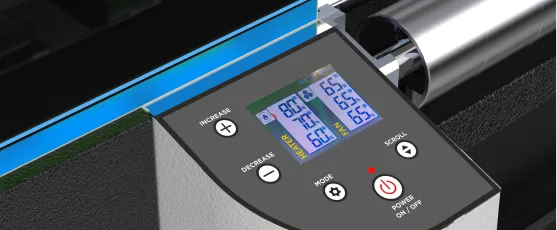

Low in Power Consumption, High in Performance
The intelligently designed curing system ensures optimal drying while reducing power consumption by up to ~12%, all controlled from a single panel for effortless setup.
02
Vibration-Free Performance with Solid Core Technology
Stability redefined with single-structure Cold-Rolled High Tensile Steel
03

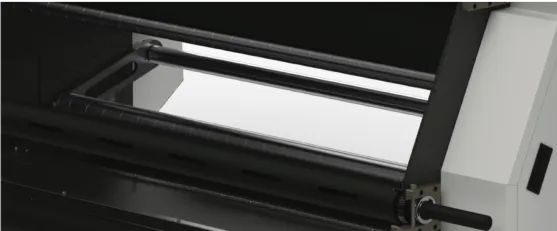

Maximum Output, Minimum Setup Time
18” diameter roll ensuring maximum efficiency and reducing setup time

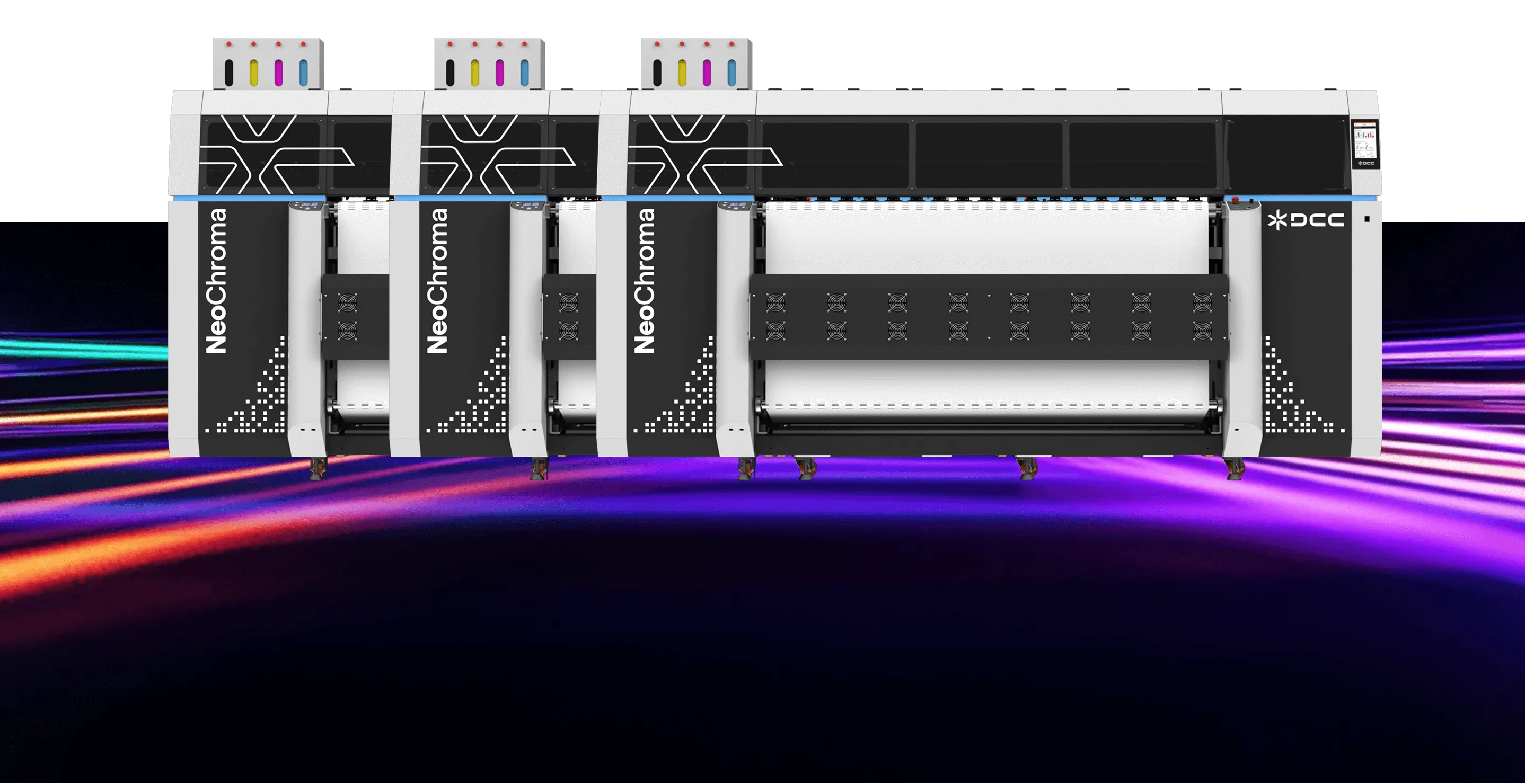

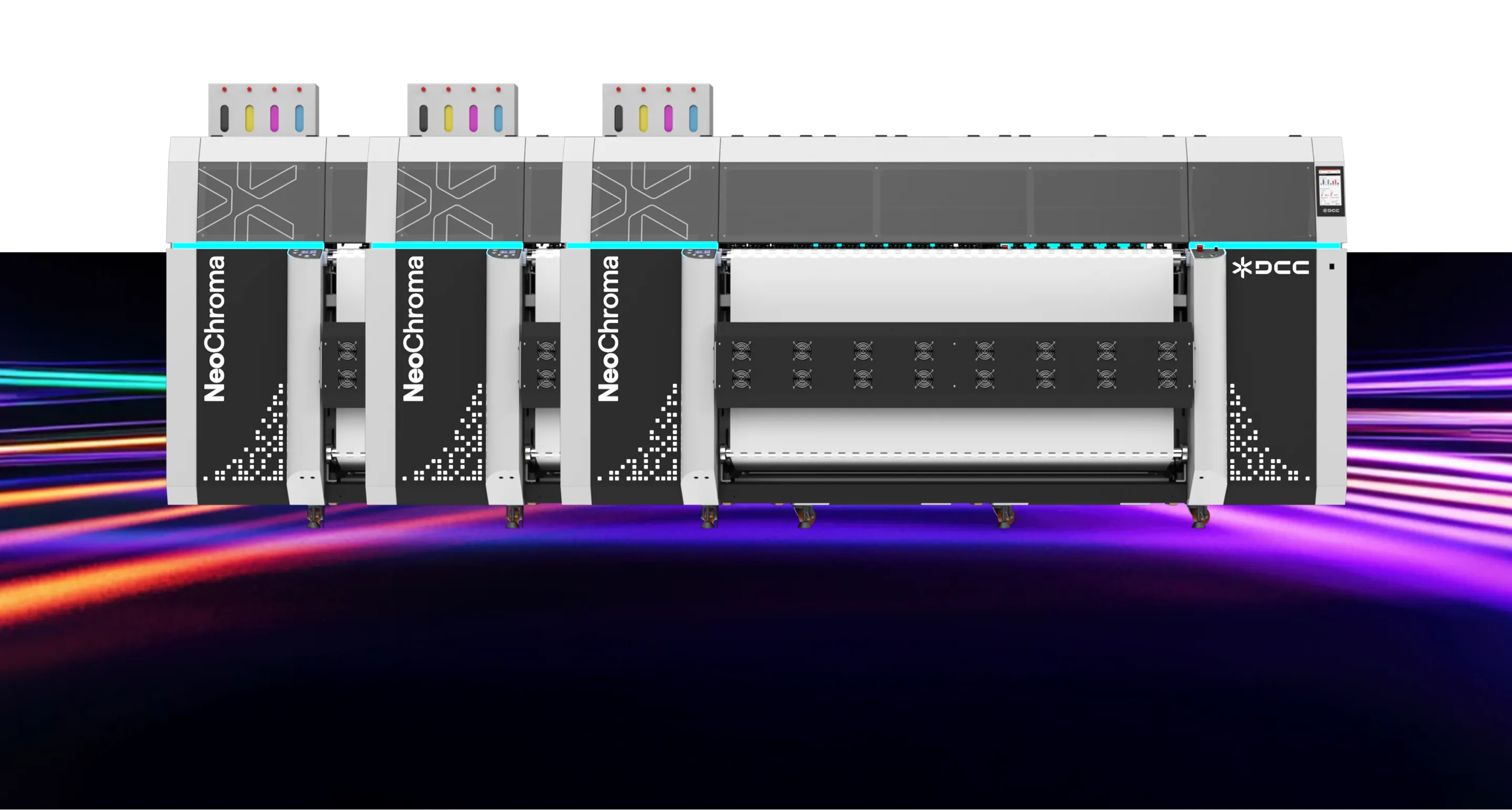

The Upgrade Path
188 m2/hr
279 m2/hr
365.5 m2/hr
Field-upgradeable technology: You can begin with a single printer and seamlessly enhance its capabilities as your production needs expand, without having to invest in an entirely new system.
When you invest in the NeoChroma S Series, you’re investing in flexibility. A platform designed to grow with your production needs and easily upgrade as your business expands.
SolidCore Technology
Lower power consumption
Higher
Printing Speed
Wide
Specifications
S-45350+ Pro
S-45450+ Pro
S-45500 Pro
Print Head
Epson I3200 A1 Print Heads
Epson I3200 A1 Print Heads
Epson I3200 A1 Print Heads
Print Resolution and Speed
360 x 1200 dpi (1 Pass) – 188 m2/hr (2023 sq.ft/hr)
360 x 1200 dpi (1.6 Pass) – 121.7 m2/hr (1310 sq.ft/hr)
360 x 1200 dpi (2 Pass) – 88.5 m2/hr (952.6 sq.ft/hr)
360 x 1200 dpi (1 Pass) – 279 m2/hr (3003 sq.ft/hr)
360 x 1200 dpi (1.6 Pass) – 181 m2/hr (1948.2 sq.ft/hr)
360 x 1200 dpi (2 Pass) – 131.2 m2/hr (1412.2 sq.ft/hr)
360 x 1200 dpi (1 Pass) – 365.5 m2/hr (3934 sq.ft/hr)
360 x 1200 dpi (1.6 Pass) – 238 m2/hr (2562 sq.ft/hr)
360 x 1200 dpi (2 Pass) – 173 m2/hr (1862 sq.ft/hr)
Acceptable Media
Width: 1905 mm (75")
Thickness: Min. 30 gsm
Outer Diameter: 460 mm (18")
Roll Length: 3000mtrs. (9850 ft.)
Ink System
Colour: CMYK
Ink Cartridges: 5L Main Ink Tanks + 1.8L Secondary Ink Tanks
Ink Curing
Intelligent Curing System
Interface
Gigabit Ethernet (GbE)
Power
Machine Power1,2: 2.2 kW; 208~230 VAC; 15A; 50/60 Hz
Heater Power1: 7 kW; 208~230 VAC; 39A; 50/60 Hz
Dimensions (Width X Depth X Height)
3400 mm (133.8”) x1725 mm (68”) x 1976 mm (77.8”)
Weight
980 kgs. (2160 lbs.)
Environment
Power On: Temp : 15° to 25°C (59° to 77° F) | Humidity : 35 to 80% (No Condensation)
Power Of: Temp : 5° to 40° C (41° to 104° F) | Humidity : 20 to 80% (No Condensation)
Accessories
Auto Moisturizing/Cleaning System; Auto/Manual Media Loading & Take-Up System; Intelligent Curing System; Auto Paper Release & Press System; Low-Ink Alarm System; Double Air- Shaft; Wrinkle Removal & Tensioner Roller
1General usage may vary, but will be significantly less than stated values.
2Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
*Fastest speed in 72" print category
