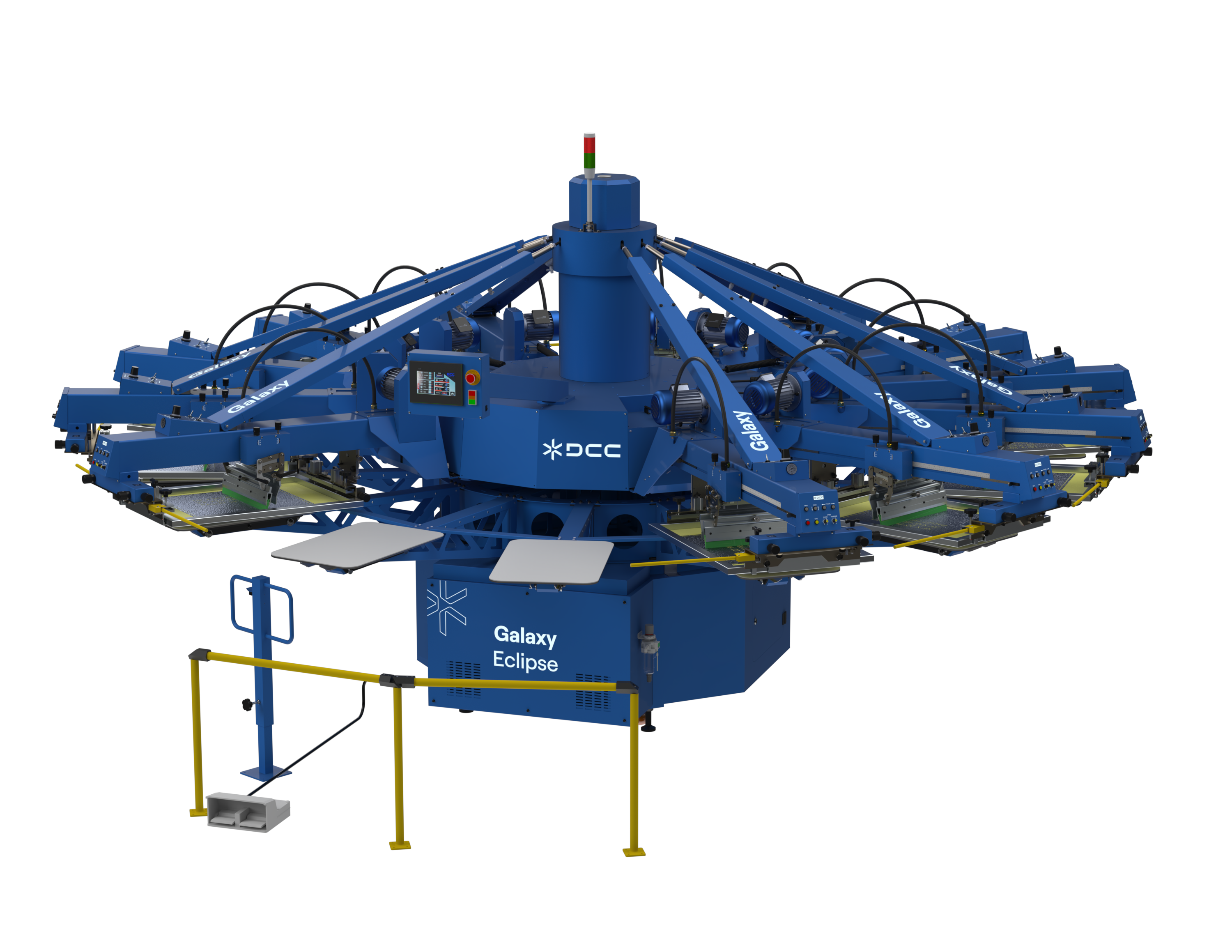

Engineered for consistent output, the Galaxy Eclipse delivers controlled speed, accurate registration, and stable print- ing across every job. It’s a dependable solution for growing print operations that need repeatability, flexibility, and clean results shift after shift. With solid aluminium pallets, a robust Geneva-based indexing system, and independent printhead controls, Eclipse is built to maintain accuracy even during continuous runs, helping operators stay productive without constant recalibration.

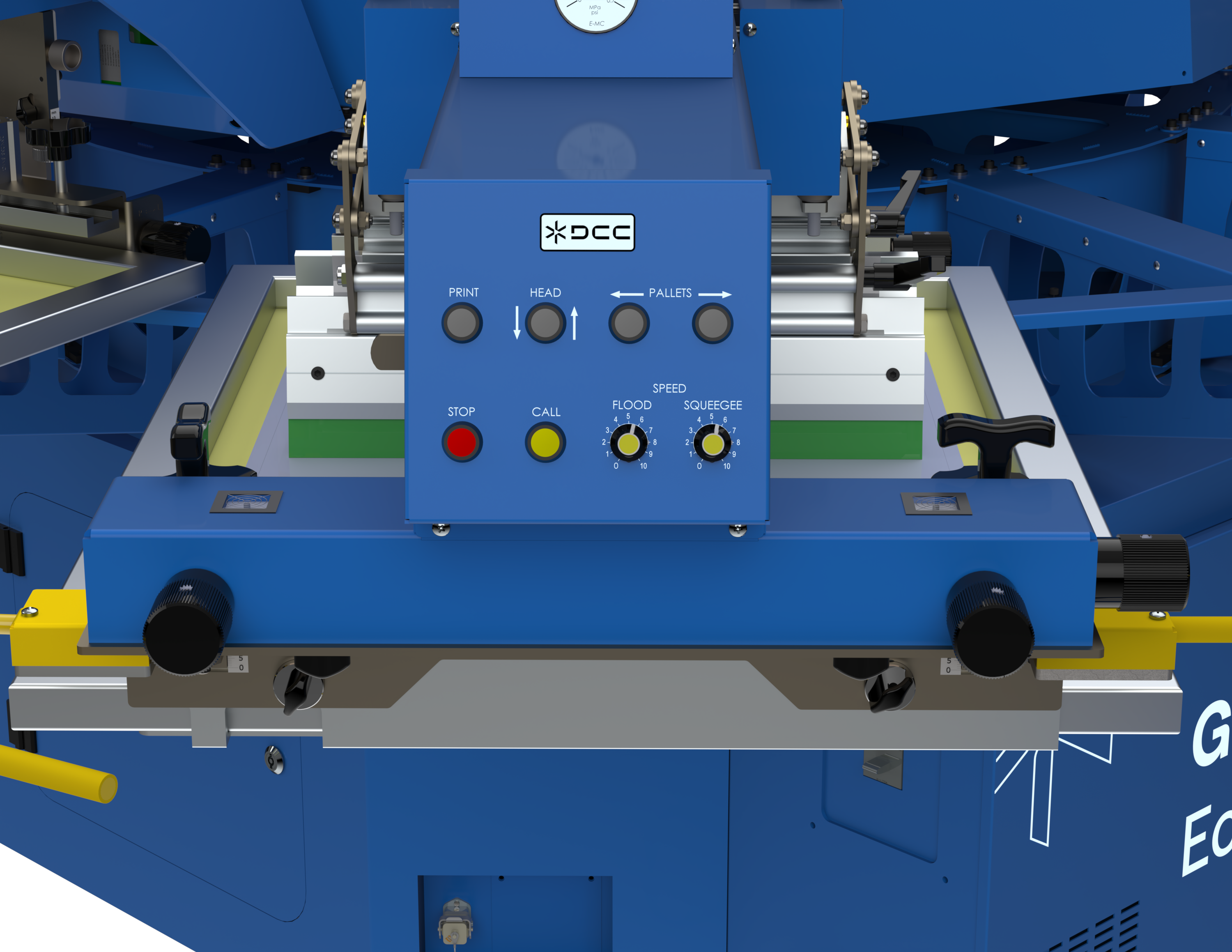

Powered by AC motor-driven printheads, tool-free adjustments, and an intuitive touchscreen interface, the Galaxy Eclipse blends mechanical strength with opera- tor-friendly design. Smart programs, visual guides, and built-in diagnostics keep setups quick, downtime low, and maintenance predictable, making it a press that’s easy to run and easy to trust.
Specifications
Galaxy Eclipse 8/6
Galaxy Eclipse 10/8
Galaxy Eclipse 12/10
Galaxy Eclipse 14/12
Air @ 7 Bar ( 102 psi)1
305 L/min (10.8 cfm)
345 L/min (12.2 cfm)
485 L/min (17.1 cfm)
396 L/min (14.0 cfm)
Electrical Requirements2,3
380-415 V, 3 ph, 7 A, 50 Hz, 3.25 kW
380-415 V, 3 ph, 10 A, 50 Hz, 4 kW
380-415 V, 3 ph, 10 A, 50 Hz, 4.75 kW
380-415 V, 3 ph, 14 A, 50 Hz, 5.5 kW
Diameter
391 cm (154")
416 cm (164”)
448 cm (176.3” )
472 cm (186” )
Maximum Frame Size
58 x 84 cm (23” x 33")
58 x 84 cm (23” x 33")
58 x 84 cm (23” x 33")
58 x 84 cm (23” x 33")
Maximum Frame Size
(Double Index- Skip Frame and Skip Pallet)
N/A
N/A
N/A
N/A
Maximum Image Area
41 x 51 cm (16” x 20”)
41 x 51 cm (16” x 20”)
41 x 51 cm (16” x 20”)
41 x 51 cm (16” x 20”)
Maximum Image Area
(Double Index - Skip Frame and Skip Pallet)
N/A
N/A
N/A
N/A
Machine Weight
1257 kg (2771 lb)
1592 kg (3510 lb)
1822 kg (4017 lb)
2350 kg (5181 lb)
Standard Pallet Size
41 x 55.9 cm (16” x 22”)
41 x 55.9 cm (16” x 22”)
41 x 55.9 cm (16” x 22”)
41 x 55.9 cm (16” x 22”)
Stations/Colors
8/6
10/8
12/10
14/12
