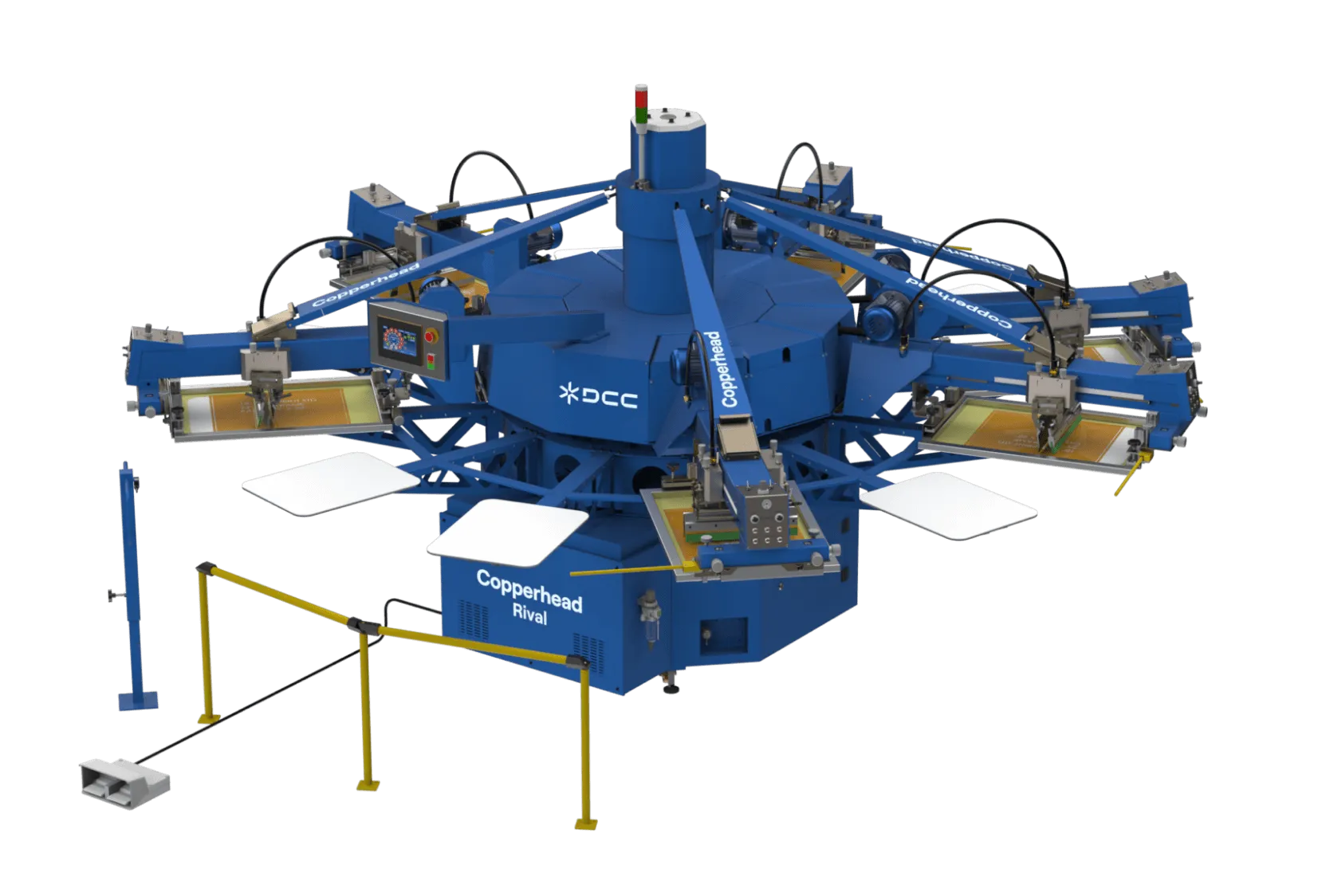

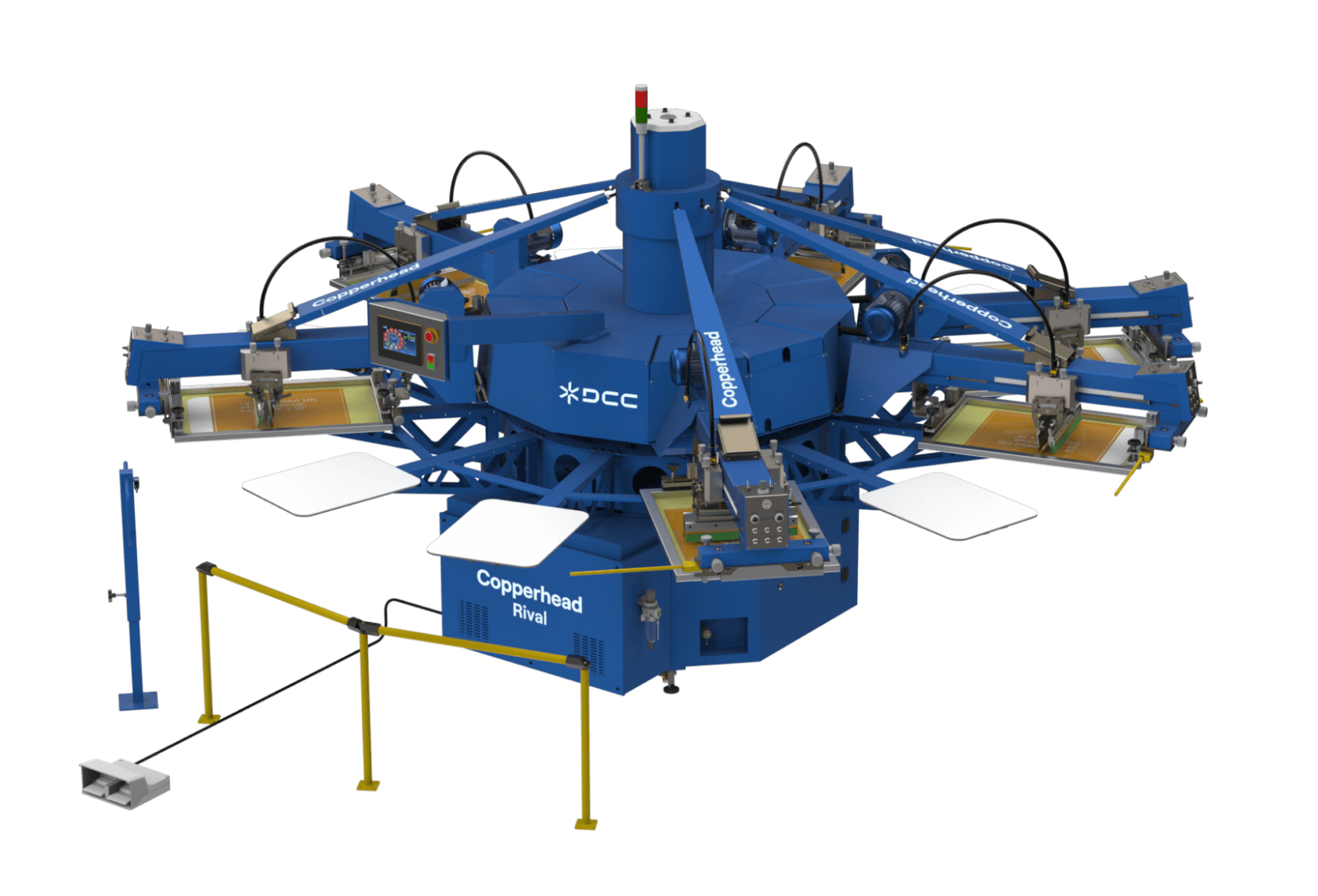

CopperheadRival

Rival

Applications Overview Specifications

Applications We Power

Unrivaled speed.
Reliable control.

Built for continuous production, the CopperheadRival delivers speed, consistency, and stability on every run. It’s the dependable choice for mid- to large-scale operations that demand both performance and value. With its servo-driven index, independent head control, and tool-free adjustments, the Rival combines industrial-grade reliability with smooth operation and ergonomic design—keeping productivity high and maintenance low.

Servo-driven index for quiet, precise motion

Independent head control for maximum flexibility

Tool-free squeegee and flood adjustments

Quick setup modes for fast job changeovers

Energy-efficient pneumatic systems for long-term performance

PRINT

Width: 41 cm (16 inches) 
Height: 51 cm (20 inches)

PALLET

Width: 41 cm (16 inches) 
Height: 64 cm (25 inches)

SCREEN

Width: 58 cm (23 inches) 
Height: 84 cm (33 inches)

PRINTING SPEED

1160 Pieces/h

Technical specifications

Configuration

RIVAL 8/6

RIVAL 10/8

RIVAL 12/10

RIVAL 14/12

Air @ 7 Bar (102 psi)

305 L/min (10.8 cfm)

345 L/min (12.2 cfm)

485 L/min (17.1 cfm)

396 L/min (14.0 cfm)

Electrical Requirements

208–230 V, 1 ph, 18 A, 50/60 Hz, 3.25 kW (UL/CE)
208–230 V, 3 ph, 10.5 A, 50/60 Hz, 3.25 kW (UL) 380–415 V, 3 ph, 7 A, 50 Hz, 3.25 kW (CE)

208–230 V, 1 ph, 22 A, 50/60 Hz, 4 kW (UL/CE) 208–230 V, 3 ph, 15 A, 50/60 Hz, 4 kW (UL) 380–415 V, 3 ph, 10 A, 50 Hz, 4 kW (CE)

208–230 V, 1 ph, 26 A, 50/60 Hz, 4.75 kW (UL/CE)
208–230 V, 3 ph, 15 A, 50/60 Hz, 4.75 kW (UL) 380–415 V, 3 ph, 10 A, 50 Hz, 4.75 kW (CE)

208–230 V, 1 ph, 30 A, 50/60 Hz, 5.5 kW (UL/CE)
208–230 V, 3 ph, 17.5 A, 50/60 Hz, 5.5 kW (UL) 380–415 V, 3 ph, 14 A, 50 Hz, 5.5 kW (CE)

Diameter

391 cm (154")

416 cm (164")

448 cm (176")

472 cm (185")

Standard Image Size

58 x 84 cm (23" x 33")

58 x 84 cm (23" x 33")

58 x 84 cm (23" x 33")

58 x 84 cm (23" x 33")

Maximum Image Area

46 x 51 cm (16" x 20")

46 x 51 cm (16" x 20")

46 x 51 cm (16" x 20")

46 x 51 cm (16" x 20")

Maximum Frame Area

41 × 51 cm (16" × 20")

41 × 51 cm (16" × 20")

41 × 51 cm (16" × 20")

41 × 51 cm (16" × 20")

DOWNLOAD PDF
