The Spicy Cure for New Flashing Options

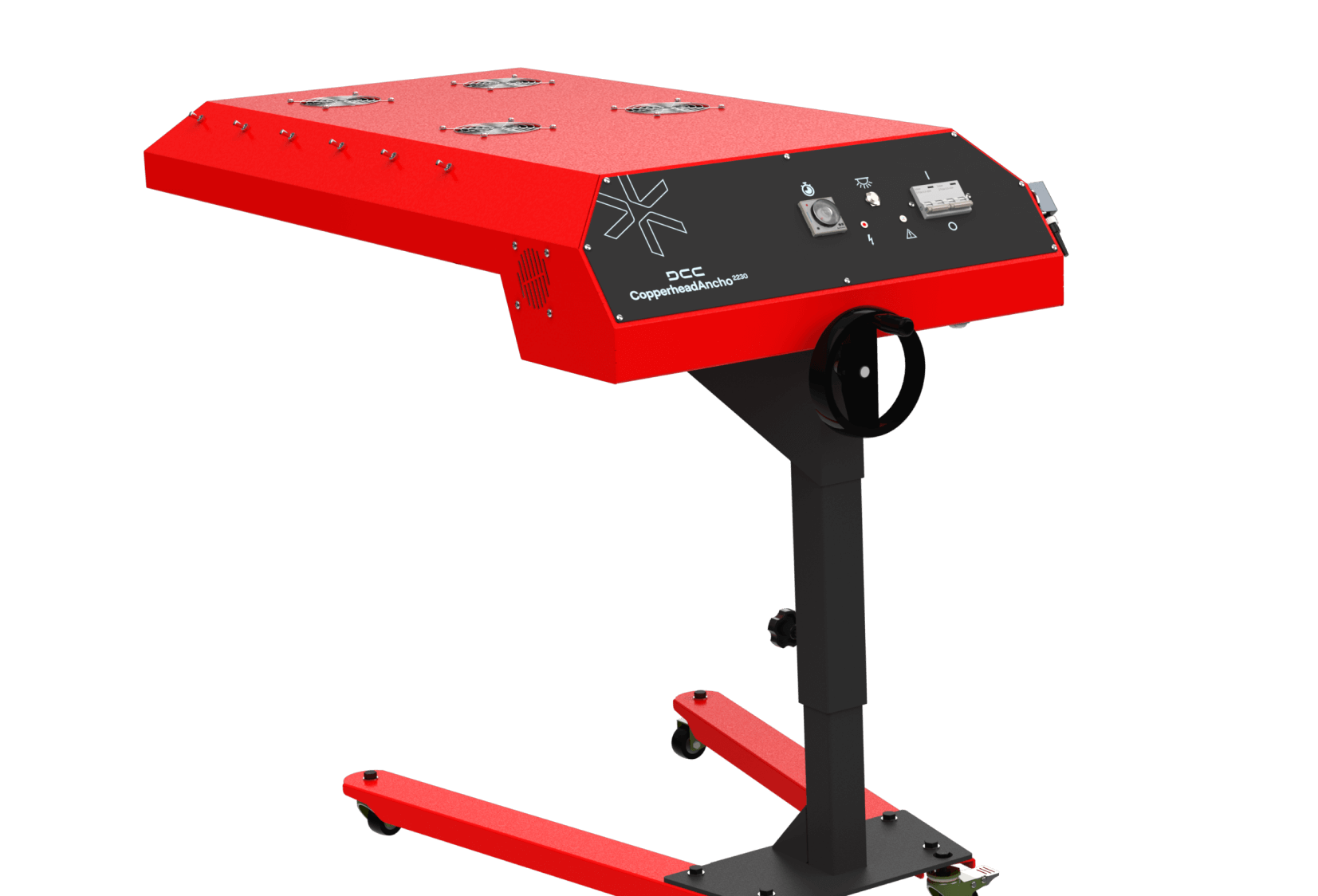

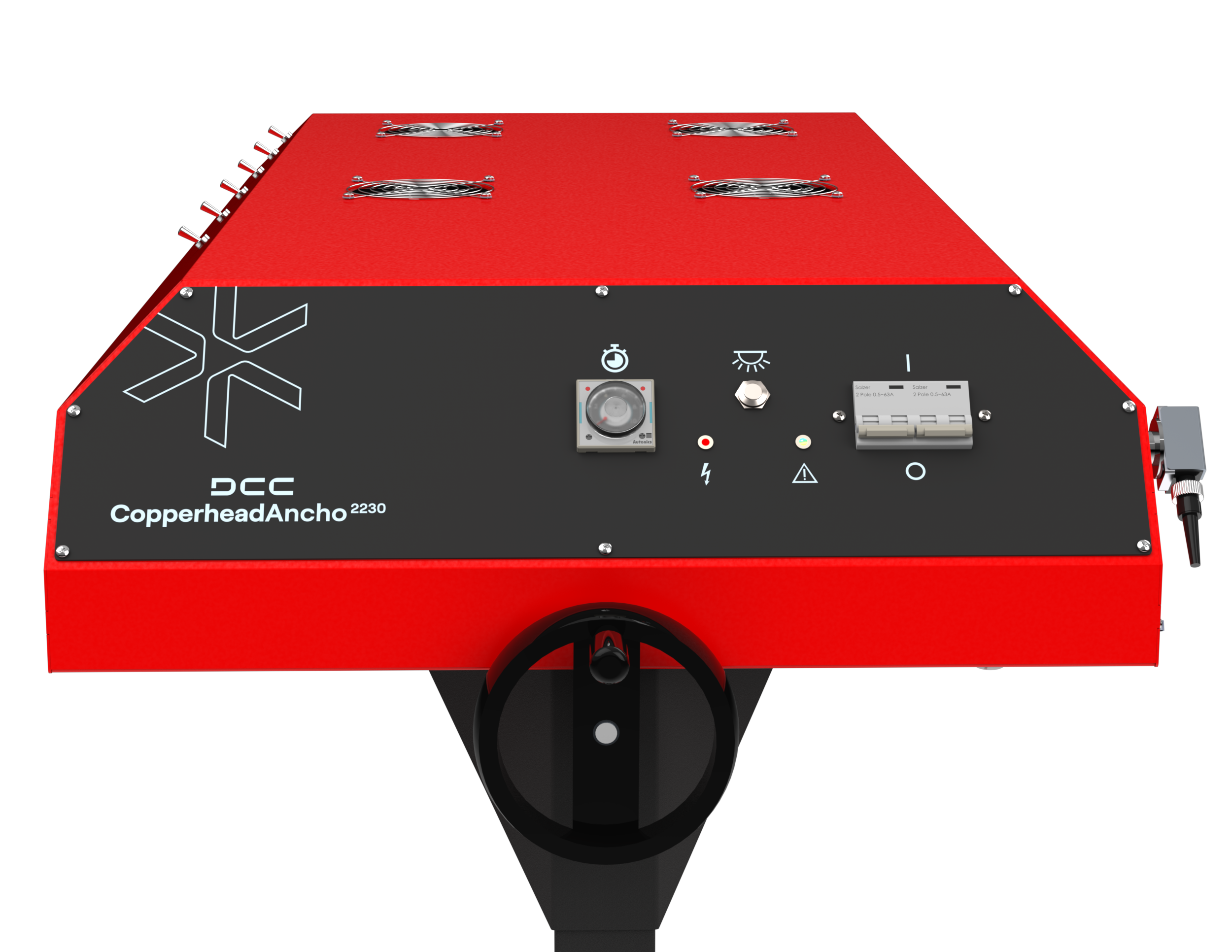

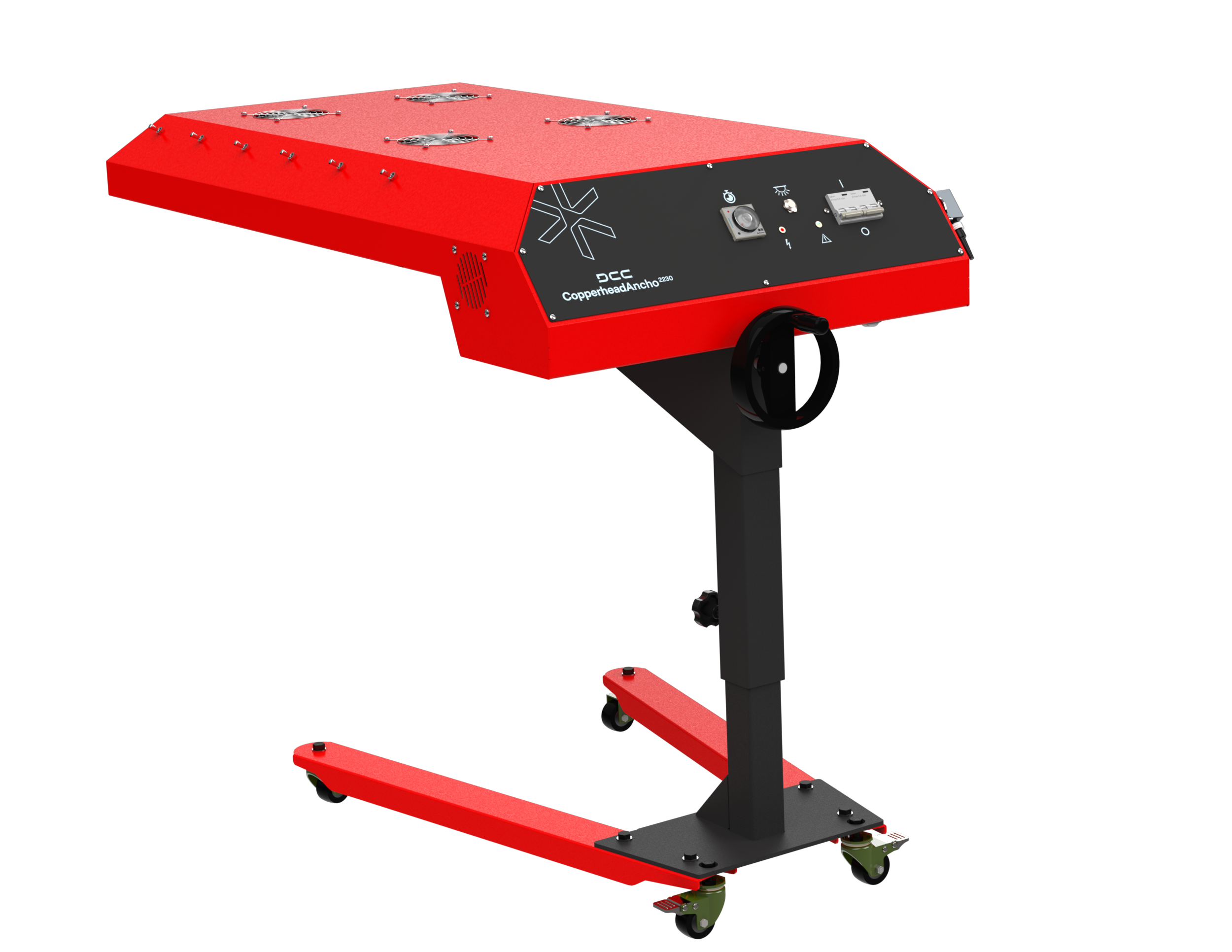

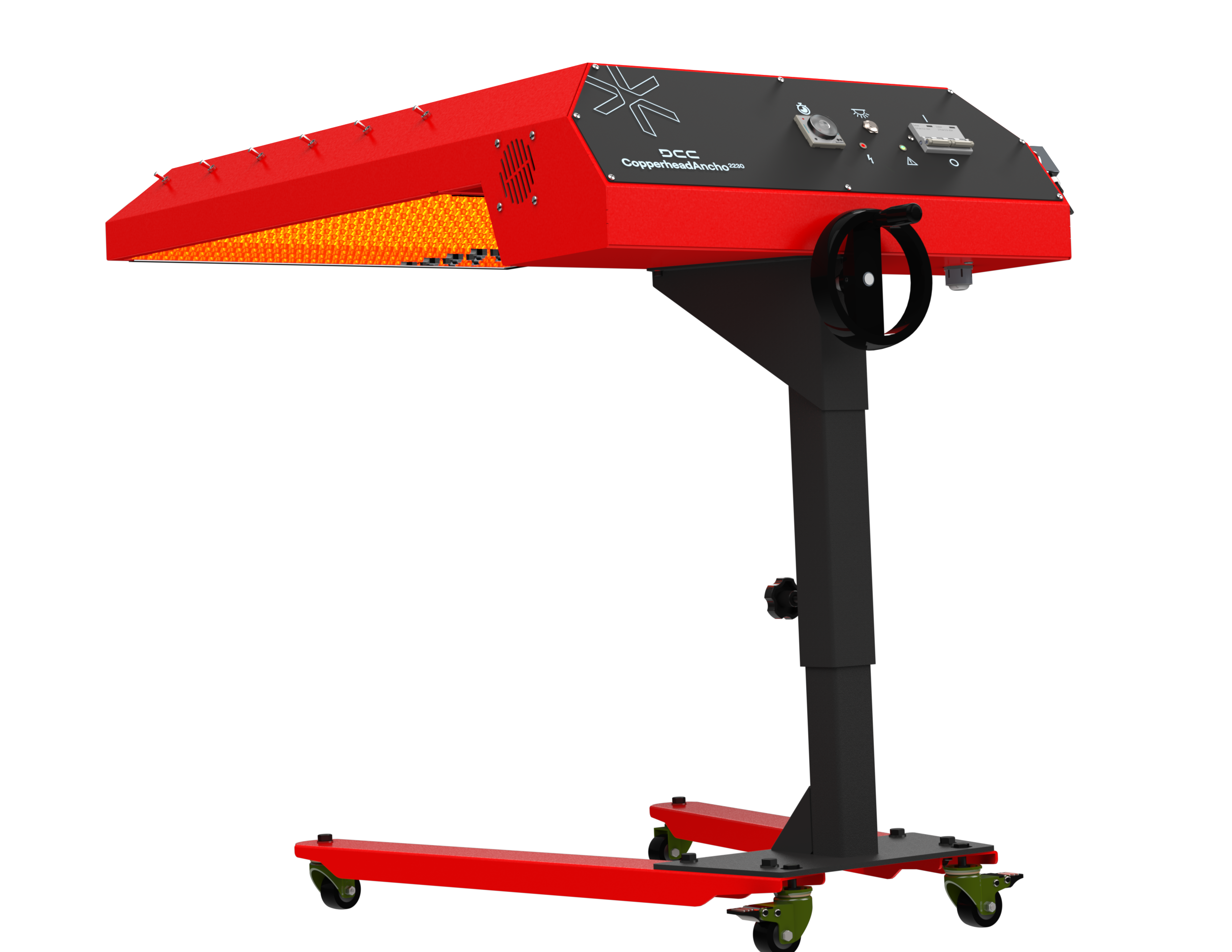

Ancho is versatile a straightforward quartz flash offering reliable performance and universal press compatibility. It has a universal design that can fit most brands’ presses. An adjustable sensor switch can be positioned on either side of the flash cure unit, activating the flash when the printing pallet approaches. It uses medium wave filament quartz lamps and flash cure duration can be controlled by an analog timer. All the lamps can be individually controlled with the toggle switches present on the flash body. Lamp height can be adjusted up to 121 cm (48”). Smooth rolling, locking casters makes moving the flash fast & easy.
Technical specifications
DOWNLOAD PDF
Specifications
Ancho 1820
Ancho 2230
Ancho 2432
Ancho 2840
Ancho 3230
Ancho 3248
Curing Area
46 x 51 cm
(18” x 20”)
56 x 76 cm
(22” x 30”)
61 x 81 cm
(24” x 32”)
71 x 101 cm
(28” x 38”)
80 x 76 cm
(32” x 30”)
80 x 120 cm
(32” x 48”)
Electrical Requirements1
208-230 V, 3 ph, 38 A,50/60 Hz, 12.0 Kw
380-415 V, 3 ph, 22 A, 50 Hz, 12.0 kW
208-230 V, 3 ph, 49 A,50/60 Hz, 15.6 Kw
380- 415 V, 3 ph, 28.5 A, 50 Hz, 15.6 kW
208-230 V, 3 ph, 57 A,50/60 Hz,
18 Kw
380- 415 V,
3 ph, 33 A, 50 Hz, 18 kW
380-415 V,
3 ph, 40 A, 50 Hz, 21.6 kW
380-415 V,
3 ph, 33 A, 50 Hz, 18 kW
380-415 V,
3 ph, 49 A, 50 Hz, 27 kW
Machine Dimension
(L x W)
102 x 61 cm
(43" x 24")
124 x 68 cm
(48.9" x 26.8")
129 x 71 cm
(50.8" x 28")
155 x 81 cm
(61" x 32")
130 x 92 cm
(51.2" x 36.2")
175 x 92 cm
(68.9" x 36.2")
Machine Height
101 cm - 121 cm (Adjustable)
101 cm - 121 cm (Adjustable)
101 cm - 121 cm (Adjustable)
101 cm - 121 cm (Adjustable)
101 cm - 121 cm (Adjustable)
101 cm - 121 cm (Adjustable)
Weight
58 kg (128 Ibs)
70 kg (154 Ibs)
78 kg (172 Ibs)
102 kg (225 Ibs)
98 kg (216 Ibs)
115 kg (254 Ibs)
1 Use uninterruptible power supply (UPS) to safeguard machine from voltage fluctuation out of main supply.
If incoming voltage differs from the voltage(s) listed in the brochure, calculate amperage accordingly.
More from Flashcures
Find alternative models or accessories tailored to your production needs.
CopperheadRedPepper
VIEW PRODUCT

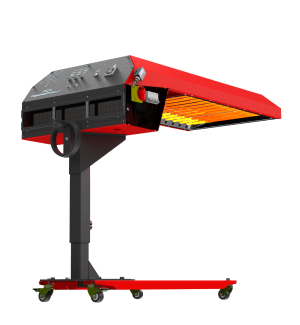

CopperheadPoblano
