RedPepper
Applications We Power
The Spicy Cure for New Flashing Options

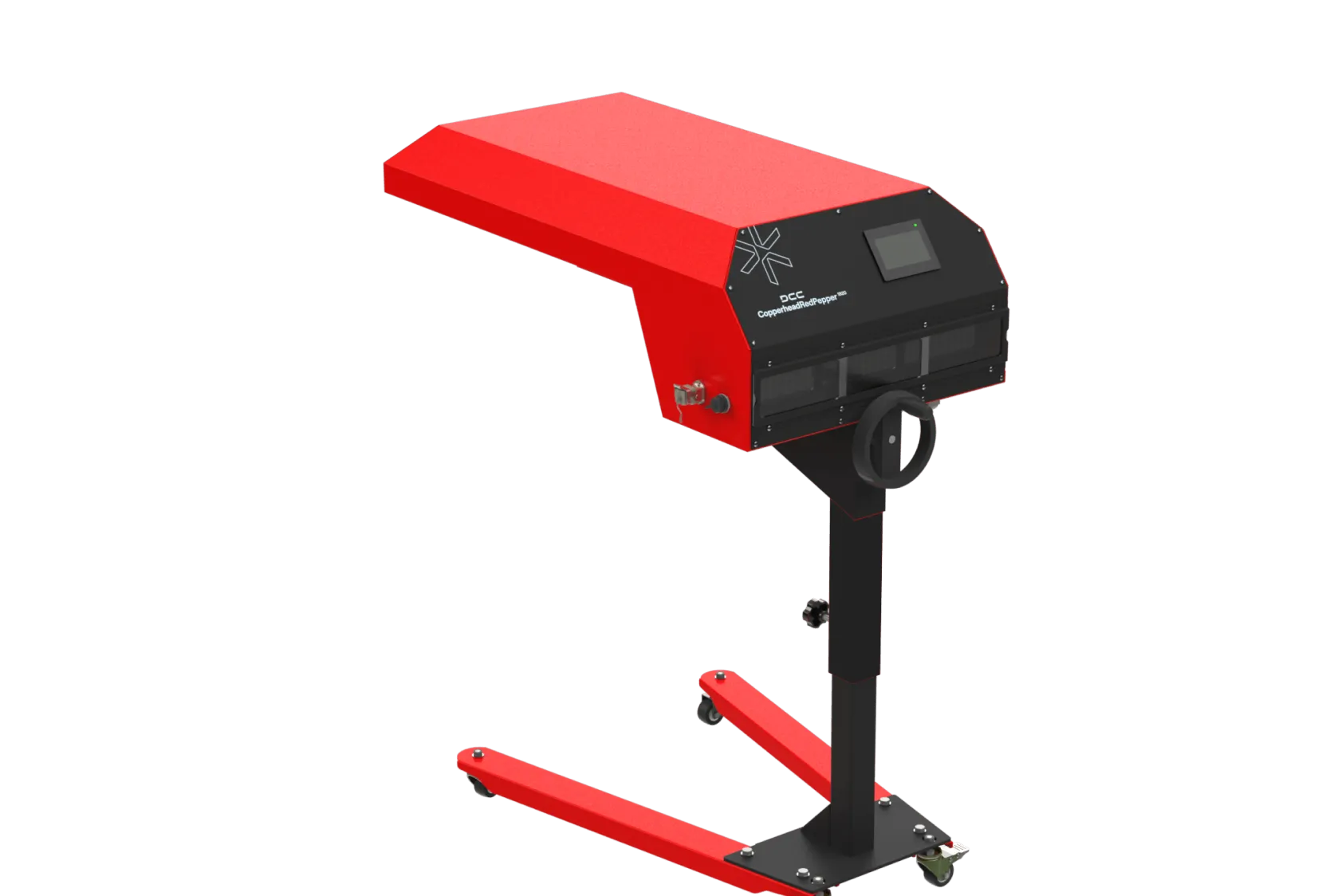

The RedPepper is DCC’s most advanced freestanding quartz flash cure system, designed to fit most press brands with its universal build. An adjustable sensor activates the flash as the pallet approaches, while medium-wave quartz lamps deliver powerful, even heating. The system features three independently controlled flashing zones, a digital timer, and automatic temperature-based shutdown to prevent over-flashing and fabric shrinkage. A reflector array with forced-air heat exchange ensures consistent curing, and smooth-locking casters provide easy mobility.
Technical specifications
DOWNLOAD PDF
Specifications
RED PEPPER 1820
RED PEPPER 2030
RED PEPPER 2040
RED PEPPER 3248
Curing Area
46 x 51 cm (18" x 20")
51 x 76 cm (20" x 30")
71 x 102 cm (28" x 40")
80 x 120 cm (32" x 48")
Electrical Requirements
208–230 V, 1 ph, 73 A, 50 Hz, 13.5 kW (UL/CE) 208–230 V, 3 ph, 43 A, 50/60 Hz, 13.5 kW (UL) 380–415 V, 3 ph, 24 A, 50 Hz, 13.5 kW (CE)
208–230 V, 3 ph, 48 A, 50/60 Hz, 21.7 kW 380–415 V, 3 ph, 48 A, 50/60 Hz, 21.7 kW (CE)
380–415 V, 3 ph, 52 A, 50 Hz, 32.5 kW (CE)
380–415 V, 3 ph, 58 A, 50 Hz, 48 kW (CE)
Gas InpMachine Dimension (L x W)ut Size
107 x 64 cm (42.2" x 25.3")
133 x 64 cm (52.2" x 25.3")
162.5 x 96.5 cm (64" x 38")
183 x 107 cm (72" x 42")
Machine Height
101 cm – 121 cm (Adjustable)
101 cm – 121 cm (Adjustable)
101 cm – 121 cm (Adjustable)
101 cm – 121 cm (Adjustable)
Weight
65 kg (143.3 lbs)
72 kg (159 lbs)
96 kg (212 lbs)
120 kg (264.5 lbs)
1Use uninterruptible power supply (UPS) to safeguard machine from voltage fluctuation out of main supply. If incoming voltage differs from the voltage(s) listed in the brochure, calculate amperage accordingly.
More from Flashcures
Find alternative models or accessories tailored to your production needs.

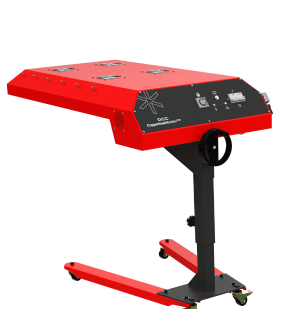

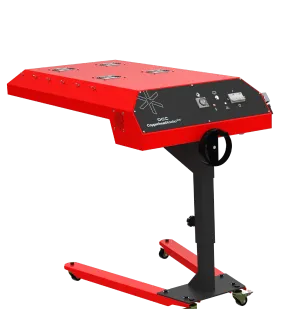

CopperheadAncho
VIEW PRODUCT

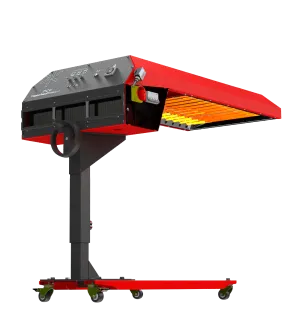

CopperheadPoblano
