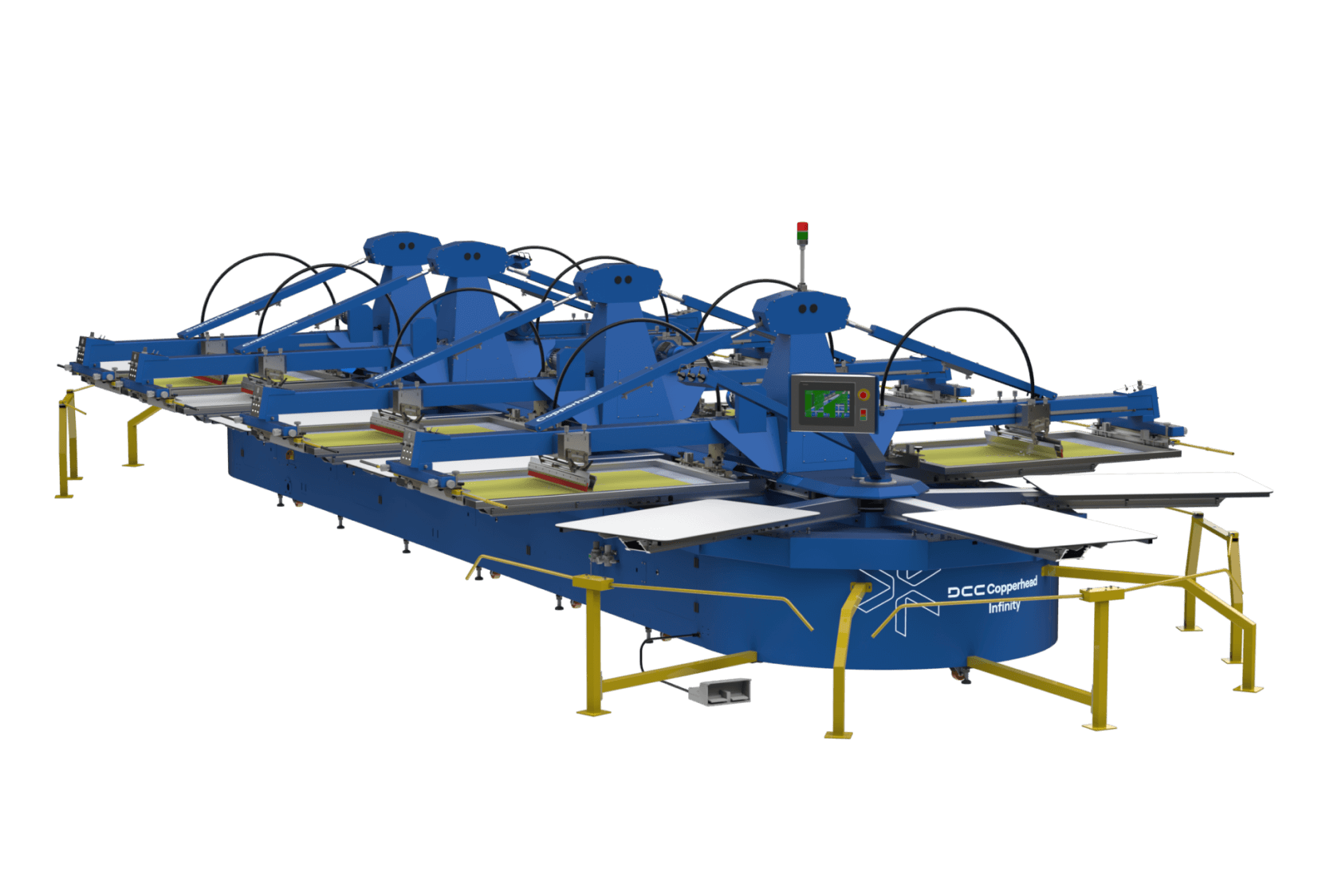

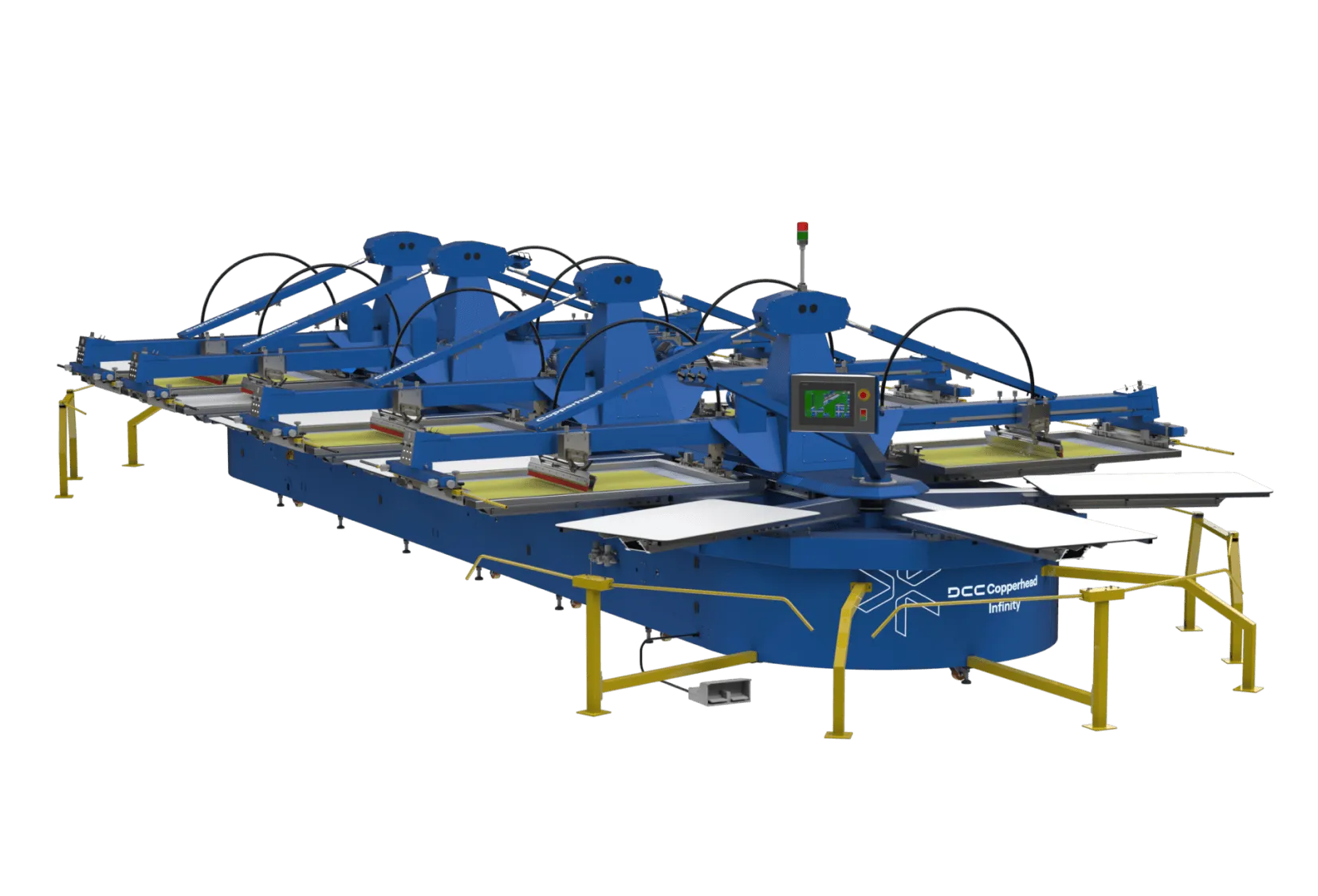

The Infinity comes in a flexible configuration where printheads can be placed at any position, making it very convenient for printers to set up the press for different styles of printing techniques. It is modifiable up to 38 stations configurations to accommodate different printing and flashing needs.
Specifications
Infinity Oval
14/8
Infinity Oval 18/12
Infinity Oval 22/16
Infinity Oval 26/20
Infinity Oval 30/24
Infinity Oval 34/28
Infinity Oval 38/32
Air @ 7 Bar ( 102 psi)1
530l/min (18.7 cfm)
770 l/min (27.2 cfm)
1010 l/min (35.6 cfm)
1370 l/min (48.4 cfm)
1610 l/min (56.9 cfm)
1850 l/min (65.3 cfm)
2090 l/min (73.8 cfm)
Electrical Requirements1
380-415 V, 3 ph, 12 A, 50 Hz, 5.25 kW
380-415 V, 3 ph, 12 A, 50 Hz, 6.75 kW
380-415 V, 3 ph, 16.5 A, 50 Hz, 8.25 kW
380-415 V, 3 ph, 20 A, 50 Hz, 9.75 kW
380-415 V, 3 ph, 20 A, 50 Hz, 11.25 kW
380-415 V, 3 ph, 24.5 A, 50 Hz, 12.75 kW
380-415 V, 3 ph, 29 A, 50 Hz, 14.25 kW
Standard Image Size
70 x 100 cm (28" x 40")
70 x 100 cm (28" x 40")
70 x 100 cm (28" x 40")
70 x 100 cm (28" x 40")
70 x 100 cm (28" x 40")
70 x 100 cm (28" x 40")
70 x 100 cm (28" x 40")
Standard Pallet Size
76 x 122 cm (30” x 48”)
76 x 122 cm (30” x 48”)
76 x 122 cm (30” x 48”)
76 x 122 cm (30” x 48”)
76 x 122 cm (30” x 48”)
76 x 122 cm (30” x 48”)
76 x 122 cm (30” x 48”)
Standard Frame Size (OD)
86 x 135 cm (34" x 53")
86 x 135 cm (34" x 53")
86 x 135 cm (34" x 53")
86 x 135 cm (34" x 53")
86 x 135 cm (34" x 53")
86 x 135 cm (34" x 53")
86 x 135 cm (34" x 53")
Overall Size (L x W x H)
953 x 478 x 190.5 cm (375.3" x 188" x 75")
1185 x 478 x 190.5 cm (466.5" x 188" x 75")
1417.8 x 478 x 190.5 cm (558" x 188" x 75")
1649 x 478 x 190.5 cm (649" x 188" x 75")
1880 x 478 x 190.5 cm (740.3" x 188" x 75")
2112 x 478 x 190.5 cm (831.5" x 188" x 75")
2344 x 478 x 190.5 cm (923" x 188" x 75")
Stations/Colors
14/8
18/12
22/16
26/20
30/24
34/28
38/32
1Consumption @ 10 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
