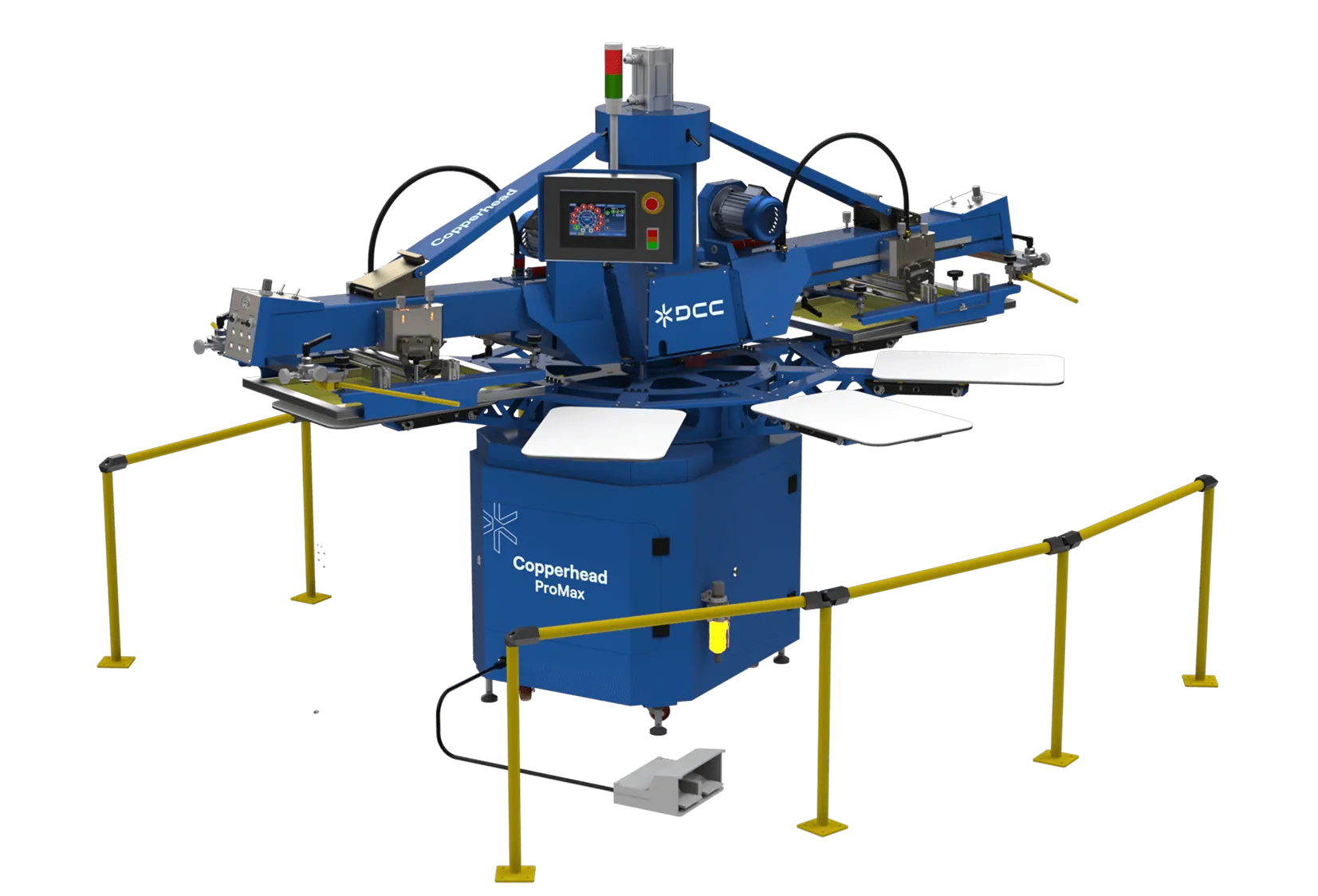

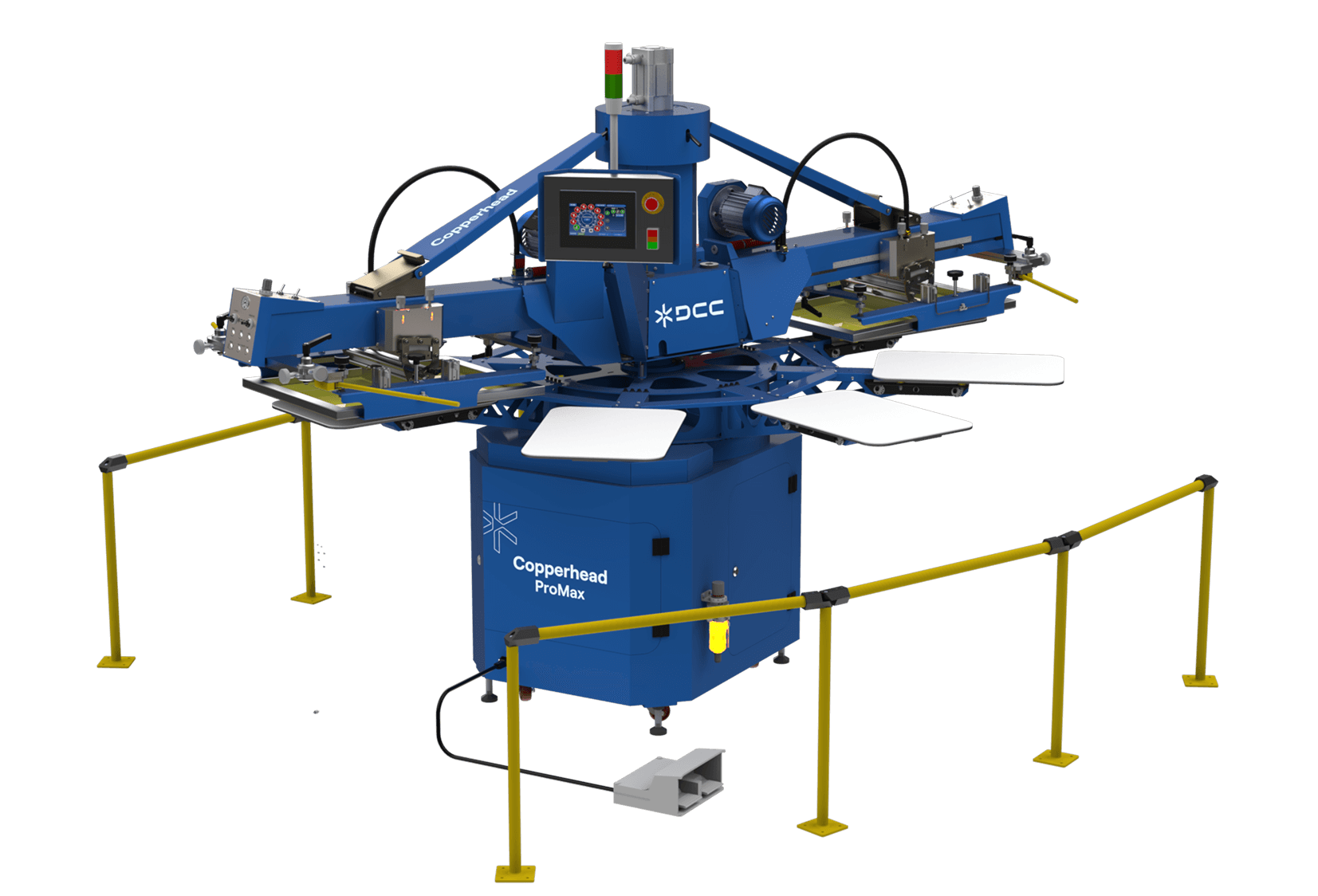

ProMax sets a new standard in automatic screen printing—combining high-speed output, smart engineering, and exceptional value. Its electric indexing system ensures smooth, quiet operation, while the Squeegee Pressure Equalizer System maintains consistent ink deposit and registration across every print.
With servo-driven printheads, tool-free adjustments, and digital calibration, the Pro Max simplifies setup and delivers the control professionals need for fast, repeatable results.
.svg)
Specifications
Pro Max 8/3/1F
Air @ 7 Bar ( 102 psi)1
175 L/min (6.2 cfm)
Electrical Requirements2,3
208-230 V, 3 ph, 43.5A, 50/60 Hz, 8.5 kW
380-415 V, 3 ph, 43.2A, 50 Hz, 8.5 kW
Maximum In-built Flash Cure Units4
3
Diameter
290 cm (114")
Maximum Frame Size
51 x 69 cm (20" x 27") OD
Maximum Image Area
36 x 34 cm (14" x 13.5")
Machine Weight
326 kg (719 lb)
Standard Pallet Size
38 x 56 cm (15" x 22")
Stations/Colors/In-built Flash
8/3/1F
1Consumption @ 10 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
4For Amperage values while using In-Head Flash Cure Units, contact DCC Company for details
