Galaxy Astra and Astra+ are offered in a proven Print/Flash/Print (PFP)
configuration, widely adopted for handling a broad mix of screen printing jobs. Designed for smooth indexing and stable performance, the system supports reliable production across daily work-loads.
Its modular architecture allows printers to configure the setup based on operational needs, making it a practical and scalable solution for growing print environments.
Unique PinPoint registration system which minimizes setup time significantly
Switch to different size of pallets within seconds
Duplex chain with the unique "Auto-tensioning" chain mechanism to help run the press maintenance-free

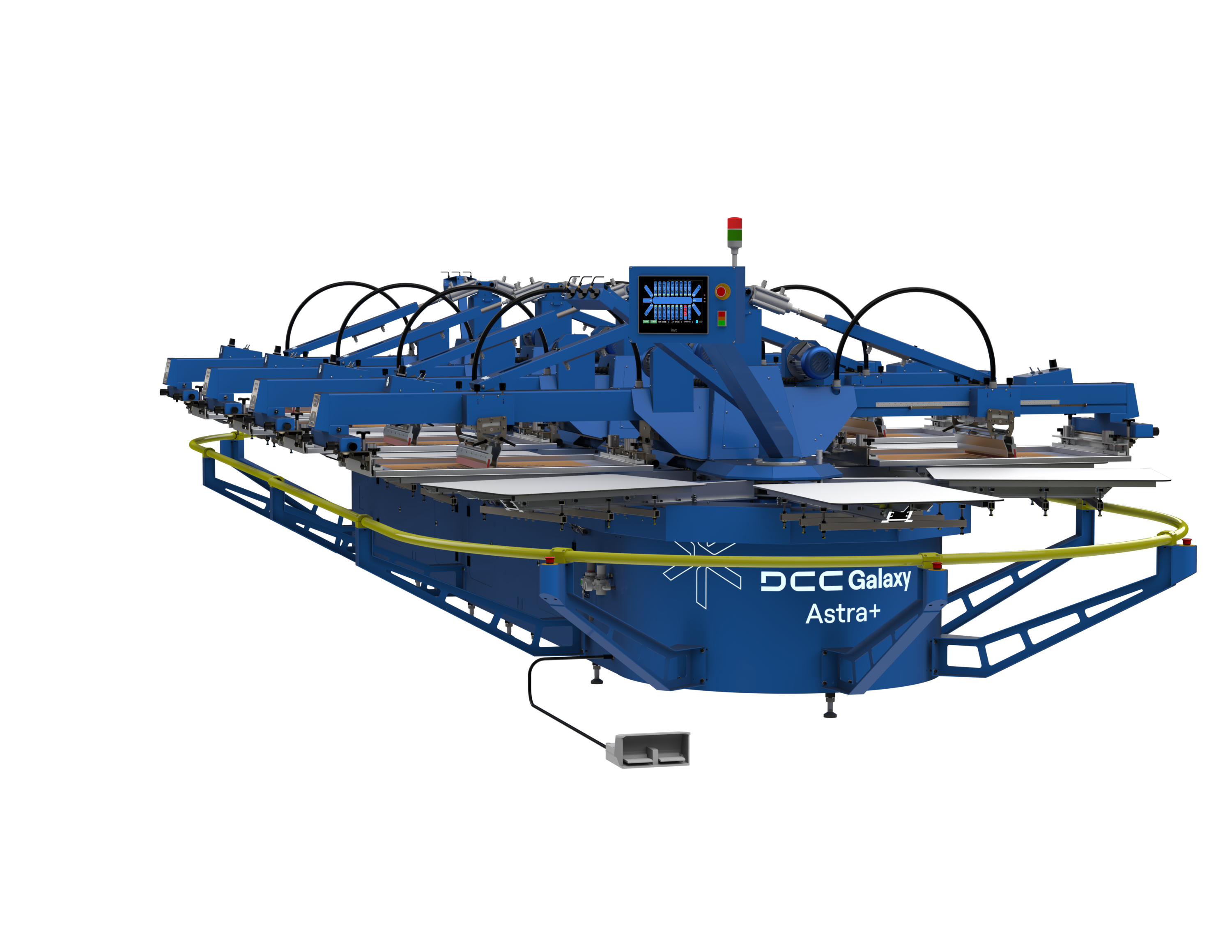

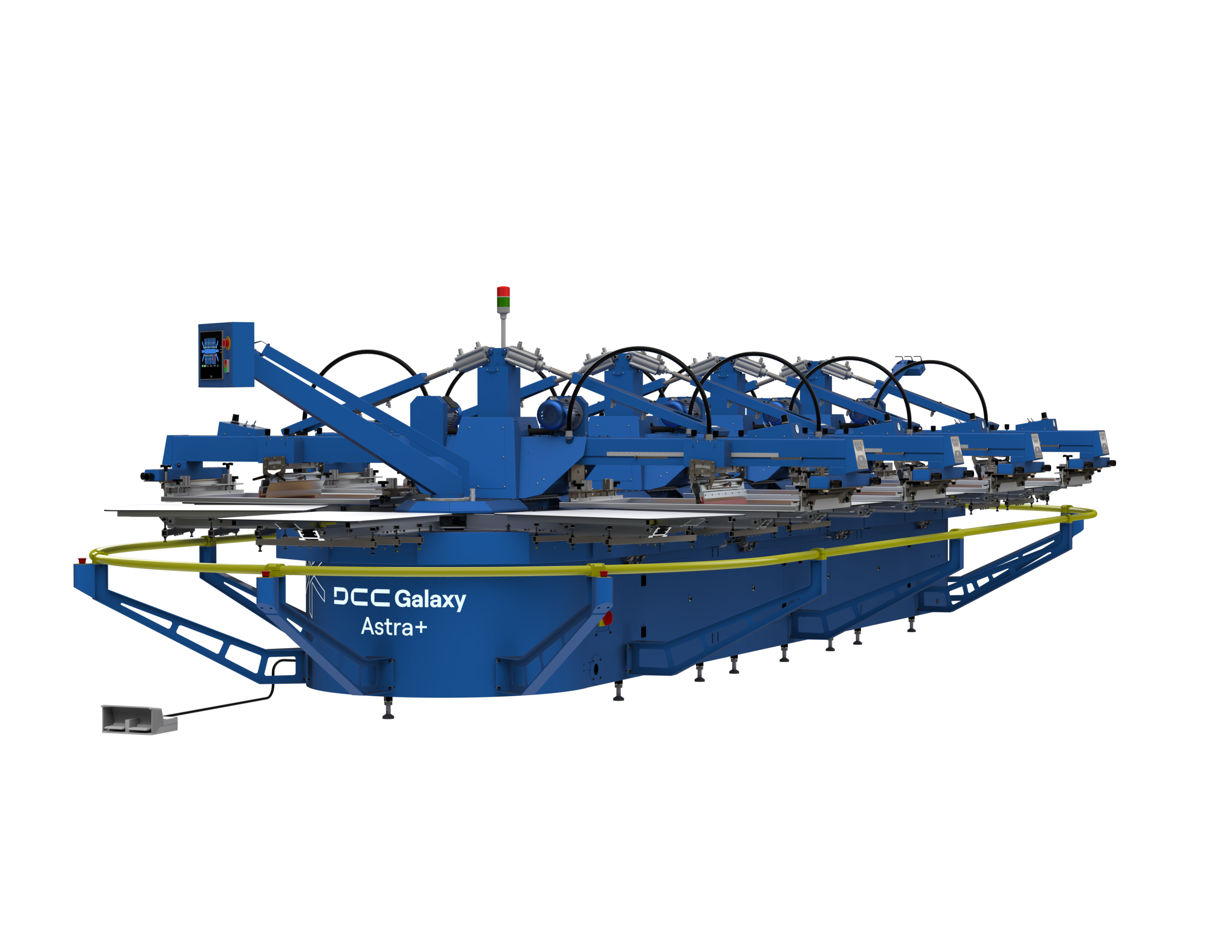

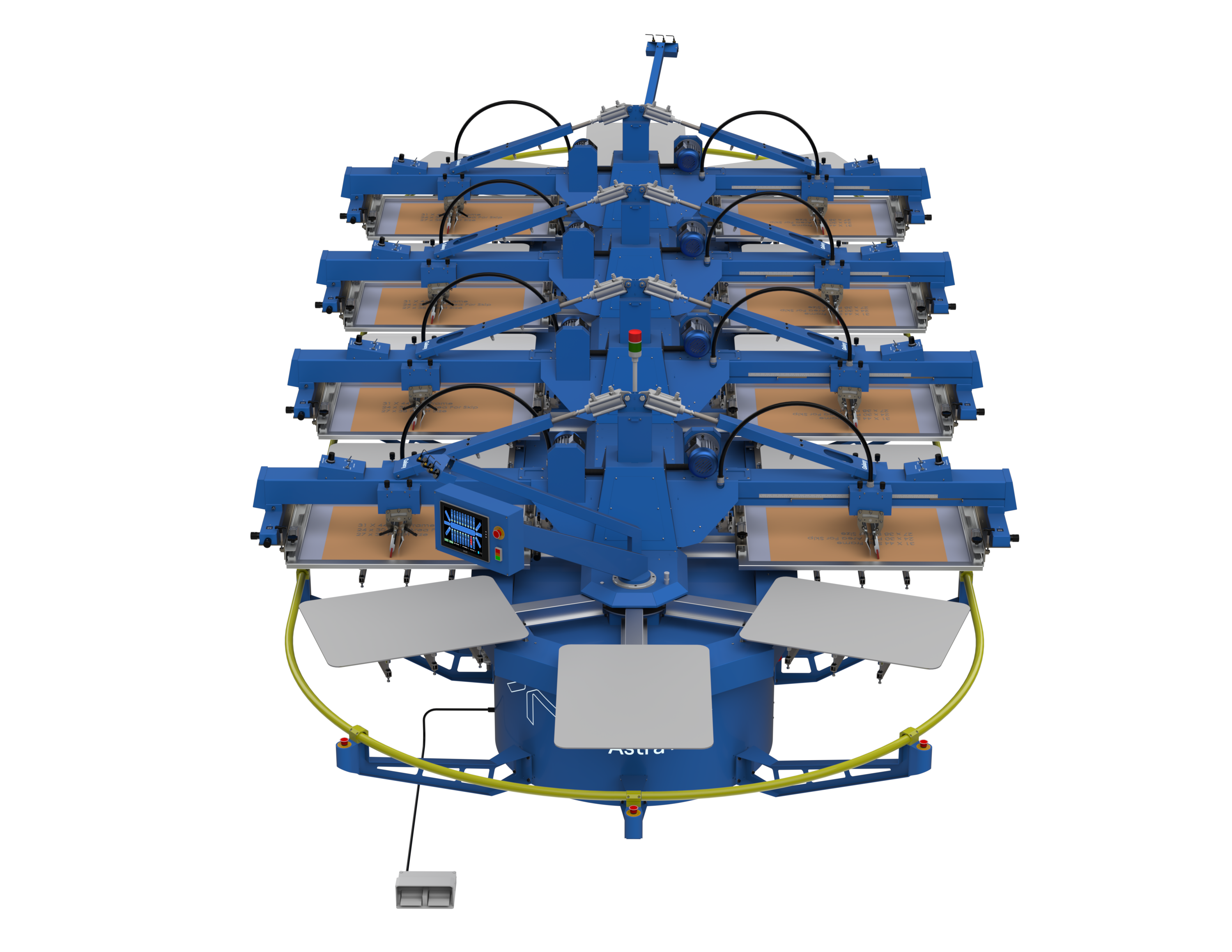

Galaxy Astra+ is built on a rigid structural steel frame with aero-grade aluminum extrusions to deliver stable, vibration-free printing performance. A servo motor–driven indexing system with a planetary gearbox ensures smooth, accurate movement and consistent cycle timing. Solid aluminum pallets supported by FEM-analysed structures help maintain precise registration across multi-color jobs. AC motor–driven printheads controlled by VFD provide consistent and repeatable squeegee and floodbar motion. The icon-based touchscreen HMI integrates smart programs with self-diagnostic capability for centralized control. Operator-friendly features such as tool-free adjustments, multiple print modes, and automated maintenance reminders enhance overall efficiency and uptime.
Galaxy Orbit features a squeegee pressure equalizer system with individual regulators on each head ensures uniform ink deposit for excellent print quality.
Solid aluminum pallets maintain consistent flatness even at high curing temperatures, ensuring stable printing conditions and reliable registration throughout production.
Tech Specifications
Galaxy Astra 5070 20/8
Galaxy Astra 5070 28/12
Galaxy Astra 5070 32/14
Galaxy Astra 5070 40/18
Galaxy Astra 5070 40/18
Galaxy Astra 5070
52/24
Galaxy Astra 5070
56/26
Galaxy Astra 5070
64/30
Air @ 7 Bar ( 102 psi)1
470 l/min (16.6 cfm)
690 l/min (24.4 cfm)
800 l/min (28.3 cfm)
1020 l/min (36.0 cfm)
1130 l/min (40.0 cfm)
1350 l/min (47.8 cfm)
1460 l/min (51.5 cfm)
1570 l/min (55.5 cfm)
Electrical Requirements2,3
380-415 V, 3 ph, 11.5 A, 50 Hz, 4.75kW
208-230 V, 3 ph, 15 A, 50/60 Hz, 4.75kW
380-415 V, 3 ph, 16.5 A,50 Hz, 6.25kW
208-230 V, 3 ph, 20 A, 50/60 Hz, 6.25kW
380-415 V, 3 ph, 16.5 A, 50 Hz,
7kW
208-230 V, 3 ph, 22 A, 50/60 Hz, 7kW
380-415 V, 3 ph, 21 A, 50 Hz, 8.5kW 208-230 V, 3 ph, 27 A, 50/60 Hz, 8.5kW
380-415 V, 3 ph, 21 A, 50 Hz, 9.25kW
208-230 V, 3 ph, 29.5 A, 50/60 Hz, 9.25kW
380-415 V, 3 ph, 24.5 A, 50 Hz, 10.75kW
208-230 V, 3 ph, 34 A, 50/60 Hz, 10.75kW
380-415 V, 3 ph, 24.5 A, 50 Hz, 11.5kW
208-230 V, 3 ph, 36.5 A, 50/60 Hz, 11.5kW
380-415 V, 3 ph, 29 A, 50 Hz, 13kW
208-230 V, 3 ph, 41 A, 50/60 Hz, 13kW
Standard Image Size
50 x 70 cm (20" x 28")
50 x 70 cm (20" x 28")
50 x 70 cm (20" x 28")
50 x 70 cm(20" x 28")
50 x 70 cm(20" x 28")
50 x 70 cm(20" x 28")
50 x 70 cm(20" x 28")
50 x 70 cm(20" x 28")
Standard Pallet Size
60 x 89 cm(23.5” x 35”)
60 x 89 cm(23.5” x 35”)
60 x 89 cm(23.5” x 35”)
60 x 89 cm(23.5” x 35”)
60 x 89 cm(23.5” x 35”)
60 x 89 cm(23.5” x 35”)
60 x 89 cm(23.5” x 35”)
60 x 89 cm(23.5” x 35”)
Standard Frame Size (OD)
66 x 109 cm(26" x 43")
66 x 109 cm(26" x 43")
66 x 109 cm(26" x 43")
66 x 109 cm(26" x 43")
66 x 109 cm(26" x 43")
66 x 109 cm(26" x 43")
66 x 109 cm(26" x 43")
66 x 109 cm(26" x 43")
Overall Size (L x W x H)
864 x 358 x 193 cm(340" x 141" x 76")
1162 x 358 x 193 cm (457.3" x 141" x 76")
1311 x 358 x 193 cm (516" x 141" x 76")
1609 x 358 x 193 cm (633.5" x 141" x 76")
1758 x 358 x 193 cm (692.3" x 141" x 76")
2057 x 358 x 193 cm (809.8" x 141" x 76")
2206 x 358 x 193 cm (868.5" x 141" x 76")
2504 x 358 x 193 cm(986" x 141" x 76")
Stations/Colors
20/8
28/12
32/14
40/18
44/20
52/24
56/26
64/30
1Consumption @ 12 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
Specifications
Galaxy Astra+ 6080 20/8
Galaxy Astra+ 6080
28/12
Galaxy Astra+ 6080
32/14
Galaxy Astra+ 6080
40/18
Galaxy Astra+ 6080
44/20
Galaxy Astra+ 6080
52/24
Galaxy Astra+ 6080
56/26
Galaxy Astra+ 6080
64/30
Air @ 7 Bar ( 102 psi)1
470 l/min (16.6 cfm)
690 l/min (24.4 cfm)
800 l/min (28.3 cfm)
1020 l/min (36.0 cfm)
1130 l/min (40.0 cfm)
1350 l/min (47.8 cfm)
1460 l/min (51.5 cfm)
1570 l/min (55.5 cfm)
Electrical Requirements2,3
380-415 V, 3 ph, 11.5 A, 50 Hz, 4.75kW
208-230 V, 3 ph, 15 A, 50/60 Hz, 4.75kW
380-415 V, 3 ph, 16.5 A,50 Hz, 6.25kW
208-230 V, 3 ph, 20 A, 50/60 Hz, 6.25kW
380-415 V, 3 ph, 16.5 A, 50 Hz,
7kW
208-230 V, 3 ph, 22 A, 50/60 Hz, 7kW
380-415 V, 3 ph, 21 A, 50 Hz, 8.5kW 208-230 V, 3 ph, 27 A, 50/60 Hz, 8.5kW
380-415 V, 3 ph, 21 A, 50 Hz, 9.25kW
208-230 V, 3 ph, 29.5 A, 50/60 Hz, 9.25kW
380-415 V, 3 ph, 24.5 A, 50 Hz, 10.75kW
208-230 V, 3 ph, 34 A, 50/60 Hz, 10.75kW
380-415 V, 3 ph, 24.5 A, 50 Hz, 11.5kW
208-230 V, 3 ph, 36.5 A, 50/60 Hz, 11.5kW
380-415 V, 3 ph, 29 A, 50 Hz, 13kW
208-230 V, 3 ph, 41 A, 50/60 Hz, 13kW
Recomanded to use Flash Cure Units
6
8
10
12
12
12
12
12
Standard Image Size
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
Standard Pallet Size
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
Standard Frame Size (OD)
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
Overall Size (L x W x H)
864 x 358 x 193 cm(340" x 141" x 76")
1162 x 358 x 193 cm (457.3" x 141" x 76")
1311 x 358 x 193 cm (516" x 141" x 76")
1609 x 358 x 193 cm (633.5" x 141" x 76")
1758 x 358 x 193 cm (692.3" x 141" x 76")
2057 x 358 x 193 cm (809.8" x 141" x 76")
2206 x 358 x 193 cm (868.5" x 141" x 76")
2504 x 358 x 193 cm(986" x 141" x 76")
Stations/Colors
20/8
28/12
32/14
40/18
44/20
52/24
56/26
64/30
1Consumption @ 12 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
