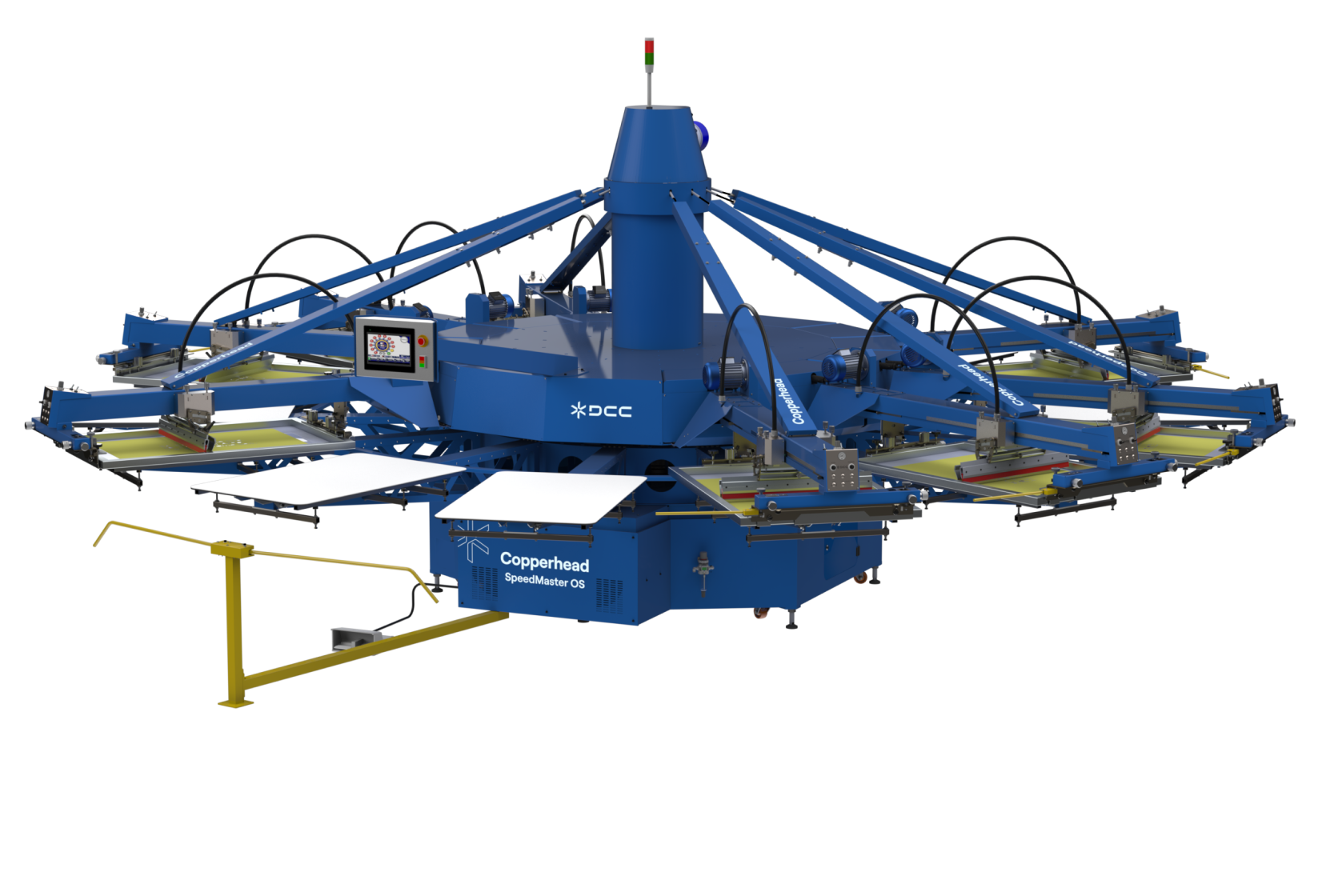

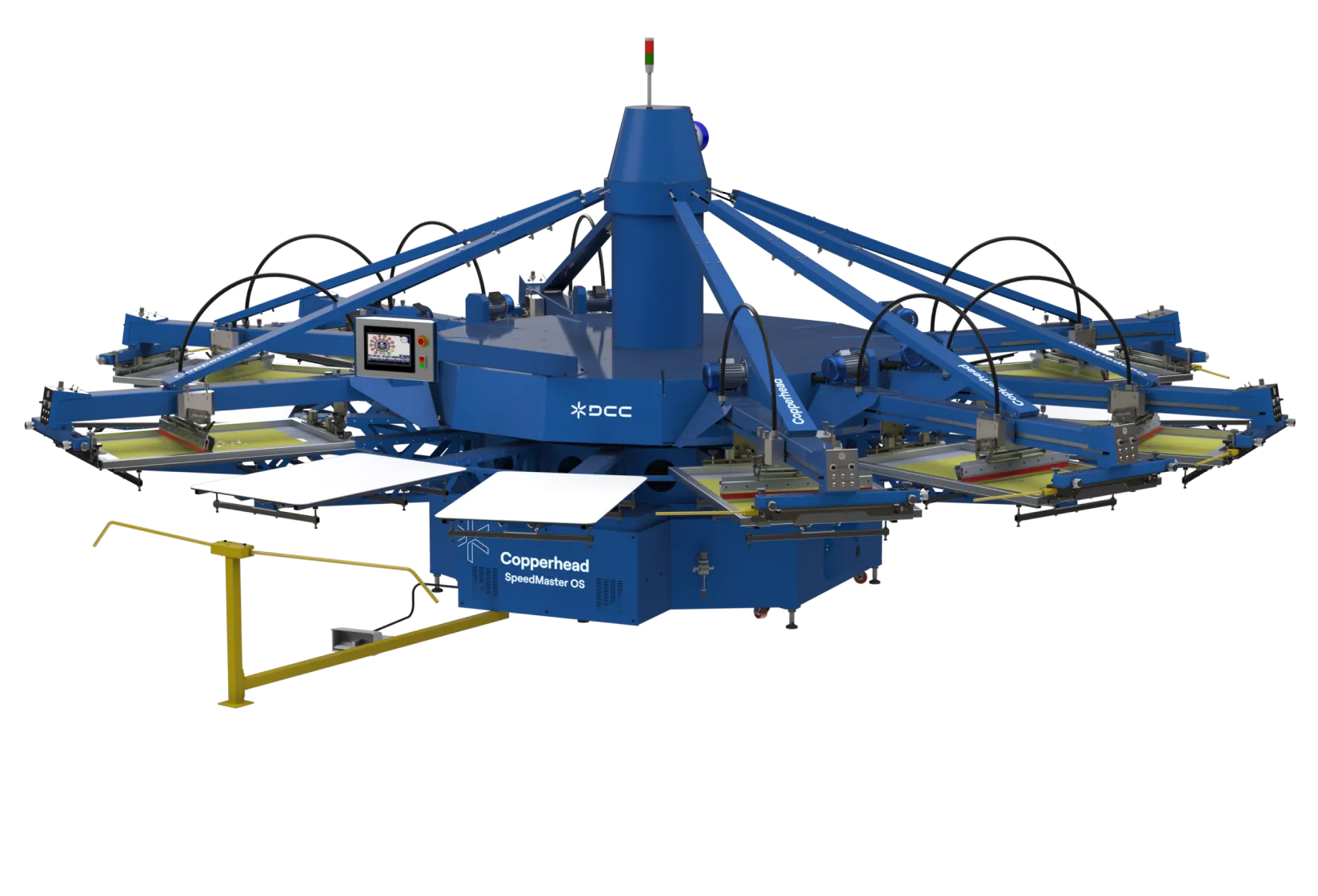

SpeedmasterOS extends the Speedmaster platform for oversized and all-over print applications. Built for continuous, high-volume production, it maintains registration accuracy and speed through the longest shifts.
Designed to manage large pallets and complex layouts, the SpeedmasterOS delivers the same power and precision on a larger scale.
.svg)
Specifications
Speedmaster OS 12/10
Speedmaster OS 14/12
Air @ 8.5 Bar ( 123 psi)1
310 l/min (10.9 cfm)
370 l/min (13.0 cfm)
Electrical Requirements2,3
380-415 V, 3 ph, 18 A, 50 Hz, 7.75 kW
380-415 V, 3 ph, 20 A, 50 Hz, 8.5 kW
Diameter
641.5 cm (252.5")
699 cm (275.5")
Maximum Frame Size
86 x 135 cm (34" x 53")
86 x 135 cm (34" x 53")
Maximum Frame Size (Double Index- Skip Frame)
96 x 142 cm (38" x 56")
96 x 142 cm (38" x 56")
Maximum Image Area
71 x 102 cm (28" x 40")
71 x 102 cm (28" x 40")
Maximum Image Area (Double Index - Skip Frame)
80 x 110 cm (31.5" x 43.5")
80 x 110 cm (31.5" x 43.5")
Machine Weight
3630 kg (7619 lb)
4240 kg (8898 lb)
Standard Pallet Size
76 x 122 cm (30" x 48")
76 x 122 cm (30" x 48")
Stations/Colors
12/10
14/12
1Consumption @ 12 pieces/min & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
