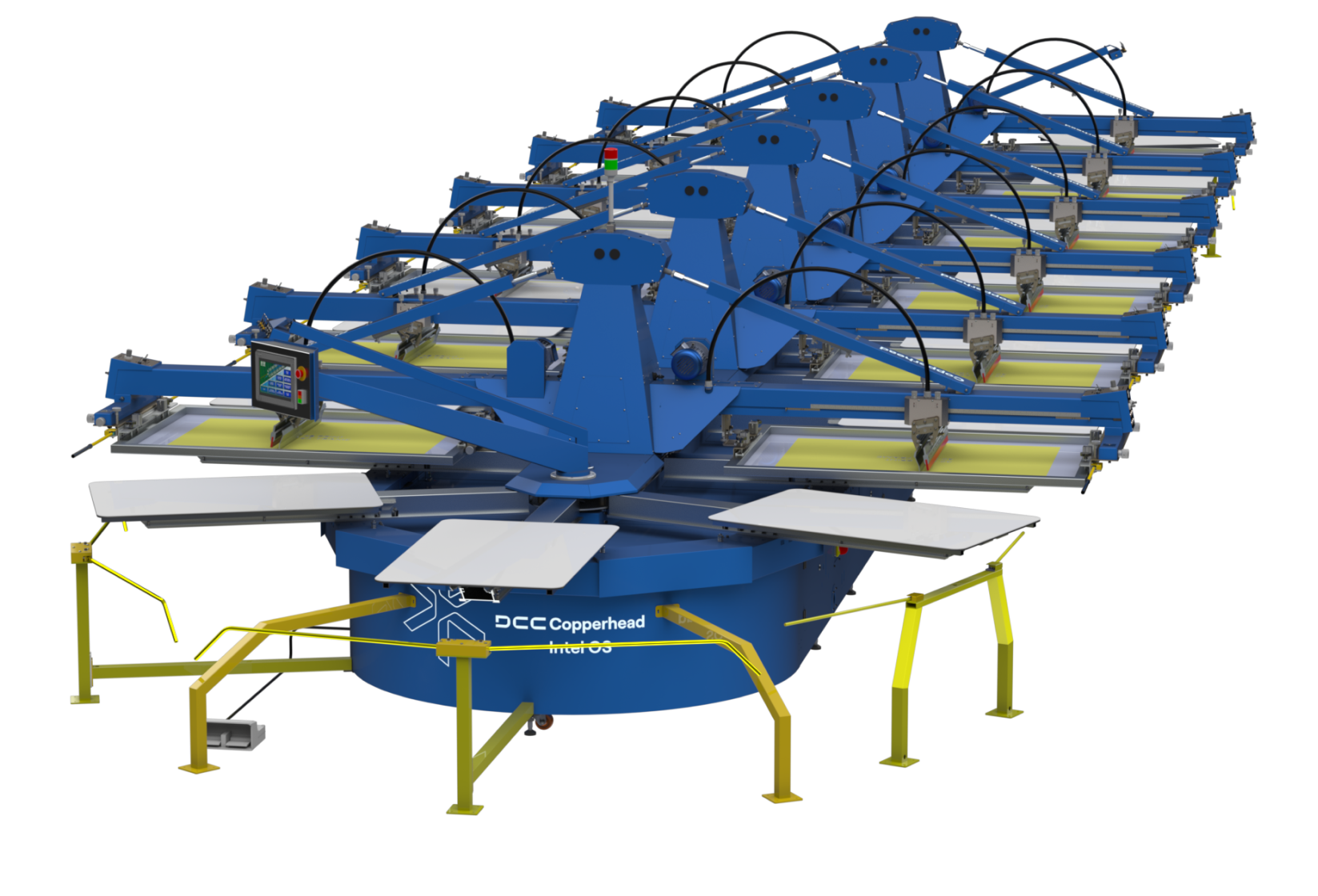

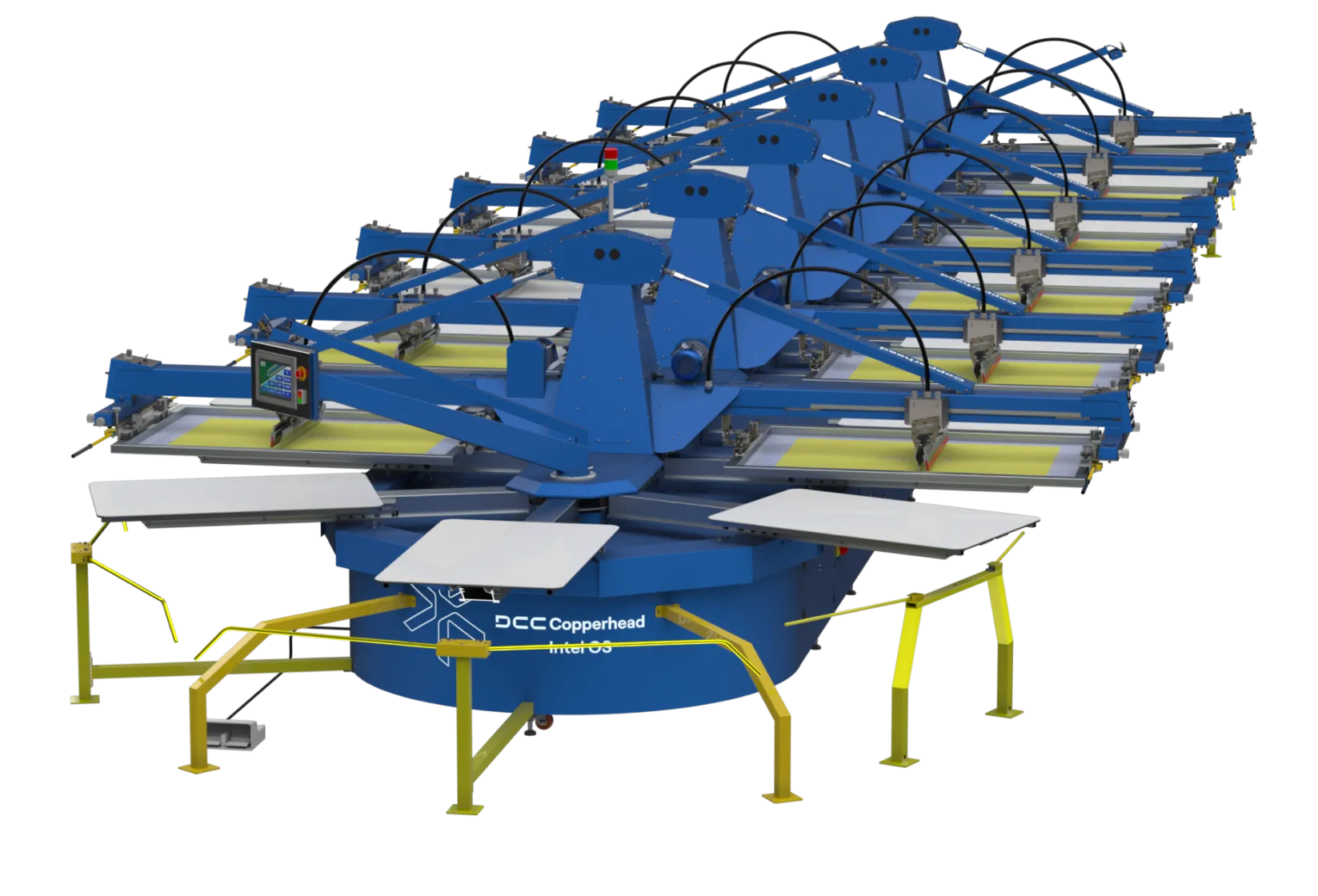

The IntelOS comes in a standard Print/Flash/Print (PFP) configuration. It is modifiable up to 40 station configurations to accommodate different printing and flashing needs. OS indicates Oversize printing capacity for larger images.
Specifications
Intel OS Oval 16/6
Intel OS Oval 20/8
Intel OS Oval 24/10
Intel OS Oval 28/12
Intel OS Oval 32/14
Intel OS Oval 36/16
Intel OS Oval 40/18
Air @ 7 Bar ( 102 psi)1
410 l/min (14.5 cfm)
530 l/min (18.7 cfm)
650 l/min (23 cfm)
770 l/min (27.2 cfm)
890 l/min (31.4 cfm)
1010 l/min (35.6 cfm)
1130 l/min (39.9 cfm)
Electrical Requirements2,3
380-415 V, 3 ph, 8 A, 50 Hz, 4.5 kW
380-415 V, 3 ph, 12 A, 50 Hz, 5.25 kW
380-415 V, 3 ph, 14 A, 50 Hz, 6.0 kW
380-415 V, 3 ph, 14 A, 50 Hz, 6.75 kW
380-415 V, 3 ph, 16 A, 50 Hz, 7.5 kW
380-415 V, 3 ph, 18 A, 50 Hz, 8.3 kW
380-415 V, 3 ph, 18 A, 50 Hz, 9.0 kW
Standard Image Size
80 x 120 cm (32" x 48")
80 x 120 cm (32" x 48")
80 x 120 cm (32" x 48")
80 x 120 cm (32" x 48")
80 x 120 cm (32" x 48")
80 x 120 cm (32" x 48")
80 x 120 cm (32" x 48")
Standard Pallet Size
86 x 145 cm (34” x 57”)
86 x 145 cm (34” x 57”)
86 x 145 cm (34” x 57”)
86 x 145 cm (34” x 57”)
86 x 145 cm (34” x 57”)
86 x 145 cm (34” x 57”)
86 x 145 cm (34” x 57”)
Standard Frame Size (OD)
107 x 160 cm (42" x 63")
107 x 160 cm (42" x 63")
107 x 160 cm (42" x 63")
107 x 160 cm (42" x 63")
107 x 160 cm (42" x 63")
107 x 160 cm (42" x 63")
107 x 160 cm (42" x 63")
Overall Size (L x W x H)
1069.5 x 478 x 190.5 cm
(421" x 188" x 75")
1301 x 478 x 190.5 cm (512.2" x 188" x 75")
1532.6 x 478 x 190.5 cm (603.4" x 188" x 75")
1765 x 478 x 190.5 cm (695" x 188" x 75")
1996.5 x 478 x 190.5 cm (786" x 188" x 75")
2228 x 478 x 190.5 cm (877.2" x 188" x 75")
2460 x 478 x 190.5 cm (968.4" x 188" x 75")
Stations/Colors
16/6
20/8
24/10
28/12
32/14
36/16
40/18
1Consumption @ 10 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
