UNQ Razor 2228

Razor 2228

Applications

Overview

Specification

Applications We Power

Person wearing a white cropped t-shirt with a graphic of a roaring tiger, plants, a skull, and a crescent moon, and the text 'BIG FEELINGS OCTOPIED MIND'.

Fashion & Lifestyle

Black and white geometric patterned sofa cover with a houndstooth pillow and a book on the sofa.

Home Furnishing

Person holding a black and red banner with a stylized crocodile head, text reading "Noah Coronado" above and "Longview, Texas" below.

Soft Signage

Sportswear

Print Applications

Olive green long-sleeve baby shirt with a cartoon dinosaur and the text 'ROAR!!'.

Baby Garments

Hand holding three ribbed socks in beige, white, and black, each featuring a black palm tree design and text.

Socks

Tagless Neck Label

Six colorful swimming caps with various designs floating on water, including a red cap with '95', a Stitch character cap, and caps labeled TEAM BIFINS and TEAM MONO.

Swimming Cap

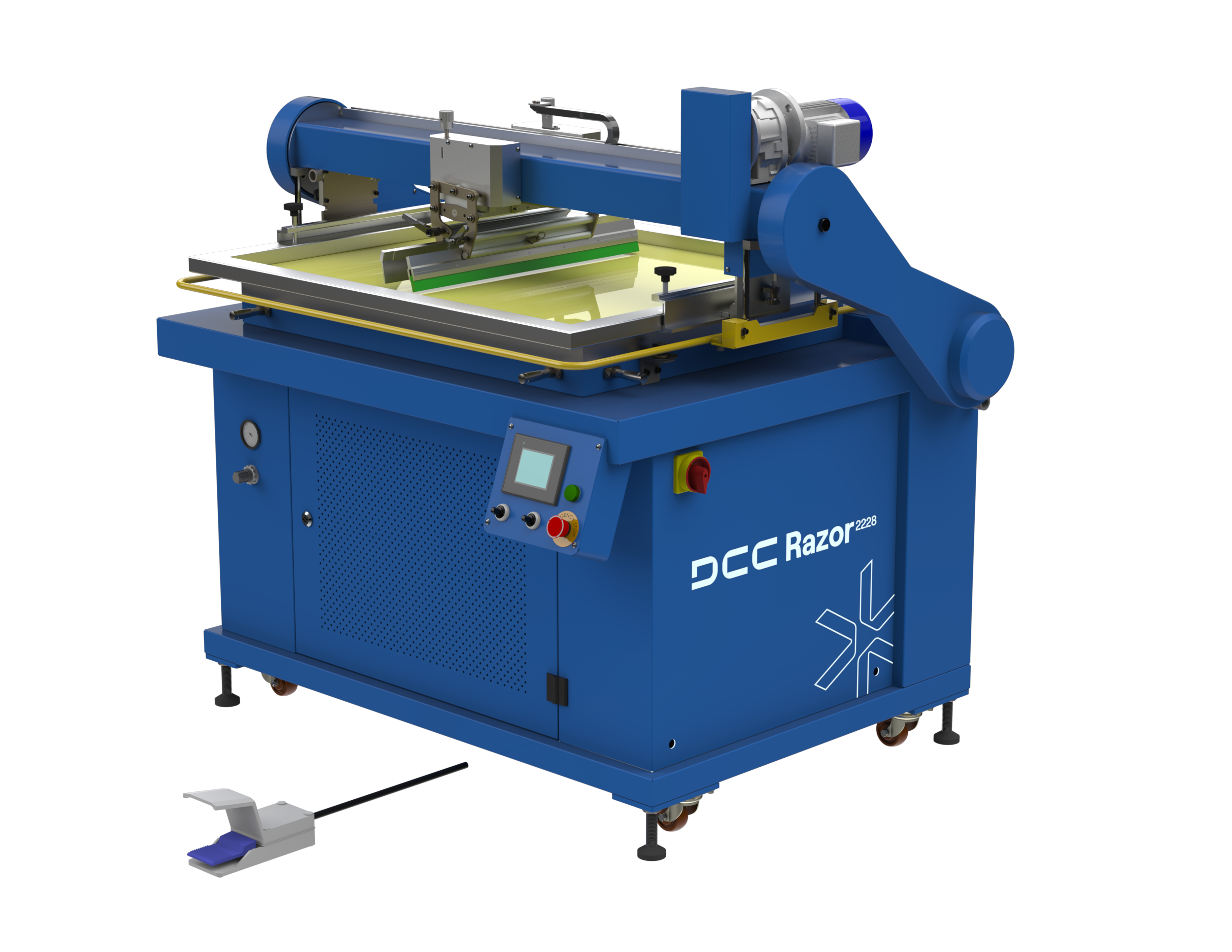

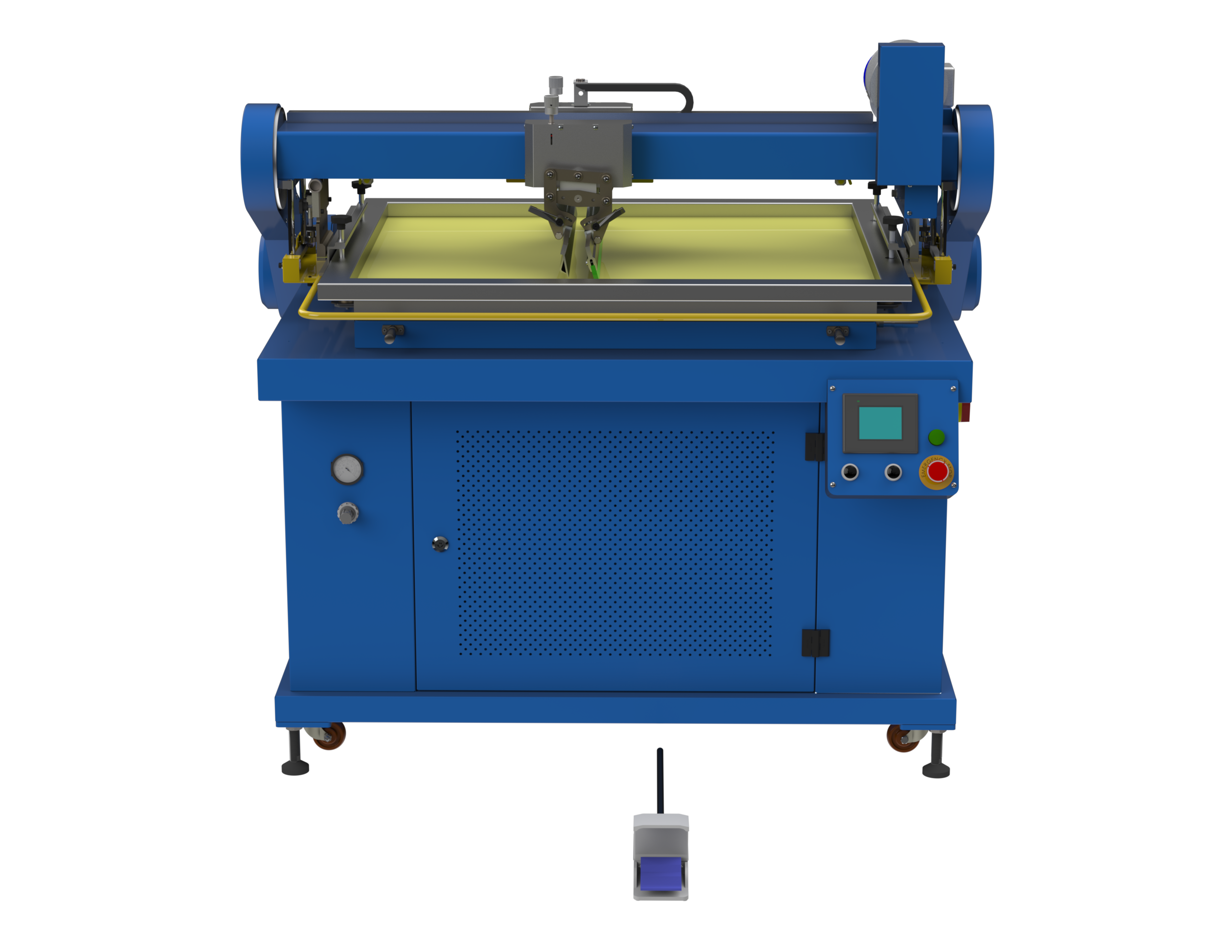

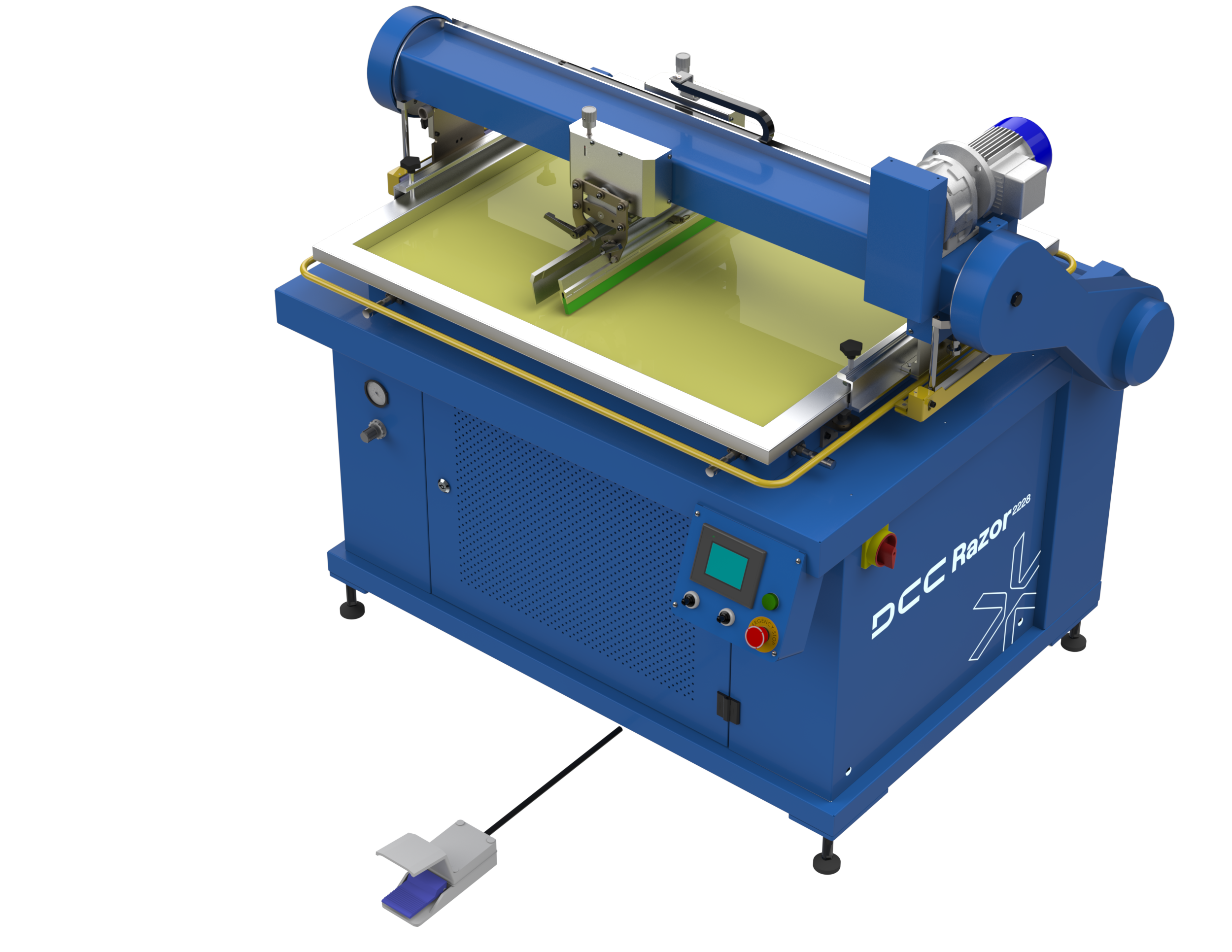

An Advanced Mid-Range Screen Printing Solution for Consistent Quality and Productivity.

This semi-automatic screen printing press is engineered to deliver reliable performance for medium-scale operations demanding both speed and high-quality output. Featuring an innovative Squeegee Pressure Equalizer and a foot-operated vacuum, it ensures precision on challenging materials. Its design prioritizes quick changeovers and easy operation, making it a flexible and efficient addition to any workshop.

Optimized Production Efficiency

Advanced Precision Control

Variable Printing Stroke Length

Independent Squeegee & Floodbar Pressure Control

Quicker Tool-Free Setup

Mobility & Handling

Smart Operation & Quality

Easy Mobility with Caster Wheels

250

PRINTS PER HOUR

1

OPERATOR REQUIRED

CMYK + OG

Color Channels

2

In-Line PreTreat Stations for Light & Dark

36

Printheads

Technical specifications

Specifications

Razor 2228

Maximum Print Area

55 x 70 cm (22" x 28")

Maximum Screen Frame Size

86 x 100 cm (34" x 40")

Minimum Screen Frame Size

66 x 50 cm (26" x 20")

Maximum Substrate Thickness

7 mm

Screen Frame Thickness

2.5 x 3.8 cm (1.0"-1.5")

Squeegee Holder Size

58 cm (23")

Floodbar Size

63 cm (25")

Electrical Specifications¹

208-230 V AC, 1 ph, 6 A, 50/60 Hz

Power Consumption

1.5 HP (1.2 kW)

Dimensions

1.5 HP (1.2 kW)

Weight

310 Kg (683 Ib)

¹Use servo stabilizer to safeguard machine from voltage fluctuation out of main supply

More from Graphics

Discover other powerful solutions designed to elevate your printing workflow.

Blue industrial screen printing machine labeled Razor 1015 with touchscreen and foot pedal.

UNQ Razor 1015

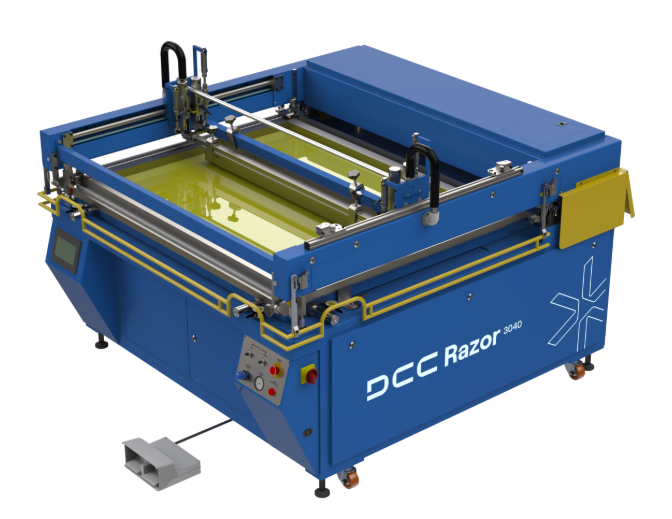

Blue industrial flatbed screen printing machine labeled Razor 3040 DDC with control panel and foot pedal.
