Epson Sublimation Ink

Sublimation Ink

Applications We Power

Fashion & Lifestyle
Home Furnishing
Soft Signage
Sportswear

Print Applications

Baby Garments
Socks
Tagless Neck Label
Swimming Cap

Epson UltraChrome DS Ink Technology: Superior Color and Durability

The 4-colour Epson UltraChrome DS Ink Technology was specially developed for dye sublimation transfer printing to ensure accurate color reproduction and high durability. This specially-formulated ink produces outstanding images with vibrant colors, intense blacks, sharp contours, and smooth gradations. Featuring a new High Density Black ink, it delivers rich blacks and extraordinary color saturation. The system is designed exclusively for the SureColor F-series printers to ensure printhead reliability and high productivity.

Epson-exclusive aqueous CMYK technology

Excellent Light- and Wash-Fastness

Features a new High Density Black Ink for Rich Blacks

Resistant to Alkaline and Acid Perspiration

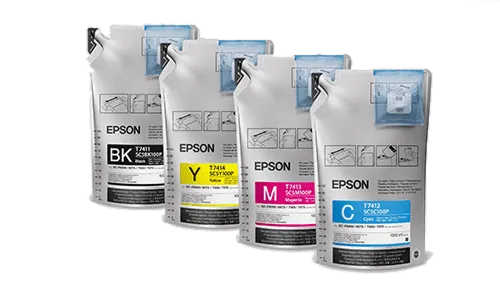

Inks supplied in 1-Litre Refill Packs to maximize production uptime

Optimized for use with Epson’s MicroPiezo TFP Print Head

Delivers a Low Total Cost of Ownership

Oeko-Tex Standard 100 Certified (Passes requirements for Class I products)

250

PRINTS PER HOUR

1

OPERATOR REQUIRED

CMYK + OG

Color Channels

2

In-Line PreTreat Stations for Light & Dark

36

Printheads

Technical specifications

Configuration
VORTEX GAS
48/10
VORTEX GAS
48/14
VORTEX GAS
48/18
VORTEX GAS
48/22
Belt Width
122.0 cm (48")
122.0 cm (48")
122.0 cm (48")
122.0 cm (48")
Burner Input Maximum
320000 Btu
320000 Btu
320000 Btu
320000 Btu
Gas Input Size
19.5 mm (3/4")
19.5 mm (3/4")
19.5 mm (3/4")
19.5 mm (3/4")
Average Gas (LPG) Consumption1
1.8 kg/hr
1.8 kg/hr
2.2 kg/hr
2.2 kg/hr
Rated Electrical Requirements2,3
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW

Specifications

DGI FT 3204X

Print Speed (4 heads)

155m/hr (1,668ft), 95m/hr (1,022ft), 50m/hr (538ft), 35m/hr (377ft)

Print Resolution (4 heads)

600 x 600dpi (2Pass), 600 x 600dpi (4Pass), 600 x 1,200dpi (8Pass), 600 x 1,800dpi (12Pass)

Print Speed (2-3 heads)

85m/hr (914ft), 60m/hr (645ft), 45m/hr (484ft)

Print Resolution (2-3 heads)

600 x 600dpi (4Pass), 600 x 900dpi (6Pass), 600 x 1,200dpi (8Pass)

Max Print Width

3,200mm / 126 inch

Max Media Load

3,220mm / 300mm / 100kg (127 inch / 12 inch / 220lb)

Print Mode

Bi-Direction / Uni-Direction, Normal / Interleave

Printhead

TCP / IP, USB 3.0

Color

4 Colors (K, C, M, Y) / 6 Colors (Fy, Fp / Lm, Lc)

Ink

DGI original water-based Dye Sublimation Ink

Interface

TCP / IP, USB 3.0

Environmental Range

Temperature: 20~30°C (68~86°F), Humidity: 40~70% .Environment condition may affect on final printing quality.

Electricity Requirements

Single phase, 200-240V, 50/60 Hz, 35A (Printer: 5A, Dryer: 30A)

*All specifications are subject to change without prior notice
