250
PRINTS PER HOUR
1
OPERATOR REQUIRED
CMYK + OG
Color Channels
2
In-Line PreTreat Stations for Light & Dark
36
Printheads
Razor 3040
Applications
Overview
Specification
Print Applications
Baby Garments
Socks
.webp)
Tagless Neck Label
Swimming Cap

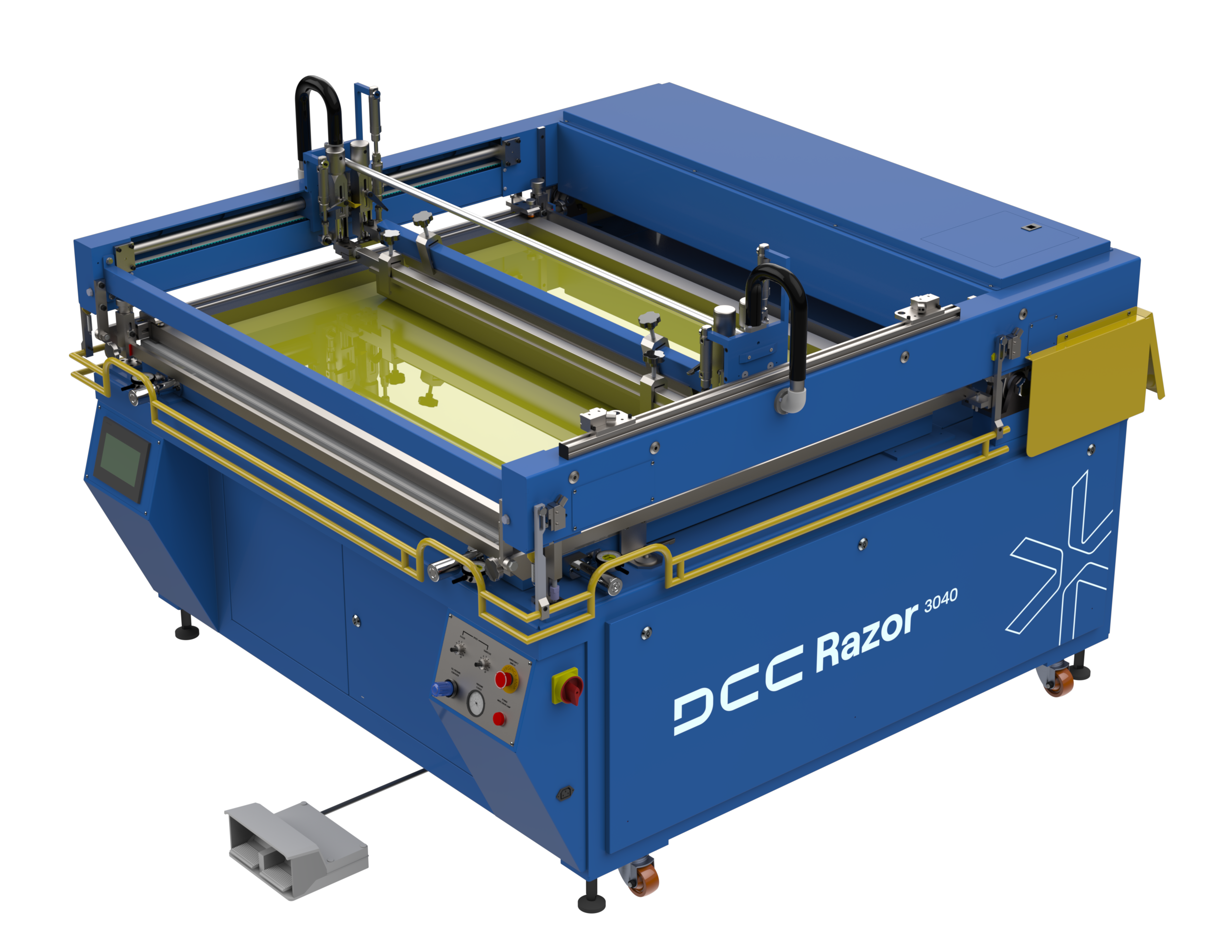

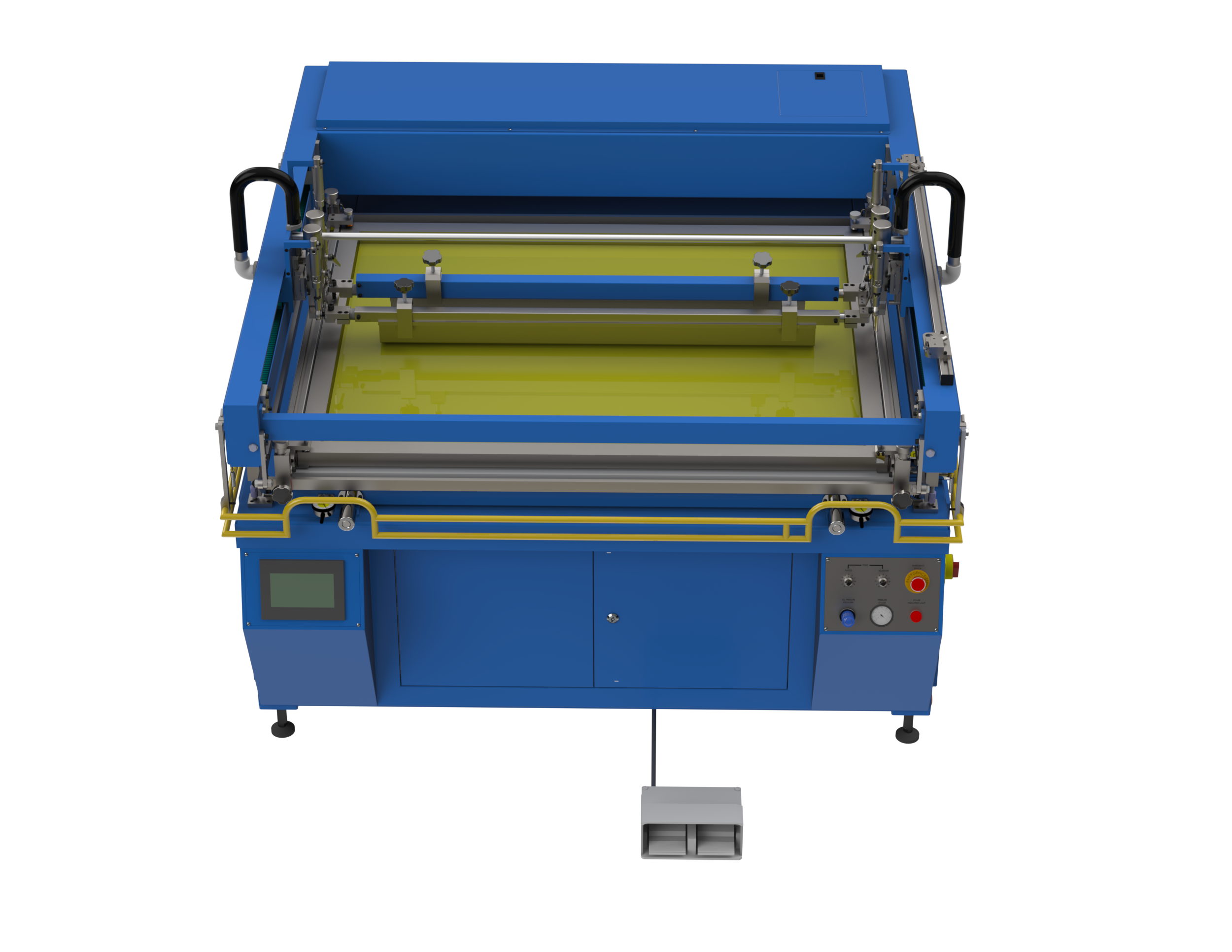

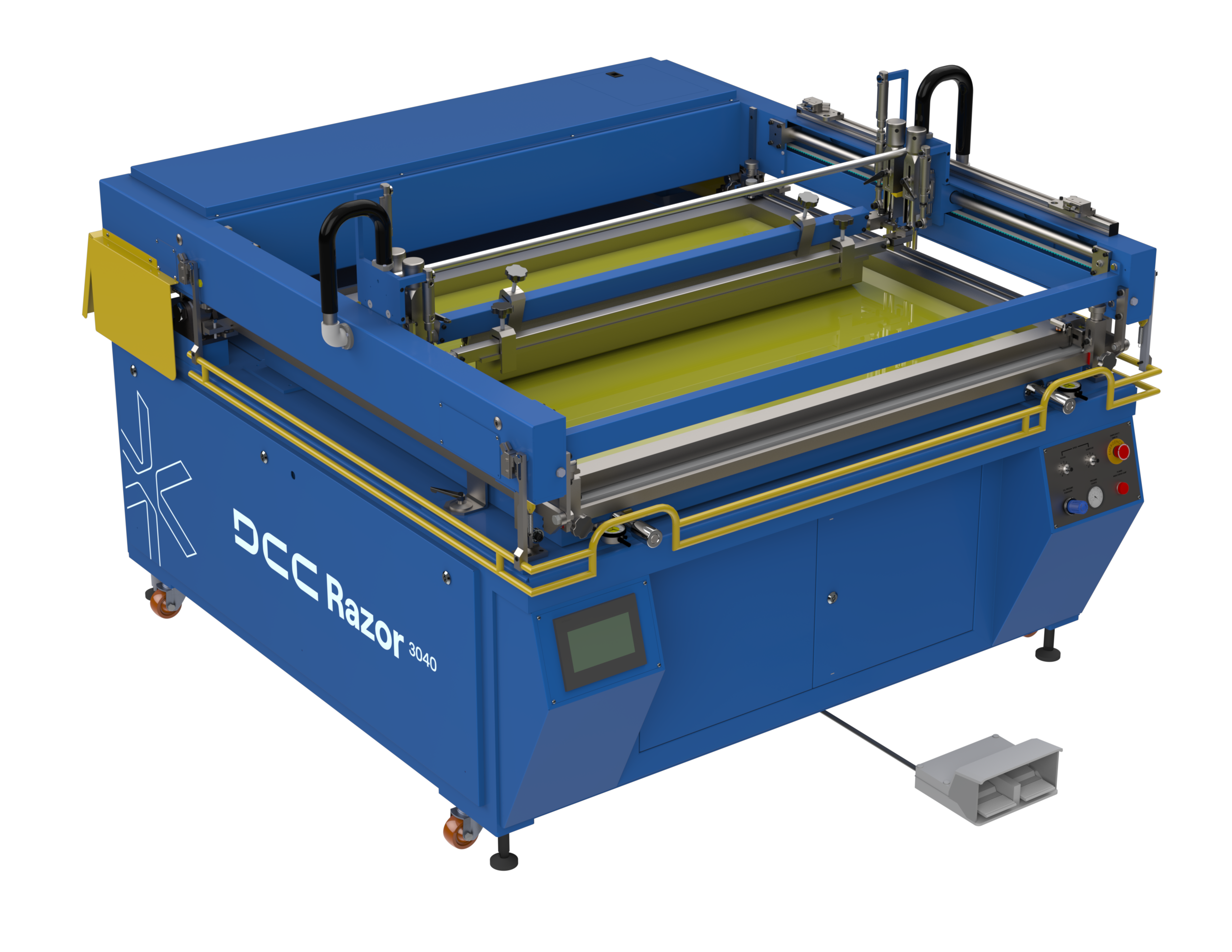

The Versatile Mid-Volume Screen Printer for High-Quality Output
This semi-automatic screen printing press is expertly designed for operators who require a balance of moderate speed and uncompromising print precision. From demanding substrates like circuit boards to standard textiles and decals, its advanced control systems, like the Squeegee Pressure Equalizer and foot-activated vacuum, ensure consistent, high-fidelity results while minimizing waste and setup time.
Precision Printing Technology
High Efficiency & Productivity
Peel Off Mechanism for High Print Quality
Maximum Dry Cycle Speed: 1000 Pcs/Per Hour
.svg)
Advanced Substrate Handling
Quicker Setup with Tool-Free Squeegee/Floodbar Installation
Ergonomics & Flexibility
Easy Mobility with Caster Wheels
Technical specifications
Specifications
Razor 3040
Maximum Print Area
30 x 40" (75 x 100 cm)
Maximum Screen Frame Size
46 x 56" (115 x 140 cm)
Minimum Screen Frame Size
20 x 22" (50 x 55 cm)
Maximum Substrate Thickness
20 mm
Screen Frame Thickness
1.0 - 1.5"
Squeegee Holder Size
42" (107 cm)
Floodbar Size
44" (112 cm)
Electrical Specifications1
208-230 V AC, 16 Amps, 1 Ph, 50/60 Hz
Power Consumption
3.5 HP / 2.6 kW
Air Consumption
Max. 6 kg /cm², 95 Lit / Min
Dimensions
6.0' (L) x 6.5' (W) x 4.5' (H),183 (L) x 198 (W) x 137 (H) cm
Weight
812 kg
1Use servo stabilizer to safeguard machine from voltage fluctuation out of main supply
