250
PRINTS PER HOUR
1
OPERATOR REQUIRED
CMYK + OG
Color Channels
2
In-Line PreTreat Stations for Light & Dark
36
Printheads

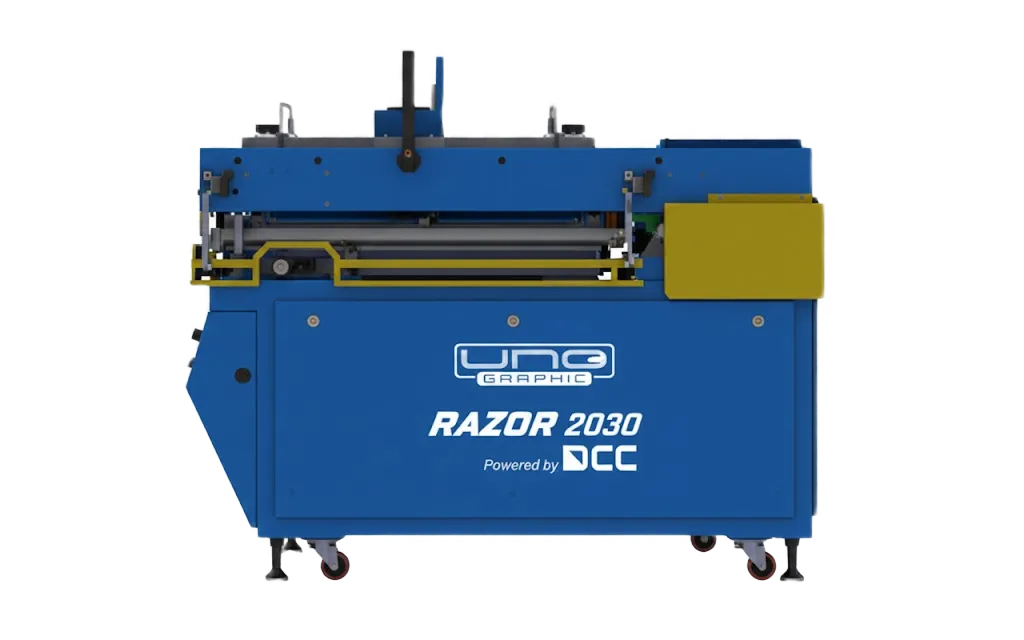

Razor 2030
Applications
Overview
Specification
Print Applications
Baby Garments
Socks
.webp)
Tagless Neck Label
Swimming Cap
YOUR COMPANION FOR A NEW LEAP IN GRAPHIC PRINTING
Achieve Limitless Applications for Maximum Profitability with this advanced semi-automatic press. It is the Ideal choice for applications where absolute precision is critical. This machine combines high-speed output (1000 pcs/hr) with unparalleled control, featuring a 3-Point Micro Registration System and Adjustable Squeegee Skew Angle to ensure flawless results on all substrates, including challenging, uneven, or curly materials.
3 Point Micro Registration System
Maximum Dry Cycle Speed: 1000 Pcs/Per Hour
Adjustable Squeegee Skew Angle
Quick & Tool-Free Print Stroke Length Adjustment
.svg)
Advanced Control & Flexibility
Mobility & Operation
Independent Squeegee & Floodbar Pressure Control
Caster Wheels for Easy Mobility
Technical specifications
Specifications
Razor 2030
Maximum Print Area
36 x 46" (90 x 115 cm)
Maximum Screen Frame Size
20 x 22" (50 x 55 cm)
Minimum Screen Frame Size
20 x 22" (50 x 55 cm)
Maximum Substrate Thickness
20 mm
Screen Frame Thickness
1.0 - 1.5"
Squeegee Holder Size
32" (81 cm)
Floodbar Size
34" (86 cm)
Electrical Specifications1
208-230 V AC, 16 Amps, 1 Ph, 50/60 Hz
Power Consumption
3 HP/2.3 kW
Air Consumption
Max. 6 kg /cm², 95 Lit / Min
Dimensions
5.2' (L) x 5.6' (W) x 4.5' (H),158 (L) x 171 (W) x 137 (H) cm
Weight
670 kg
1Use servo stabilizer to safeguard machine from voltage fluctuation out of main supply
