Vortex
Applications
Overview
Specification

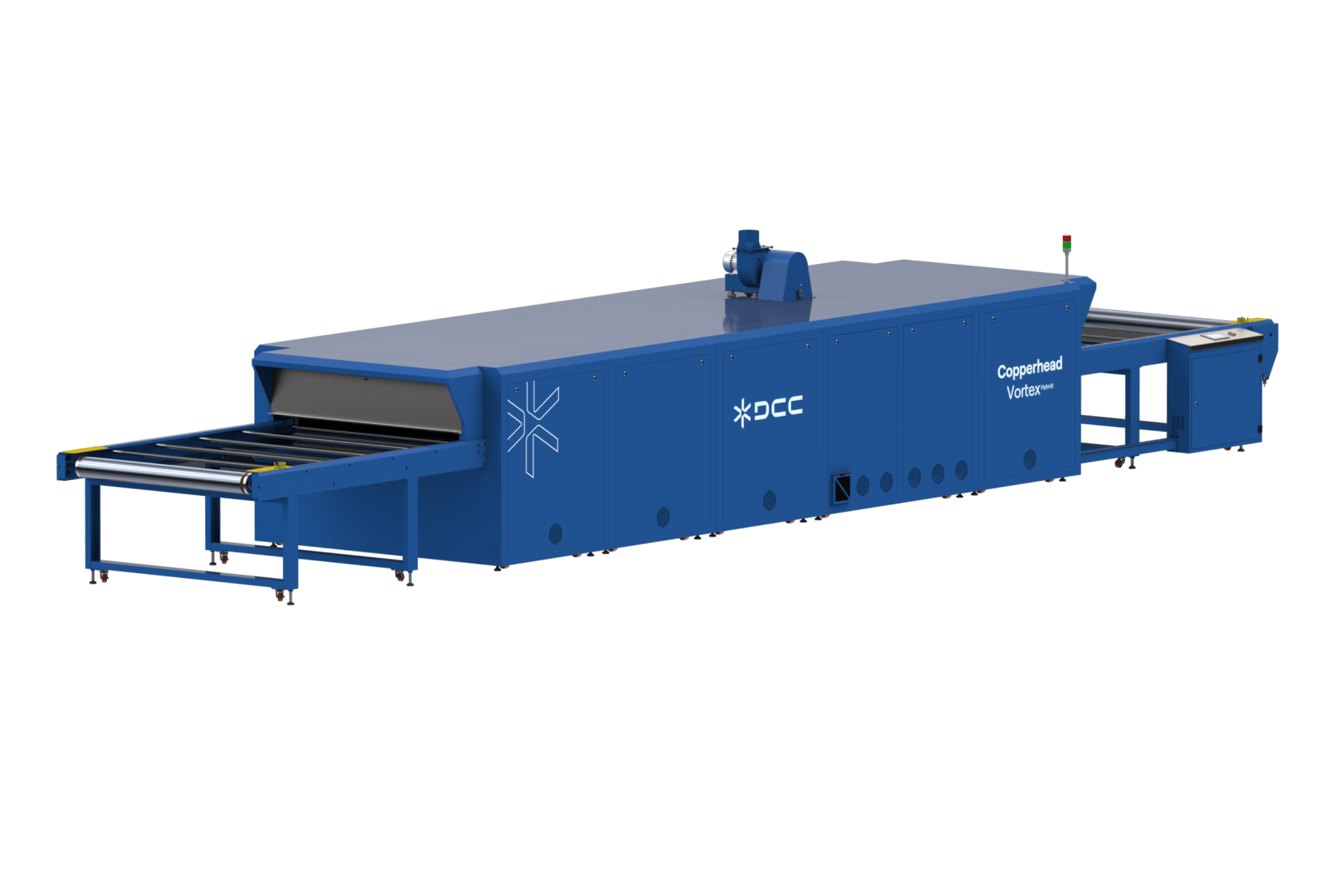

An Advanced Industrial
textile conveyor dryer for all your
large-scale curing needs.
Vortex is a high-performance industrial textile dryer built for large-scale printing. With modular expansion, energy-efficient air-handling, and Cool-Skin technology, it offers up to 90% air recirculation while keeping the exterior cool. Available in gas and electric variants, it ensures reliable, low-maintenance curing for plastisol, water-based, and DTG inks.
Advanced Air Handling Technology
Smart Control Center
Easy Maintenance
Sturdy Construction & Design
.svg)
Multipe Variants
Electric Cal-Rod Heaters
German Make Gas Burner
Air Knives Channels
Technical specifications
Configuration
VORTEX GAS
48/10
48/10
VORTEX GAS
48/14
48/14
VORTEX GAS
48/18
48/18
VORTEX GAS
48/22
48/22
Belt Width
122.0 cm (48")
122.0 cm (48")
122.0 cm (48")
122.0 cm (48")
Burner Input Maximum
320000 Btu
320000 Btu
320000 Btu
320000 Btu
Gas Input Size
19.5 mm (3/4")
19.5 mm (3/4")
19.5 mm (3/4")
19.5 mm (3/4")
Average Gas (LPG) Consumption1
1.8 kg/hr
1.8 kg/hr
2.2 kg/hr
2.2 kg/hr
Rated Electrical Requirements2,3
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW
DOWNLOAD PDF
More from Dryers
Discover other powerful solutions designed to elevate your printing workflow.
.png)

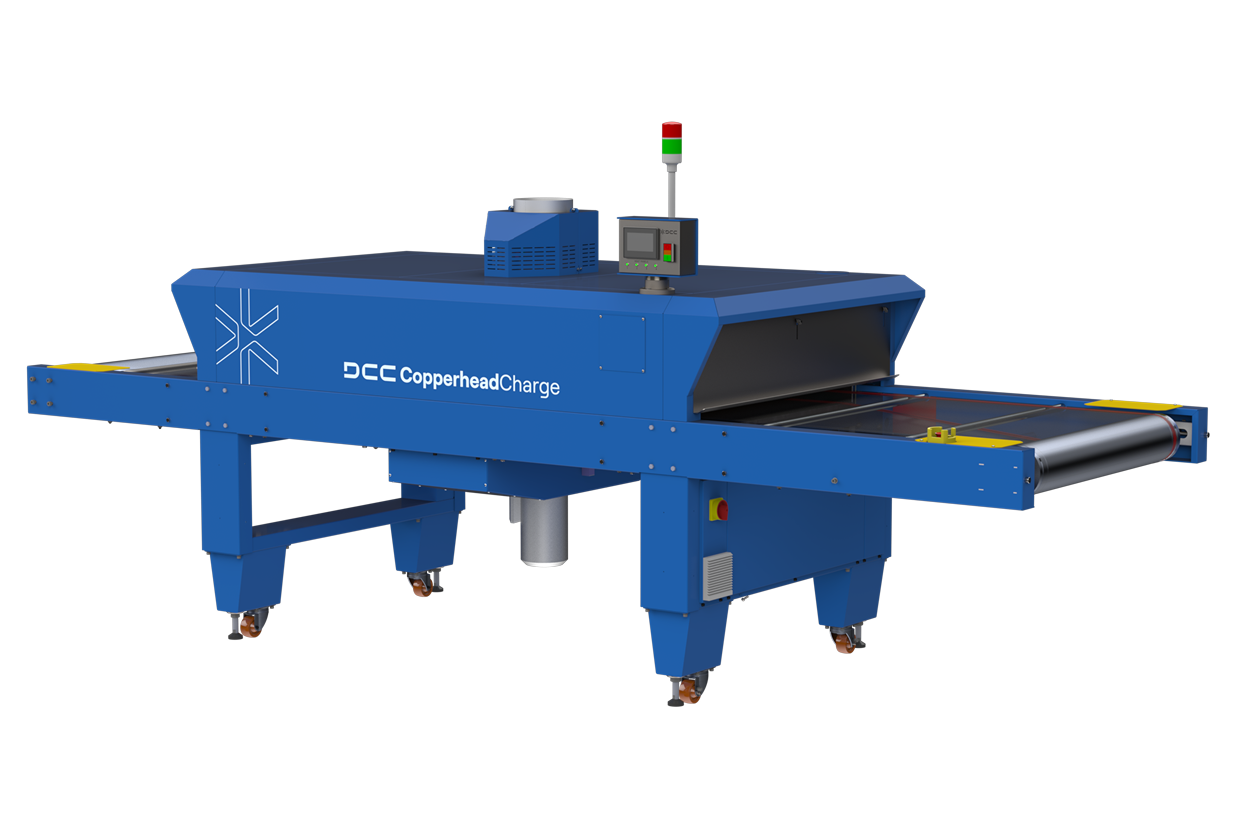

CopperheadCharge
