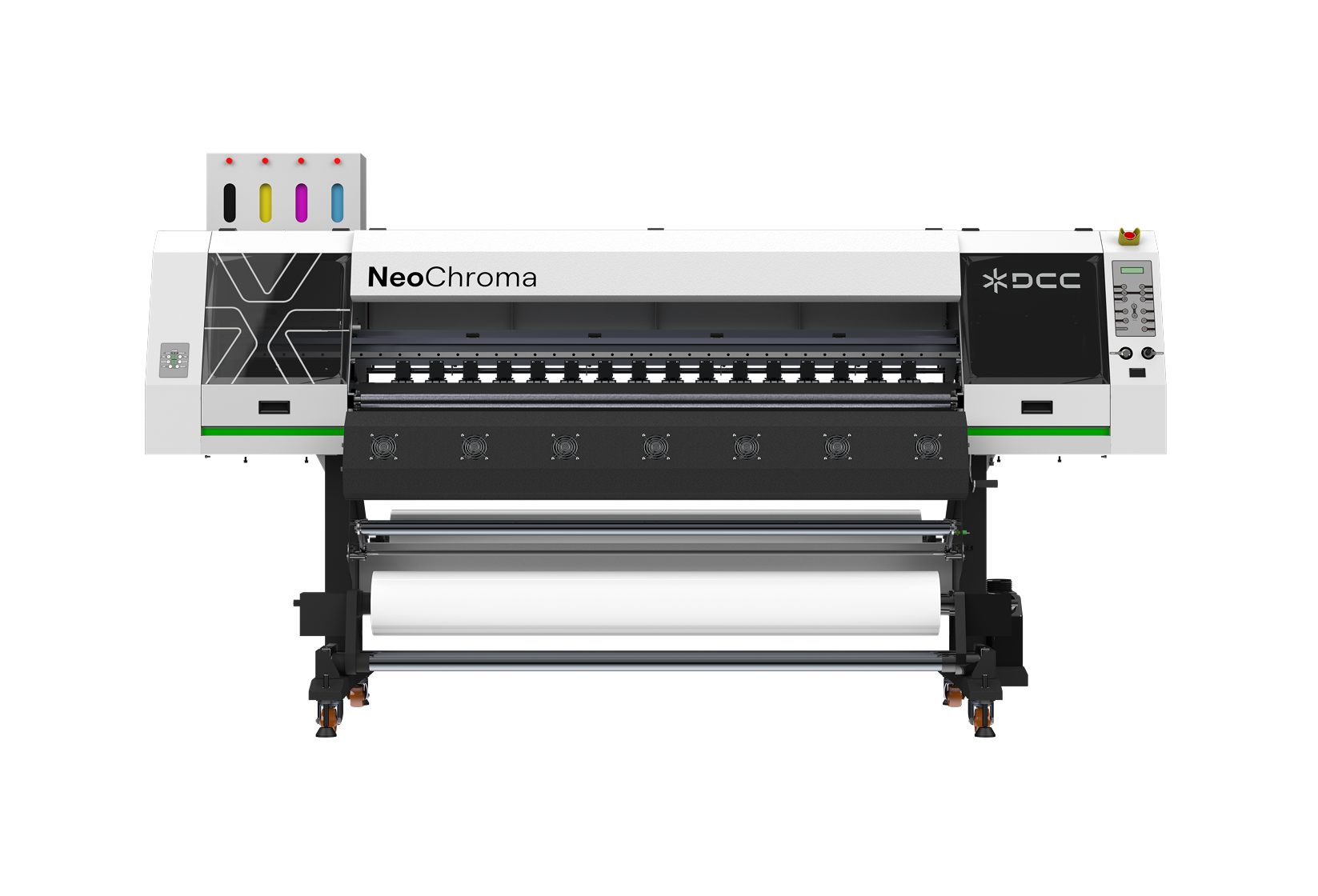

The Smart Dye
Sublimation Printer
Engineered for uncompromising speed and precision. Seamless printing is guaranteed with 5L ink tanks, low-ink alerts, and smart quartz curing. Flawless tension control and simplified maintenance empower you to print more and grow faster.
Print with Unmatched Precision
Achieve superior quality with high-speed Epson I3200-A1 printheads, delivering up to 720×1200 dpi. The 4-pass mode balances speed and detail, while auto capping and wiping ensure consistent performance and longer head life.
Curing Made Smarter
The intelligent curing system uses four quartz heaters with auto and manual controls, ensuring even curing, faster drying, and consistently high-quality results.
Control at Your Fingertips
The 7" touchscreen HMI offers an intuitive interface for easy setup, quick adjustments, and smooth monitoring—so you spend less time configuring and more time printing.
Know before you run low
With 5L CMYK tanks and 220ml secondary tanks, printing stays uninterrupted even during refills. Independent low-ink alerts and a smart waste tank with full alarm keep operations clean and worry-free.
.svg)
Flawless Paper Feeding
The auto take-up and media loading system ensure quick roll changes and perfect tension control, delivering smooth, stable feeding throughout production.
Adapt with ease
Easily switch between paper thicknesses with vacuum-controlled adjustments and a manual pincher lift, ensuring smooth, precise handling and consistent print quality.
Technical specifications
Specifications
DS NeoChroma S-44100+ Pro
DS NeoChroma S-44200+ Pro
DS NeoChroma S-44300+ Pro
DS NeoChroma S-44350 Pro
Print Head
Epson I3200 A1 Print Heads (1)
Epson I3200 A1 Print Heads (2)
Epson I3200 A1 Print Heads (3)
Epson I3200 A1 Print Heads (4)
Print Resolution
360 x 600 dpi (1.9 Pass) : 48.6 m²/hr360 x 1200 dpi (2 Pass) : 46.3 m²/hr360 x 1800 dpi (3 Pas) : 32.6 m²/hr720 x 1200 dpi (4 Pass) : 24.6 m²/hr
360 x 600 dpi (1.9 Pass) : 84.7 m²/hr360 x 1200 dpi (2 Pass) : 80 m²/hr360 x 1800 dpi (3 Pas) : 60.4 m²/hr720 x 1200 dpi (4 Pass) : 45.3 m²/hr
360 x 600 dpi (1.9 Pass) : 113 m²/hr360 x 1200 dpi (2 Pass) : 108.1 m²/hr360 x 1800 dpi (3 Pas) : 85.6 m²/hr720 x 1200 dpi (4 Pass) : 63.9 m²/hr
360 x 1200 dpi (2 Pass) : 133.7 m²/hr360 x 1800 dpi (3 Pas) : 107.5 m²/hr720 x 1200 dpi (4 Pass) : 84.5 m²/hr
Acceptable Media
Width: 1625mm (64")
Thickness: Min. 44 gsm
Weight: 60 kgs
Ink System
Colour: CMYK
Ink Cartridges: 5L Main Ink Tanks + 220mL Secondary Ink Tanks
Ink Curing
Intelligent Ink Curing System
Interface
Gigabit Ethernet (GbE - Cat6)
Power
Machine Power1,2: 1 kW; 208~230 VAC; 6A; 50/60 Hz
Heater Power1: 3.5 kW; 208~230 VAC; 20A; 50/60 Hz
Dimensions(Width X Depth X Height)
3042 mm (120") x1000 mm (39.3") x 1765 mm (69.5")
Weight
515 kgs (1133 lbs)
Environment
Power On: Temp : 15° to 25°C (59° to 77° F) | Humidity : 35 to 80% (No Condensation)
Power Off: Temp : 5° to 40° C (41° to 104° F) | Humidity : 20 to 80% (No Condensation)
Accessories
Auto Moisturizing/Cleaning System; Media Loading & Take-Up System;Auto Pivot Roller System, Tension Roller, Intelligent Curing System;Low-Ink Alarm System
1General usage may vary, but will be significantly less than stated values.
2Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
