Speed Redefined. Fastest In Its Class

Product Info

Push boundaries with an astonishing printing speed of up to 375 m2/hr, designed to handle large-scale production requirements without compromising on quality. Experience unmatched precision, setting new benchmarks for efficiency.

Speed Meets Scalability

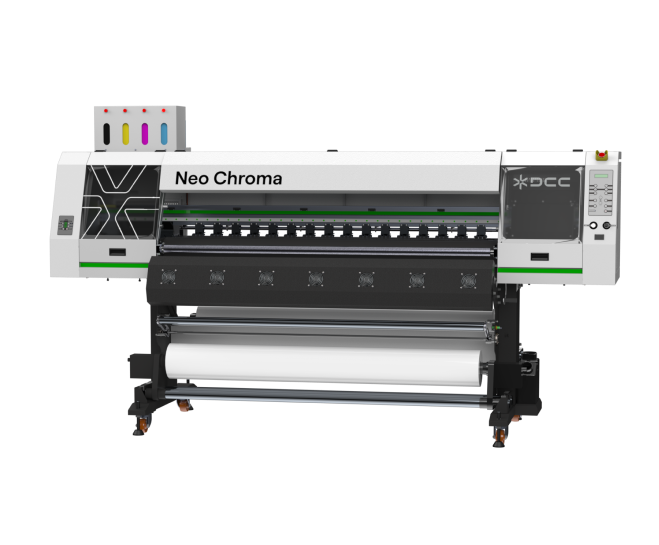

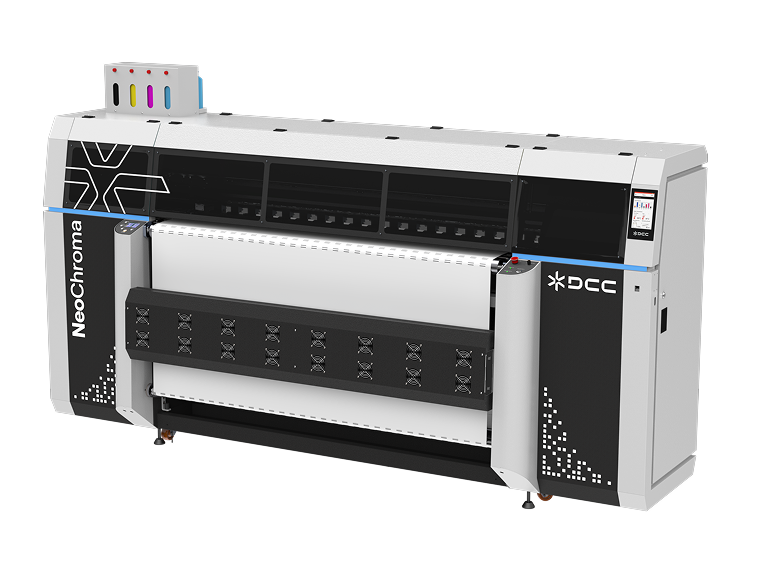

Faster, Smarter and Upgradable Dye-Sublimation Printer

01

Controls at your fingertips

Instant voice alerts for all activities, with voice narration to identify issues, ensuring smooth operations and high safety standards.

02

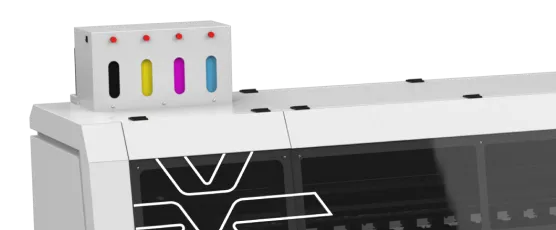

Know before you run low

The built-in individual audio and visual low-ink alarms for each of the 4 ink tanks ensure that you are always informed about ink levels.

03

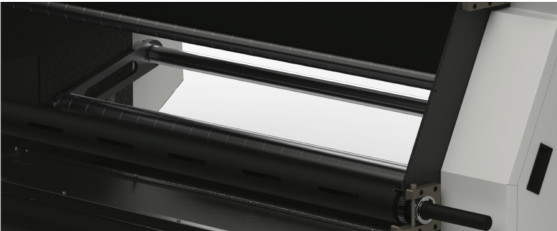

Flawless paper feeding

Supports up to 18" rolls to reduce changes, cut setup time, and boost high-volume efficiency.

Product Info

Push boundaries with an astonishing printing speed of up to 375 m²/hr, designed to handle large-scale production requirements without compromising on quality. Experience unmatched precision, setting new benchmarks for efficiency.

Printer Features

Dryer Features

A Machine with Everything Built-In.

01

Low in Power Consumption, High in Performance

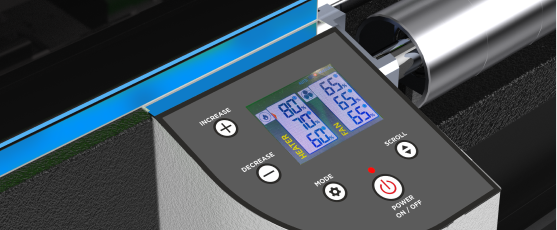

The intelligently designed curing system ensures optimal drying while reducing power consumption by up to ~12%, all controlled from a single panel for effortless setup.

02

Vibration-Free Performance with Solid Core Technology

Stability redefined with single-structure Cold-Rolled High Tensile Steel

03

Maximum Output, Minimum Setup Time

18” diameter roll ensuring maximum efficiency and reducing setup time

Technical specifications

Configuration
NeoChroma S-45350+
NeoChroma S-45450+
NeoChroma S-45500
Print Head
Epson I3200 A1 Print Heads (4)
Epson I3200 A1 Print Heads (6)
Epson I3200 A1 Print Heads (8)
Print Resolution and Speed
360 x 1200 dpi (1 Pass):
188.01 m²/hr
360 x 1200 dpi (1.6 Pass):
121.73 m²/hr
360 x 1200 dpi (2 Pass):
88.52 m²/hr
360 x 1200 dpi (1 Pass):
279.12 m²/hr
360 x 1200 dpi (1.6 Pass):
181.1 m²/hr
360 x 1200 dpi (2 Pass):
131.22 m²/hr
360 x 1200 dpi (1 Pass):
375 m²/hr
360 x 1200 dpi (1.6 Pass):
238 m²/hr
360 x 1200 dpi (2 Pass):
173 m²/hr
Acceptable Media
Width 1930 mm (76”)
Thickness Min. 30 gsm
Outer Diameter 460 mm (18”)
Roll Length 3000mtrs. (9850 ft.)
Width 1930 mm (76”)
Thickness Min. 30 gsm
Outer Diameter 460 mm (18”)
Roll Length 3000mtrs. (9850 ft.)
Width 1930 mm (76”)
Thickness Min. 30 gsm
Outer Diameter 460 mm (18”)
Roll Length 3000mtrs. (9850 ft.)
Ink System
Colour CMYK

Ink Cartridges
5L Main Ink Tanks + 1.8L Secondary Ink Tanks
Ink Curing
Intelligent Curing System
DOWNLOAD PDF

250

PRINTS PER HOUR

1

OPERATOR REQUIRED

CMYK + OG

Color Channels

2

In-Line PreTreat Stations for Light & Dark

36

Printheads

Technical
specifications

Stations/Colors
12 / 10
PrintHeads
(6 Epson I3200 A1 Print Heads – (2) CMYK, (4) White
Machine Weight
720 x 1800 DPI, 6-Pass, 15.5 m²/hr (25.4 Linear m/hr / 83.3 Linear ft./hr)
720 x 2400 DPI, 8-Pass, 11.5 m²/hr (18.8 Linear m/hr / 61.7 Linear ft./hr)
Diameter
478cm(188")
Air Consumption
450L/min(15.9cfm)
DOWNLOAD PDF

250

PRINTS PER HOUR

1

OPERATOR REQUIRED

CMYK + OG

Color Channels

2

In-Line PreTreat Stations for Light & Dark

36

Printheads

Wide range of applications

Fashion

Sportswear

Signage

Home Decor

Applications We Power

Fashion & Lifestyle
Home Furnishing
Soft Signage
Sportswear
