250
PRINTS PER HOUR
1
OPERATOR REQUIRED
CMYK + OG
Color Channels
2
In-Line PreTreat Stations for Light & Dark
36
Printheads

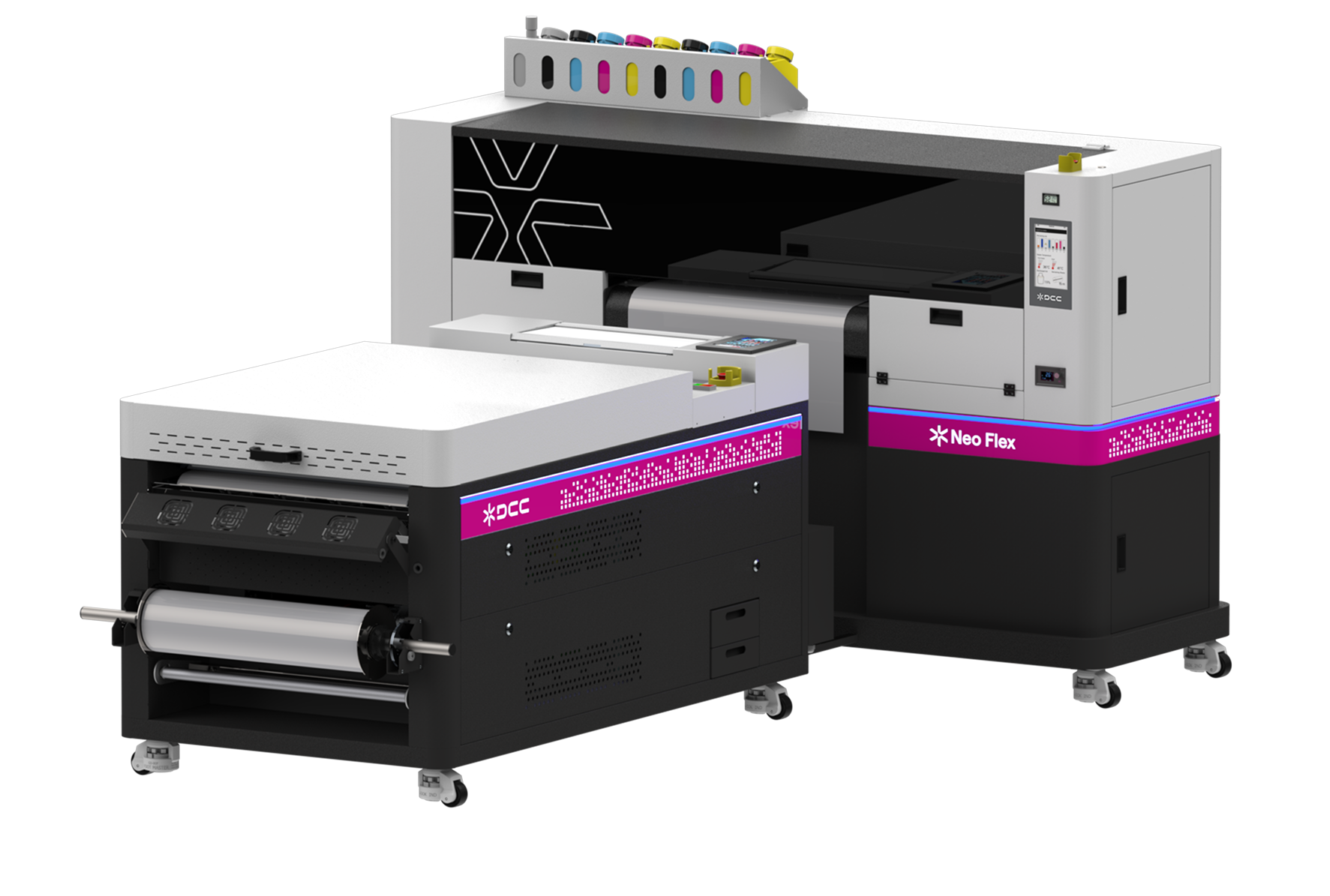

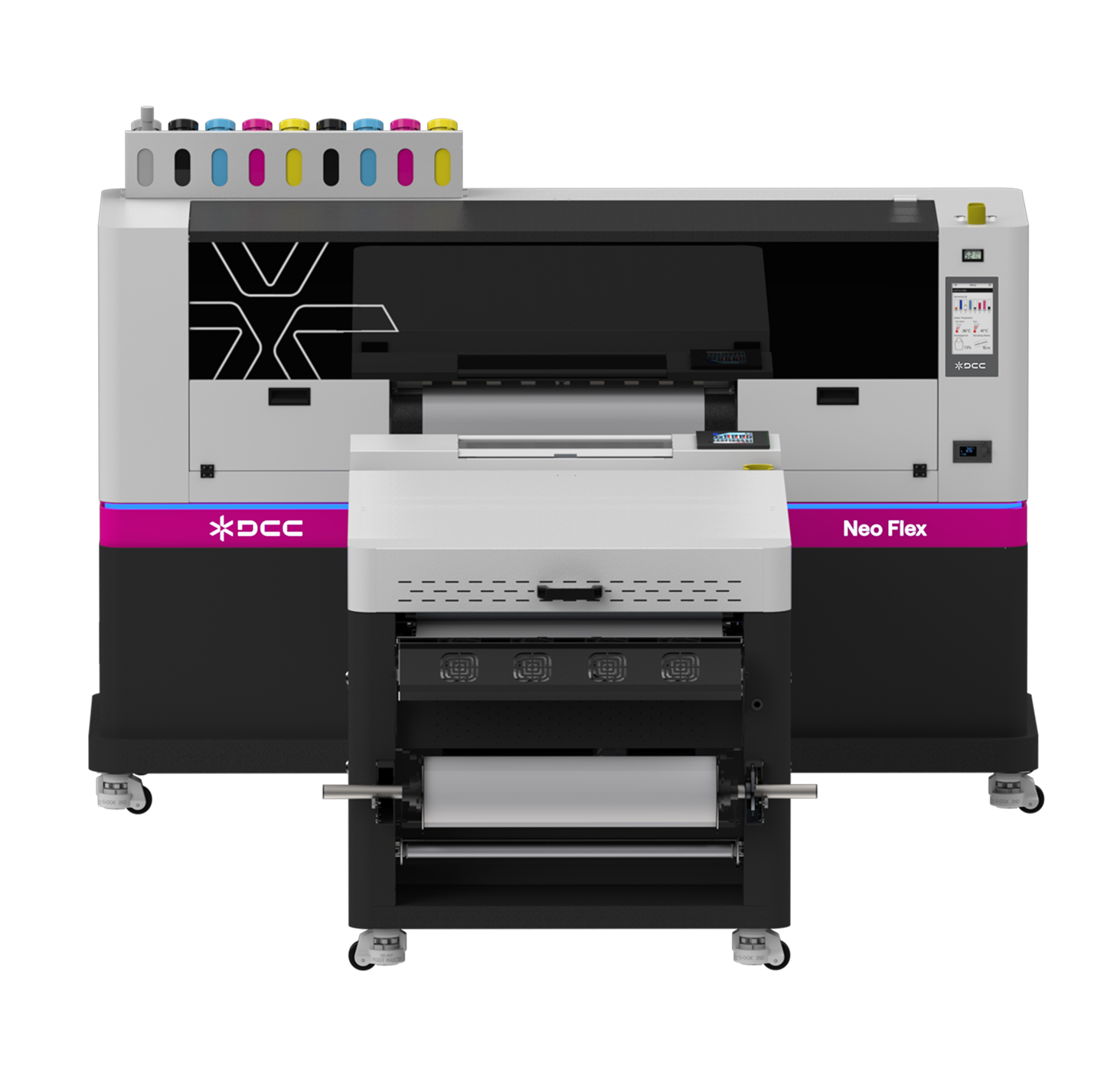

The Neo Flex is a fully integrated, high-speed DTF ecosystem that brings together printer, dryer, inks, films, powder, and SmartRIP software into one seamless system. Designed and engineered entirely by DCC, it eliminates patchwork setups and delivers total control, unmatched consistency, and flawless results.
The NeoFlex is a fully integrated, high-speed DTF ecosystem that brings together Printer, Dryer, Inks, Films, Powder, and SmartRIP Software into one seamless system. Designed and engineered entirely by DCC, it eliminates patchwork setups and delivers total control, unmatched consistency, and flawless results.
From auto head cleaning, smart powder curing, and reliable service, every feature is designed to keep your machine running and your jobs flowing.
With 6 Epson I3200 heads, intelligent white ink recirculation, and rapid film feed tracking, NeoFlex delivers fast, consistent output hour after hour, ideal for both short runs and scaling up.
Our SmartRIP software is built for production with features like smart nesting, color profiling, and print queue management to minimize waste and maximize quality.
Unlike setups cobbled together with third-party dryers or random consumables, NeoFlex is a fully integrated solution: Printer, Dryer, RIP Software, Inks, Films, Powder, all optimized and tested to work together.
01
Built-in Preventive Maintenance
Automatic capping and wiping systems keep your printheads clean, reduce downtime, and improve long-term consistency so you don’t have to babysit your machine.
02
Smart Ink Management System
With 1.7L tanks, auto white ink recirculation, and battery-powered low-ink alerts, NeoFlex ensures uninterrupted printing and longer printhead life no clogs, no hassle.
03
Precision Film Handling
A push-button pincher, vacuum adjustment, and pivot roller ensure smooth film handling without wrinkles or slippage delivering clean alignment, less waste, and superior output.
04
Parallel Precision Printheads
Equipped with 6 Epson I3200-A1 heads—3 for CMYK and 3 for White NeoFlex delivers stable white underbase, vivid CMYK output, and consistent color density for faster, perfectly aligned prints.
01
Automated Powdering Precision
Automated dispenser and shaker ensure even adhesive coverage, minimizing material waste.
02
SYNC with Confidence
Film sensor coordinates output; independent winding controls allow precise tension handling.
03

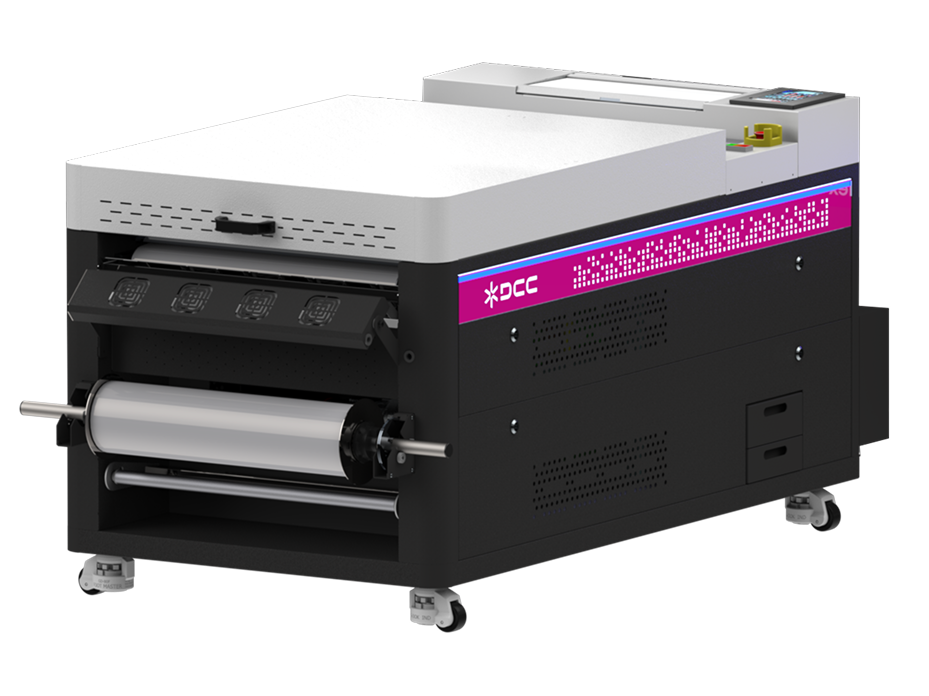

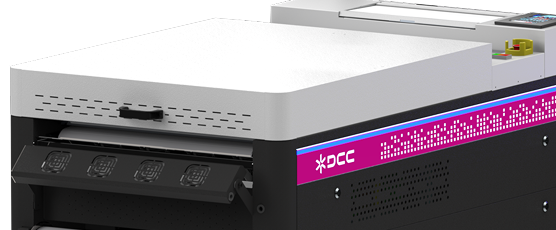

Heat Shield Drying Technology
IR heaters, Heat-Shield, and smart programs ensure safe, efficient, consistent drying.
04
Air Quality Assured
Dual-layer filtration ensures a safe, smoke-free workspace, compliant with health norms.
01
Film Feed That Flows
Vacuum rollers, adjustable belts, and sensors ensure smooth film transport with minimal jams or creases.
02

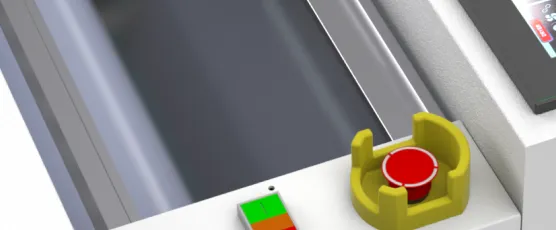

Command with a Touch
The 7" color HMI touch display offers intuitive control over heaters, shakers, and winding for easy operation.
03
Twin Powder Catcher Trays
Dual powder catcher trays reduce mess, cut waste, and recover reusable powder for efficient, clean operation.
04
Performance That Adapts
Easily switch between 6-pass for speed and 8-pass for premium detail—NeoFlex delivers both performance and precision without compromise.
05
Smart RIP, Smarter Workflow
DCC’s Smart RIP Software streamlines job nesting, manages multiple queues, and ensures precise color—saving film, time, and effort.

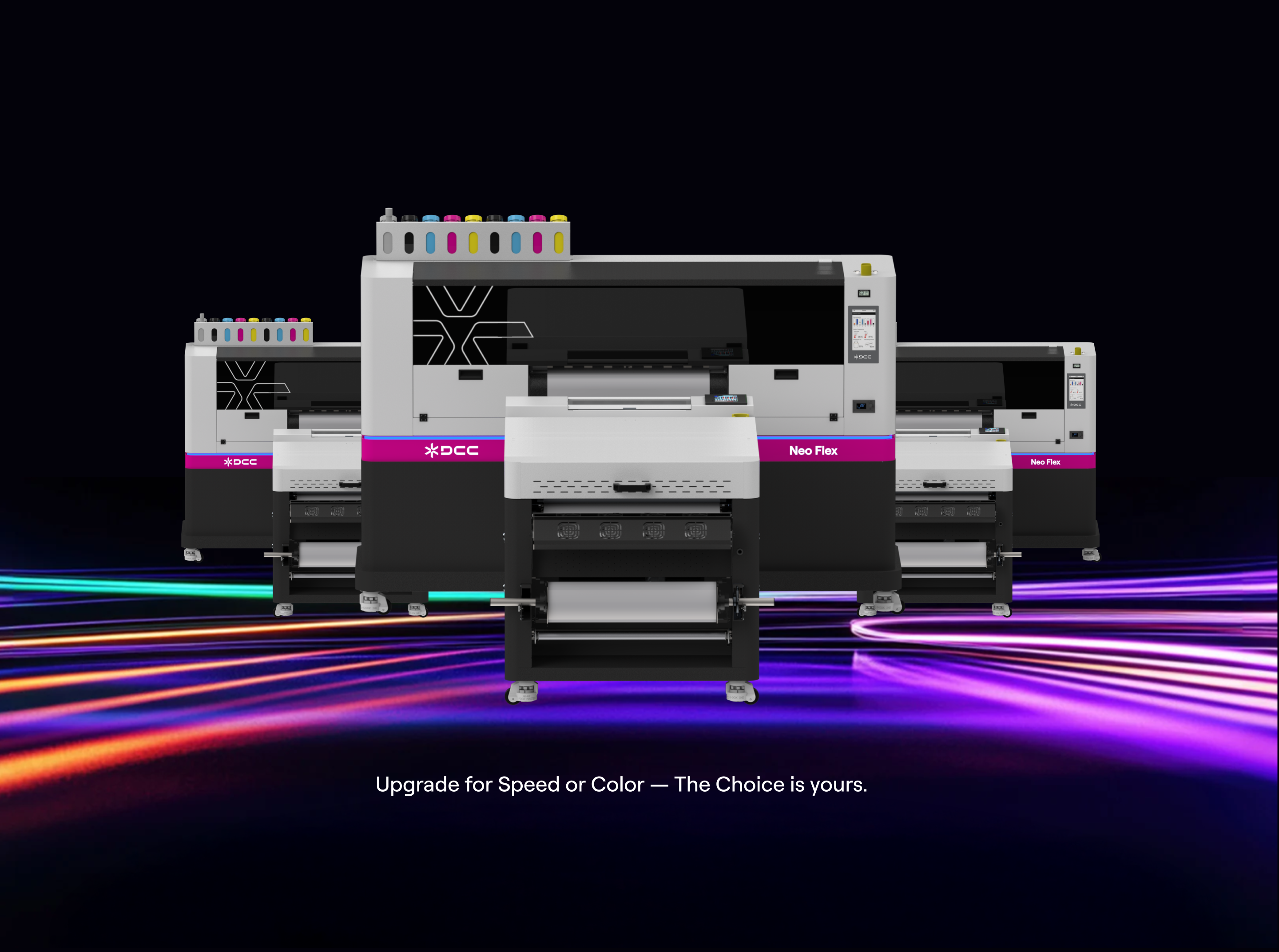

Specifications
Neo Flex F-5130+ Pro
NeoFlex F-51450 Pro
NeoFlex F-51460 Pro
Print Head
(4) Epson I3200 A1 Print Heads — (2) CMYK,
(2) White
(6) Epson I3200 A1 Print Heads — (2) CMYK,
(4) White
(6) Epson I3200 A1 Print Heads — (2) CMYK,
(2) ORVG, (2) White
Print Resolution and Speed
720 x 1800 DPI, 6-Pass, 16.5 m²/hr (27 Linear m/hr / 88.6 Linear ft./hr)720 x 2400 DPI, 8-Pass, 12.5 m²/hr (20.5 Linear m/hr / 67.25 Linear ft./hr)
720 x 1800 DPI, 6-Pass, 9.5 m²/hr(15.9 Linear m/hr / 52.2 Linear ft./hr)720 x 2400 DPI, 8-Pass, 8 m²/hr(13.3 Linear m/hr / 43.8 Linear ft./hr)
720 x 1800 DPI, 6-Pass, 9.5 m²/hr(15.9 Linear m/hr / 52.2 Linear ft./hr)720 x 2400 DPI, 8-Pass, 8 m²/hr(13.3 Linear m/hr / 43.8 Linear ft./hr
Color Mode
CMYK & White
CMYKORVG & White
Ink System
White Ink Auto Circulation Supply System
Ink Type
Eco-Friendly Water Based Ink
Printing Media
24" PET Transfer Film
Media Transmission
Automatic Roll Out & Film Take Up System
Interface
Gigabit Ethernet
USB 3.0
Included RIP Software
DCC RIP
Work Room Temperature
16 - 27°C (61 - 81°F)
Work Room Humidity
40%-60% (No Condensation)
Electrical Requirements Printer1,2
208/230 V, 1 ph, 4.5 A 50/60 Hz, 0.75 kW
Electrical Requirements Dryer1
208/230 V, 1 ph, 39 A 50/60 Hz, 8.2 kW
Printer Dimensions (L x W x H)
73.8 x 211.3 x 154 cm (29" x 83.2" x 61")
Dryer Dimensions (L x W x H)
193 x 95.5 x 94 cm (76" x 37.6" x 37"
Minimum WorkingSpace (L x W)
335.3 x 365.7 cm (11' x 12')
Printer Machine Weight
304 kgs (670 lbs.)
Dryer Machine Weight
345kgs (761 lbs.)
*1General usage may vary, but will be significantly less than stated values.
2Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
