The Sun Light 4656: Precision Exposure for Fine Details

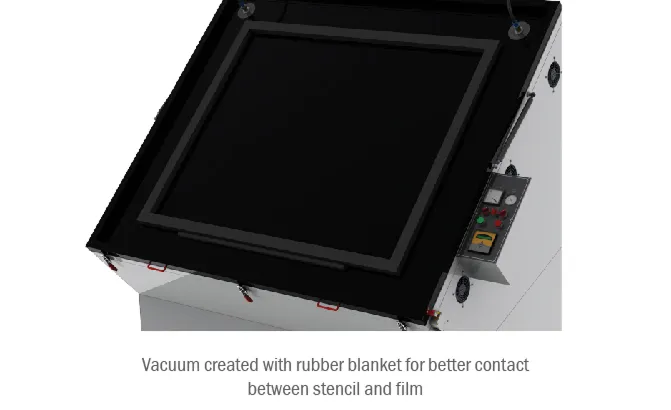

The Sun Light 4656 is the best system to reproduce fine details, making it ideal for all modern photopolymer emulsions, capillary films, and even thick films exposing. It features a high-quality Metal Halide Lamp coupled with a Mirror Finish Reflector that delivers faster exposure and increased light efficiency. The design incorporates a high-quality vacuum system and a digital light integrator to ensure perfect, consistent, and repeatable exposure results every time.

Reproduces Fine Details and Sharp Edges

Metal Halide Lamp

Light Integrator (Ensures perfect exposure with consistency and repetition accuracy)

Mirror Finish Reflector (Delivers faster exposure and increases light efficiency)

Automatically compensates exposure time as the lamp ages

Shutter Release System for Continuous Screen Exposing

Cooling System for Glass Surface Temperature

Space Saving

250

PRINTS PER HOUR

1

OPERATOR REQUIRED

CMYK + OG

Color Channels

2

In-Line PreTreat Stations for Light & Dark

36

Printheads

Technical specifications

Specifications

SUN LIGHT 4656

Maximum Exposing Area

75 x 100 cm (30" x 40")

Maximum Screen Frame Size

117 x 142 cm (46" x 56") OD

Lamp Wattage

3000 W

Electrical Requirements*

400-440 V, 3 ph, 16.5 A, 50 Hz, 4 kW

Machine Dimensions (L x W x H)

204 x 198 x 195 cm (80" x 78" x 77")

Total Machine Weight

424 kg (935 lb)

Stations/Colors

8/1, 8/2, 8/3, 10/4

Electrical Specifications¹

208-230 V AC, 1 ph, 6 A, 50/60 Hz

Power Consumption

1.5 HP (1.2 kW)

Dimensions

1.5 HP (1.2 kW)

Weight

310 Kg (683 Ib)

^{* Use servo stabilizer to safeguard machine from voltage fluctuation out of main supply.}
