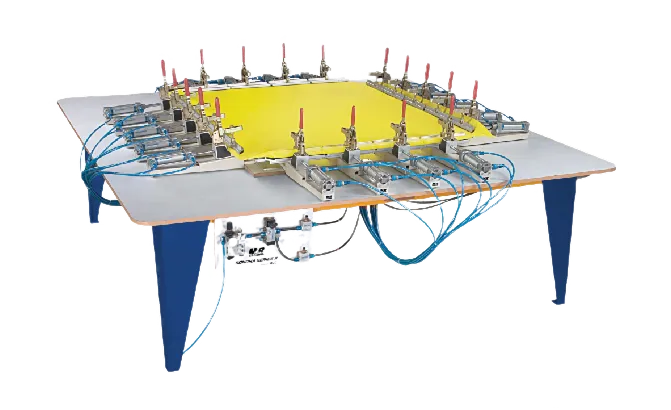

M&R Sonoma Series II: Designed for High-Tension Accuracy

Present-day screen printing demands high density, high resolution, and accurate outputs. Fabric tension plays an important part in achieving the desired results. The M&R Sonoma Series II is specially designed to achieve perfect fabric tension. This pneumatic system delivers the high force and stability needed to meet the stringent demands of modern screen making.

Strong Pneumatic Cylinder to Stretch Up to 40 N/cm and More

Wear Resistant Rubber to Prevent Fabric Slippage

Specially Designed to Achieve Perfect Fabric Tension

Digital Temperature Controller

Meets high-density, high-resolution, and accurate output demands

Ensures high stability during stretching

Sturdy Screen Fabric Holder

Space Saving

250

PRINTS PER HOUR

1

OPERATOR REQUIRED

CMYK + OG

Color Channels

2

In-Line PreTreat Stations for Light & Dark

36

Printheads

Technical specifications

Specifications

SONOMA SERIES II

Width Of Jaws

25 cm (10")

Cylinder Stroke Length

10 cm (4")

Air @ 7 bar (102 psi) (Per Clamp)

4-8 kg/cm² (18 Lit./Min. Per Clamp)

Length Of One Clamp

50 cm (20")

Table Dimension (L x W)

244 x 244 cm (96" x 96")

Table Weight

41 kg (90.39 lb)

Weight Of Each Clamp

5.5 kg (12.13 lb)

^{*Use servo stabilizer to safeguard machine from voltage fluctuation out of main supply}

More from Screen Making Machines

Discover other powerful solutions designed to elevate your printing workflow.

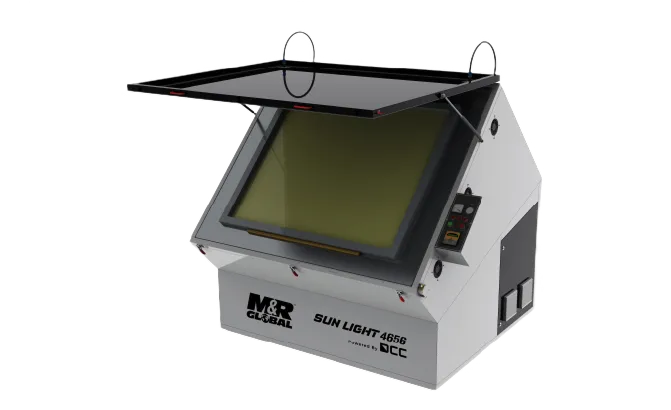

M&R Global Sun Light 4656 industrial exposure unit with a hinged cover open, showing control panel on the side.

Sun Light 4656

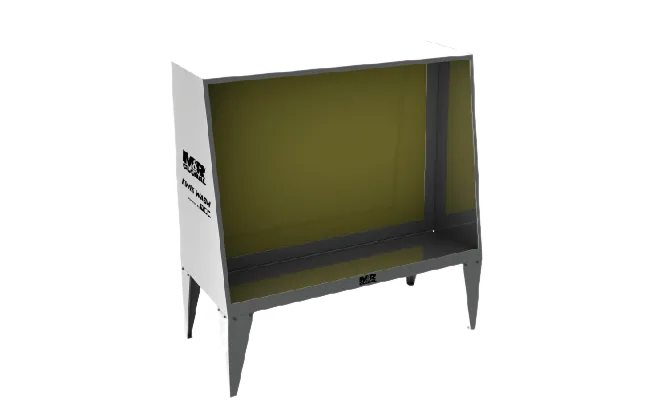

Gray metal spray booth with a yellow interior and four legs.
