250
PRINTS PER HOUR
1
OPERATOR REQUIRED
CMYK + OG
Color Channels
2
In-Line PreTreat Stations for Light & Dark
36
Printheads
SC F9530
Applications
Overview
Specification
Print Applications
Baby Garments
Socks
.webp)
Tagless Neck Label
Swimming Cap

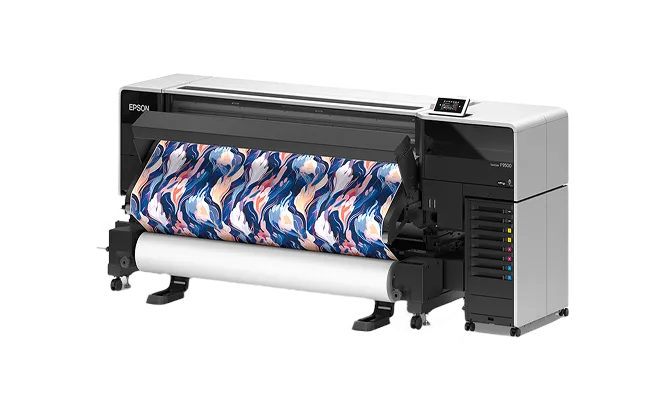

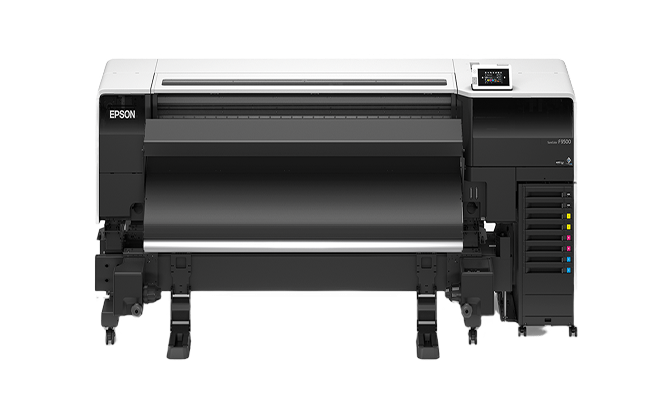

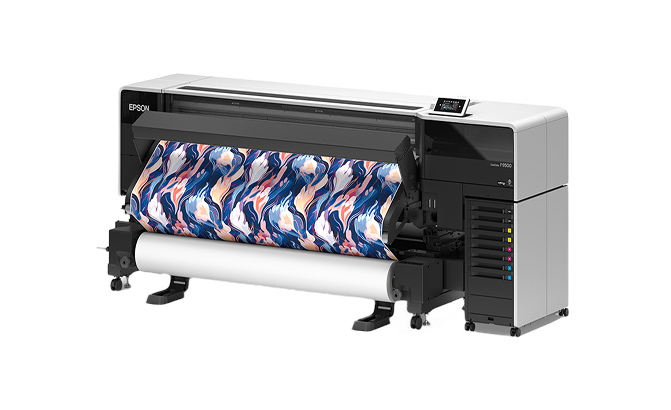

SureColor SC-F9530: High-Volume, Worry-Free Dye-Sublimation
Supercharge your business's productivity with the high-performance SureColor SC-F9530. This versatile 64" dye-sublimation transfer printer was designed from the ground up to deliver worry-free reliability in high-volume environments, combining extreme speed with advanced ink and printhead technology to deliver impeccable output
Maximum Print Speed of 147.2 m²/h (1.1 pass, $300 \times 600$ dpi)
User-replaceable 2.6" PrecisionCore Micro TFP Printhead
Designed for High-Volume Environments
UltraChrome DS Ink and Precision Dot Technology deliver Impeccable Prints
.svg)
Hot-Swappable Ink System
Versatile 64" Dye-Sublimation Transfer Printer

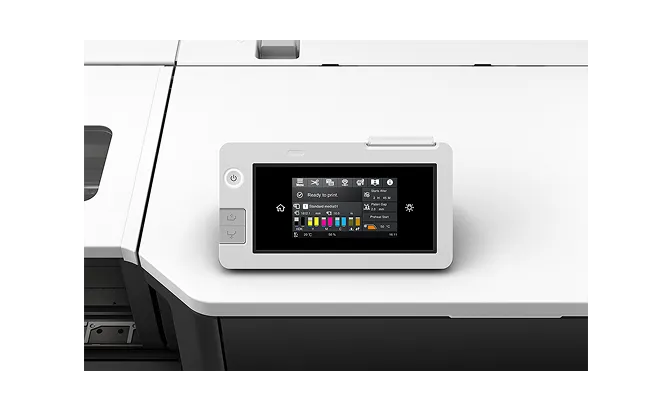

Intuitive 4.3" Touchscreen
Engineered for Worry-Free Reliability
Technical specifications
Printing Technology
PrecisionCore Inkjet technology
Variable-Sized Droplet Technology
Print Head
PrecisionCore MicroTFP printhead
Nozzle Configuration:
The number of nozzles: 6,400 nozzles
Custom Frame Sizes Available.
Margin (Roll Paper)
5 mm (Right/Left) / 5mm (Top/Bottom)
Maximum Resolution
600x1200 dpi
Maximum Print Speed
3.6pl
Memory
4GB
Acoustic Noise Level:
Sound Pressure Level: Approx. 59 dB(A)
Sound Power Level: Approx. 7.8 dB(A)
Control Panel
4.3" Optical Touch Colour LCD
Consumables
Cleaning Kit/Head Cleaning Set/Waste Ink Bottle/Cleaning Stick/Clean Room Wiper
