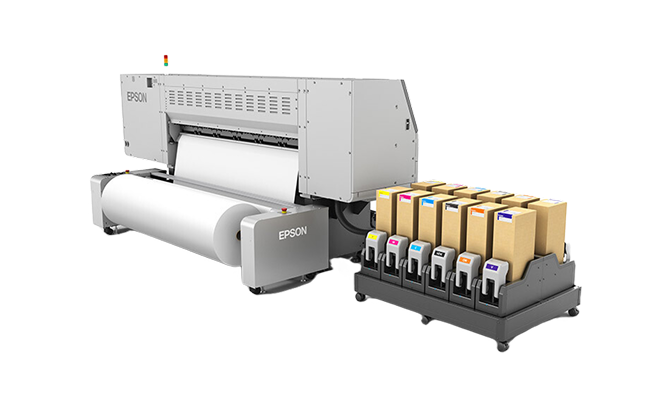

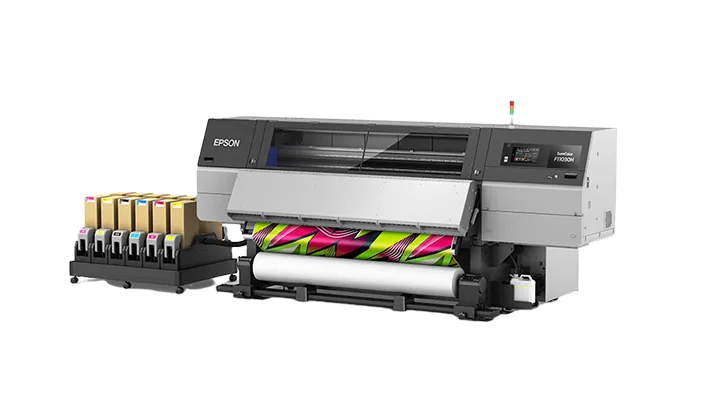

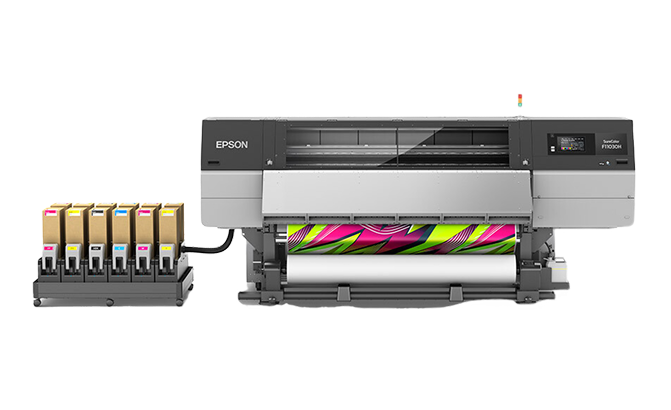

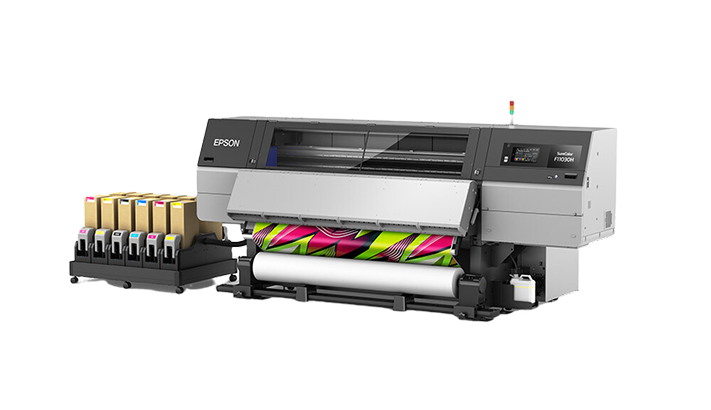

SureColor SC-F11030H: The Most Advanced 6-Color Dye Sublimation Printer

Combining efficiency, speed, accuracy, and reliability into one, the SureColor SC-F11030H is the most advanced dye sublimation printer Epson has to offer. Expand your business offerings by expanding your colour gamuts with this 6-color model. Experience next-level efficiency with its PrecisionCore Micro TFP printheads, an integrated dryer, and the newly added jumbo roll option. Ensure minimum printer downtime with the Epson Cloud Solution PORT software and the User Self-Repair function to realize your business's true potential today

6 PrecisionCore Micro TFP Printheads

Built-in Dryer Unit to enable High-Speed Printing

Expand colour gamuts with our 6 Colour Model

Newly added Jumbo Roll Option

3 Colour Set Options to choose from: FyFp/ LcLm/ OrV

Bulk Ink Supply System with 2 Sets of 10L Ink Packs (Enables Continuous High-Volume Printing)

User Self-Repair Feature to minimize printer downtime

Experience Next Level of Efficiency

250

PRINTS PER HOUR

1

OPERATOR REQUIRED

CMYK + OG

Color Channels

2

In-Line PreTreat Stations for Light & Dark

36

Printheads

Technical specifications

Printing Technology

PrecisionCore Inkjet technology

Variable-Sized Droplet Technology

Print Head

PrecisionCore MicroTFP printhead

Nozzle Configuration

19,200 nozzles

Maximum Print Resolution

1,200 x 1,200 dpi (With 300 x 300 dpi 16 Half Tone layers)

Minimum Ink Droplet Size

3.8 pl

Print Speed

Maximum print speed of 255.1sqm/h

Margin (Roll Paper)

7 mm (Right/Left) (14 mm when using Media Holding Plates)

5mm (Top/Bottom)

Ink Type

Dye sublimation transfer ink

ULTRACHROME DS INK

Colours:

Cyan, Magenta, Yellow, High Density Black, Fluorescent Pink,Fluorescent Yellow

Cyan, Magenta, Yellow, High Density Black, Light Cyan, Light Magenta

Cyan, Magenta, Yellow, High Density Black, Orange, Violet

Ink Capacity

3,000ml

10,000ml

Ink Case

Ink supply unit

Warranty

1 year Self-Repair Warranty

Memory

155 GB

Acoustic Noise Level

Sound Pressure Level: Approx. 59 dB(A)

Control Panel

9" Touch Panel

Options

Take Up Media Holder, Take in Media Holder, Media Cleaner Brush, Presser Roller Spacer

Consumables

Cleaning Kit, Wiper Roll, Waste Ink Bottle

More from Dye Sublimation Printing Machines

Discover other powerful solutions designed to elevate your printing workflow.

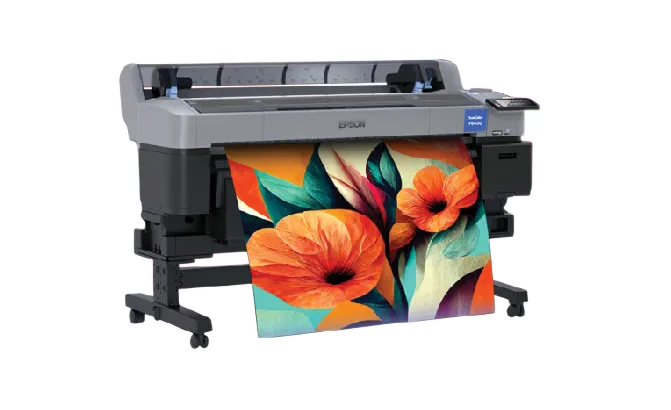

Epson large format printer printing a vibrant floral image with orange flowers and green leaves.
