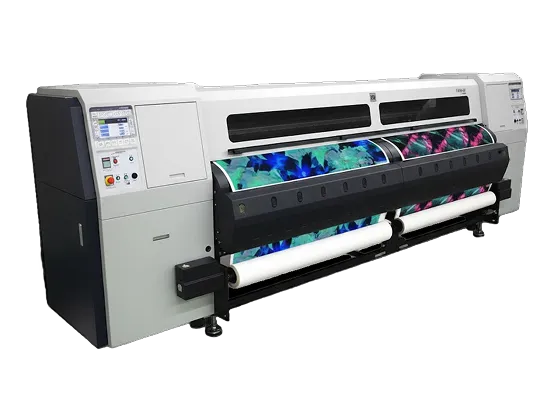

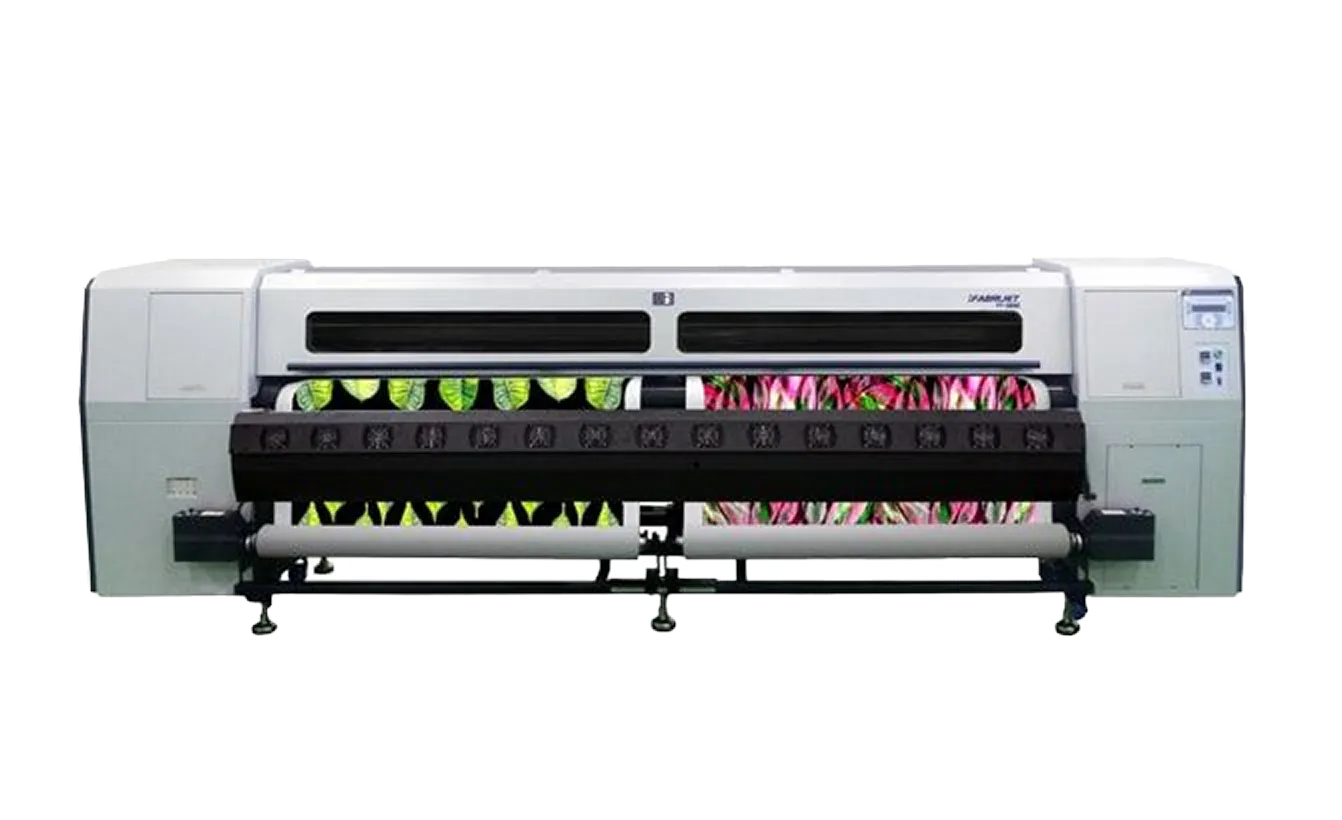

Fabrijet FT 3204X: High-Speed, Wide-Format Dye Sublimation

The Fabrijet FT 3204X is a 3.2m wide format dye sublimation printer designed for maximum productivity. It has 8 printheads printing at a maximum speed of 250 m²/h. Enhanced with a dual roll system, it is capable of printing two 1.6m rolls at the same time, making it the best suited solution for home textile and large format soft signage applications

Max Speed of 250 m² /h(360 x 360 dpi: 1 pass / Normal)

Dual Roll System (Prints two $1.6 m rolls at the same time)

8 Printhead Stagger Arrangement

1440 dpi maximum resolution

4 Colors

3.2 m maximum print width

Best suited solution for Home Textile and Large Format Soft Signage

High-volume productivity

250

PRINTS PER HOUR

1

OPERATOR REQUIRED

CMYK + OG

Color Channels

2

In-Line PreTreat Stations for Light & Dark

36

Printheads

Technical specifications

Specifications

DGI FT 3204X

Print head

Panasonic 820DG - 8EA

Ink

DGI Original Eco-Solvent Ink ( ES211)

Drop Size

3, 8, 11 pl – Variable dot

Media

Vinyl, Flex, Banner

Max Print Width

3,320 mm

Max Media Width

3,370 mm

Print Mode

Uni/Bi, Normal/Interleave I,II

Interface

TCP / IP, USB 3.0

Resolution(DPI)

Max 1,440 DPI

Rip Software

Wasatch TX

Color

4 Color (Cyan, Magenta, Yellow, Black)

Operating environment

Temperature : 20~28 Humidity : 40~70%

Environmental Rage

Temperature : 20~28 Humidity : 40-70%

Electricity

Single Phase 220V (50/60Hz, AC) Main 5A, 6.6Kw Heater 20A

Dimensions

Uncrated : 5.020mm(L) x 1,050mm(W) x 1,560mm(H) ,Crated : 5.200mm(L) x 1,150mm(W) x 1,940mm(H)

Weight

Uncrated : 940Kg Crafted : 1,640Kg

Specifications

Main Scan‍(DPI)

Mode

Sub Scan‍(DPI)

Speed(m²/h)

Normal

Pass

Specifications

360

540

Normal

360

720

360

720

250

140

170

140

Specifications

720

Interleave

720

1080

1440

DOWNLOAD PDF

More from Dye Sublimation Printer

Discover other powerful solutions designed to elevate your printing workflow.

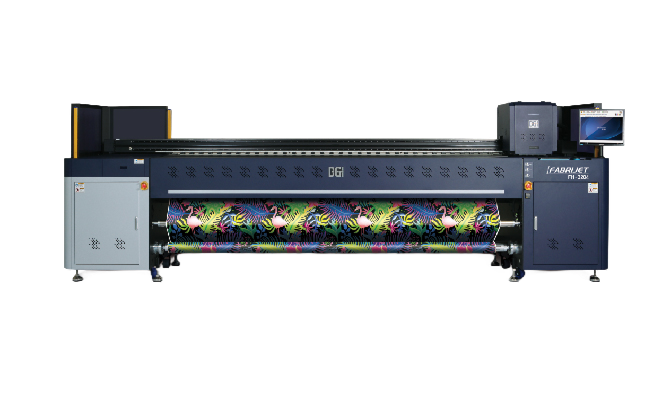

Large industrial digital textile printer producing colorful flamingo and tropical leaf pattern on fabric roll.
