Achieve Higher Tensions Faster

Using the Roller Master, you can tension any size Newman Roller Frame in seconds. We love how easy the Roller Master is to learn and operate, and that it produces a flat screen every time. We're saving substantial time and energy in stretching frames and we have the ability to stretch fabric in all four directions at once. We also get consistent tension from screen to screen by easily pre-determining the air setting.

Produces 3 times as many screens per hour (or more)

Ensures a Flat Screen Every Time

Enables Rapid Mesh Tensioning and Stabilization

Provides More Uniform Screen Tension

Rapid Mesh Retensioning

4-Way Simultaneous Stretching

Requires Less Physical Effort

Flat and Level Table Surface

250

PRINTS PER HOUR

1

OPERATOR REQUIRED

CMYK + OG

Color Channels

2

In-Line PreTreat Stations for Light & Dark

36

Printheads

Technical specifications

MODEL

SIZE

FLOOR DIMENSIONS

LX™

MZX™ 18" x 20" ID w/sq bar and MZX™ 23" x 26" OD w/sq bar

31"W x 34"L x 36"H

L2™

670 k*MZX™ 23" x 31" OD or M3™ 23" x 31" OD up to M™3 25" x 33" ODg

33"W x 41"L x 36"H

L3™

M3™ 23" x 31" OD up to M3™ 26" x 36" OD

34"W x 44"L x 36"H

L4™

*Stretches all frames listed for Models LX™, L2™ and L3™

34"W x 44"L x 36"H

L5™

*Custom Table up to 64 inches OD

TBD

PB-1™

M3IA™ & M3I3A™ Box Beam frames up to 8' x 11' OD

TBD

PB-2™

M6I2A™ Box Beam frames up to 10' x 18' OD

TBD

PB-3™

M6I3A™ Box Beam frames up to 13' x 28' OD

TBD

^{* May require additional set of table wrenches or adaptors.
Approximately 100 psi of air hook-up required.}

More from Newman

Master your screen printing setup with the highest quality solutions

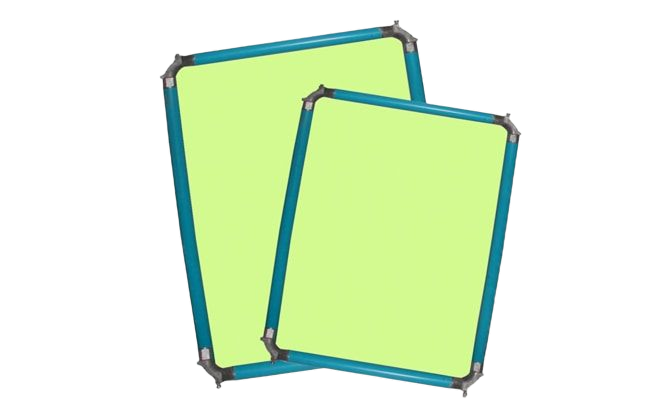

Two green rectangular screens with blue frames angled overlapping each other.

Newman Roller Frame

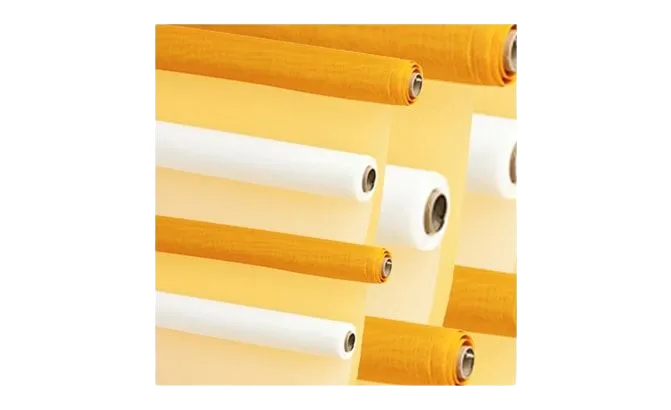

Multiple rolls of yellow and white fabric arranged in a staggered vertical stack.
