ProMini is a versatile, all-electric automatic screen-printing press built for shops that need reliable performance in a smaller footprint. Operating without an air compressor, it offers quiet, low-maintenance production with minimal power draw and fast setup.
Ideal for promotional products and small-format jobs, the ProMini delivers professional-level quality and efficiency in a compact, easy-to-run platform.
Specifications

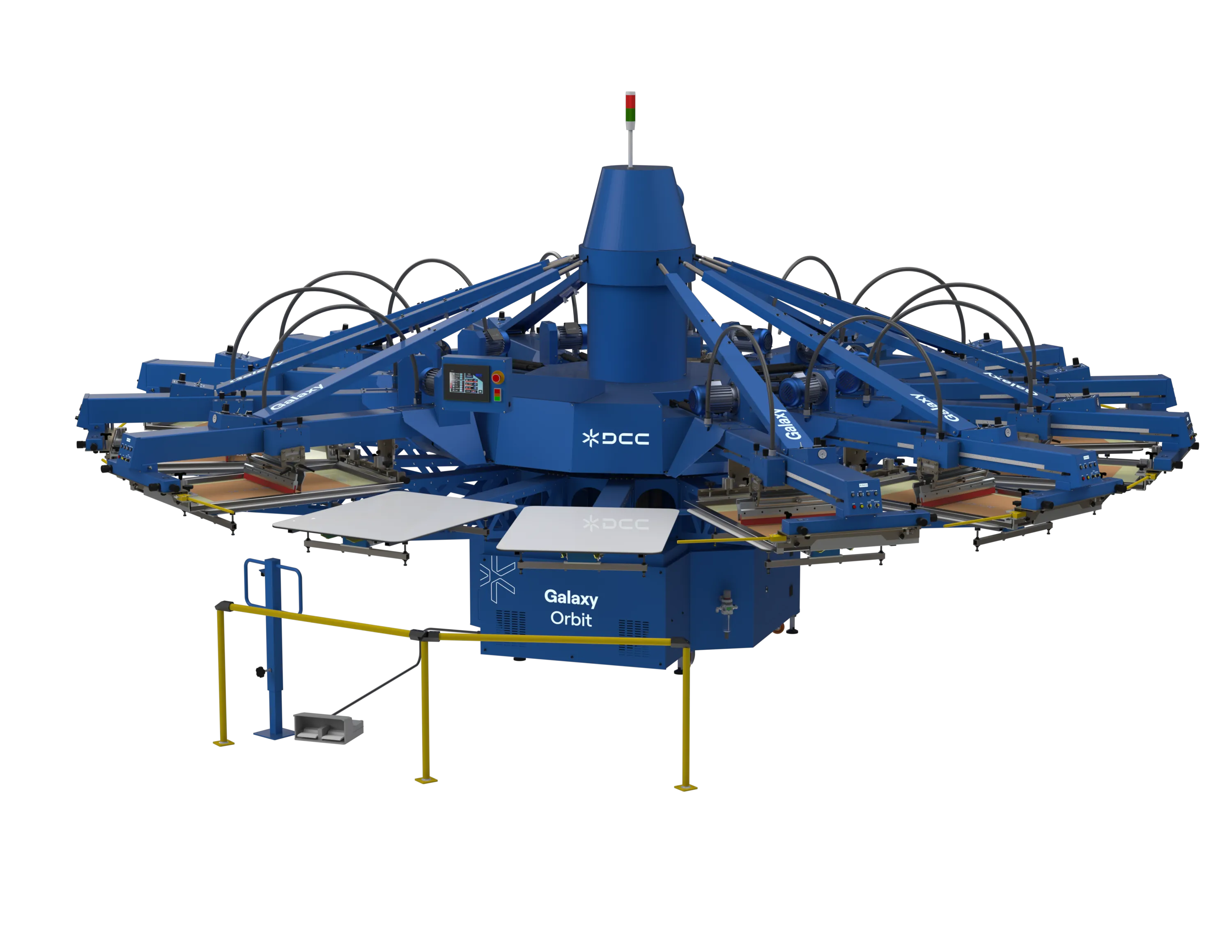

Galaxy Orbit 12/10
Galaxy Orbit 14/12
Galaxy Orbit 18/16
Galaxy Orbit 20/18
Air @ 8.5 Bar ( 123 psi)1
375 l/min (13.2 cfm)
455 l/min (16.0 cfm)
602 l/min (21.3 cfm)
676 l/min (23.9 cfm)
Electrical Requirements2,3
380-415 V, 3 ph, 14.5 A, 50 Hz, 6.75 kW
380-415 V, 3 ph, 16.5 A, 50 Hz, 7.5 kW
380-415 V, 3 ph, 21.5 A, 50 Hz, 9.5 kW
380-415 V, 3 ph, 23.5 A, 50 Hz, 10.25 kW
Diameter
523 cm (206")
574 cm (226")
646 cm (254.5”)
693 cm (273")
Maximum Frame Size
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
66 x 109 cm (26" x 43")
Maximum Frame Size
(Double Index- Skip Frame and Skip Pallet)
107 x 109 cm (42" x 43")
107 x 109 cm (42" x 43")
86 x 135 cm (34" x 53")
86 x 135 cm (34" x 53")
Maximum Image Area
51 x 71 cm (20" x 28")
51 x 71 cm (20" x 28")
51 x 71 cm (20" x 28")
51 x 71 cm (20" x 28")
Maximum Image Area
(Double Index - Skip Frame and Skip Pallet)
81 x 76 cm (32" x 30")
81 x 76 cm (32" x 30")
71 x 102 cm (28" x 40")
71 x 102 cm (28" x 40")
Machine Weight
2370 kg (5225 lb)
2757 kg (6078 lb)
3813 kg (8406 lb)
4200 kg (9260 lbs)
Standard Pallet Size
56 x 89 cm (22" x 35")
56 x 89 cm (22" x 35")
56 x 89 cm (22” x 35”)
56 x 89 cm (22” x 35”)
Stations/Colors
12/10
14/12
18/16
20/18
1Consumption @ 12 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
