ProMini is a versatile, all-electric automatic screen-printing press built for shops that need reliable performance in a smaller footprint. Operating without an air compressor, it offers quiet, low-maintenance production with minimal power draw and fast setup.
Ideal for promotional products and small-format jobs, the ProMini delivers professional-level quality and efficiency in a compact, easy-to-run platform.
Specifications

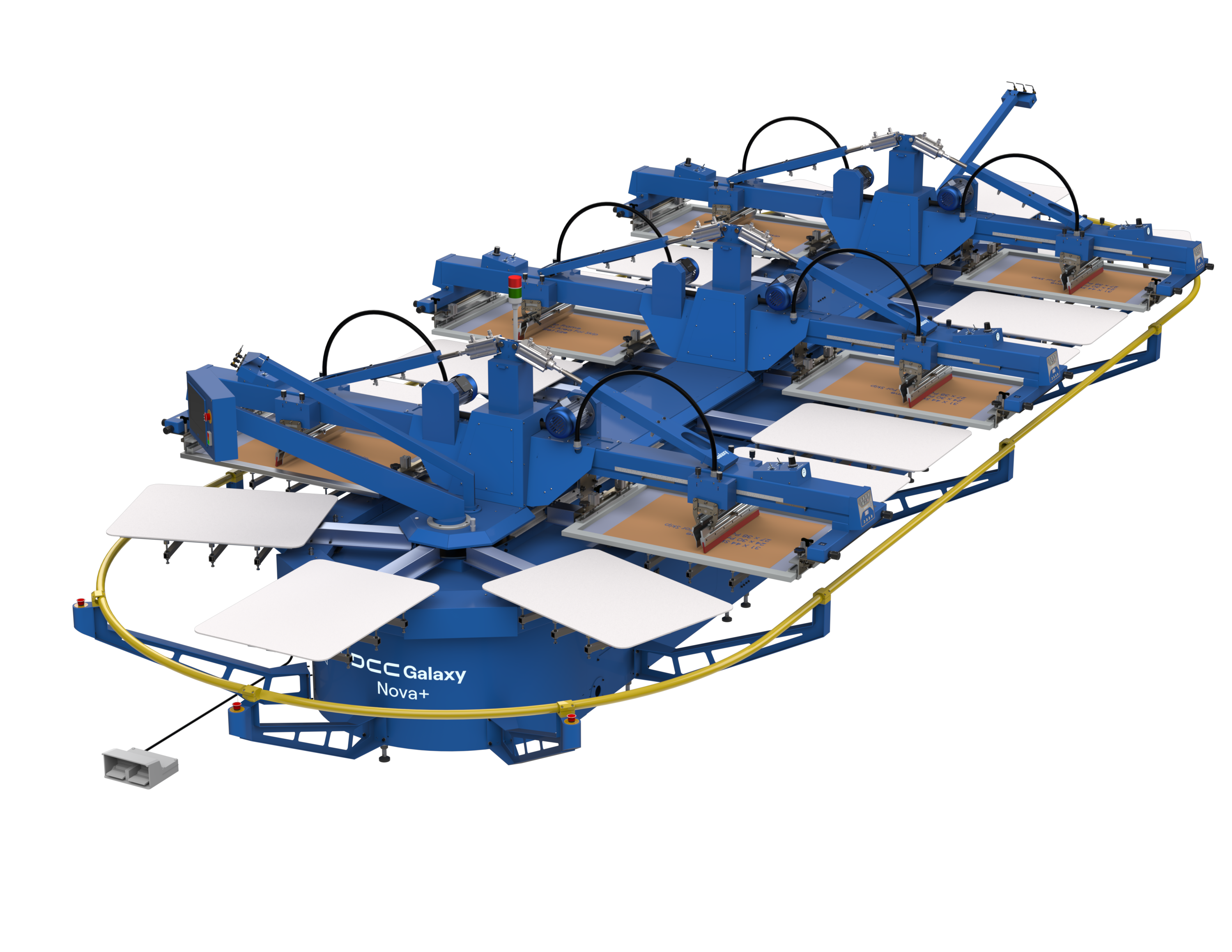

Galaxy Nova + (60x80cm) 20/6
Galaxy Nova + (60x80cm) 26/8
Galaxy Nova + (60x80cm) 32/10
Galaxy Nova + (60x80cm) 38/12
Galaxy Nova + (60x80cm) 44/14
Galaxy Nova + (60x80cm) 50/16
Galaxy Nova + (60x80cm) 56/18
Galaxy Nova + (60x80cm)
62/20
Air @ 7 Bar ( 102 psi)1
360 l/min (12.7 cfm)
470 l/min (16.6 cfm)
580 l/min (20.5 cfm)
690 l/min (24.4 cfm)
800 l/min (28.3 cfm)
910 l/min (32.1cfm)
1020 l/min (36.0 cfm)
1130 l/min (40.0 cfm)
Electrical Requirements2,3
380-415 V, 3 ph, 7 A, 5380-415 V, 3 ph, 11.5 A,50 Hz, 4kW
208-230 V, 3 ph, 13 A, 50/60 Hz, 4kW0 Hz, 3.25 kW
380-415 V, 3 ph, 11.5 A,50 Hz, 4.75kW
208-230 V, 3 ph, 15 A, 50/60 Hz, 4.75kW
380-415 V, 3 ph, 12.5 A, 50 Hz, 5.5kW
208-230 V, 3 ph, 17.5 A, 50/60 Hz, 5.5kW
380-415 V, 3 ph, 16.5 A,50 Hz, 6.25kW
208-230 V, 3 ph, 20 A, 50/60 Hz, 6.25kW
380-415 V, 3 ph, 16.5 A, 50 Hz, 7kW
208-230 V, 3 ph, 22 A, 50/60 Hz, 7kW
380-415 V, 3 ph, 16.5 A, 50 Hz, 7.75kW
208-230 V, 3 ph, 24.5 A, 50/60 Hz, 7.75kW
380-415 V, 3 ph, 21 A, 50 Hz, 8.5kW
208-230 V, 3 ph, 27 A, 50/60 Hz, 8.5kW
380-415 V, 3 ph, 21 A, 50 Hz, 9.25kW 208-230 V, 3 ph, 29.5 A, 50/60 Hz, 9.25kW
Standard Image Size
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
Standard Pallet Size
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
Standard Frame Size (OD)
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
Overall Size (L x W x H)
41 x 51 864 x 358 x 193 cm (340" x 141" x 76")cm (16” x 20”)
1087 x 358 x 193 cm (428" x 141" x 76")
1311 x 358 x 193 cm (516" x 141" x 76")
1535 x 358 x 193 cm (604.18" x 141" x 76")
1758 x 358 x 193 cm (692.3" x 141" x 76")
1982 x 358 x 193 cm (780.4" x 141" x 76")
2206 x 358 x 193 cm (868.5" x 141" x 76")
2431 x 358 x 193 cm (957" x 141" x 76")
Stations/Colors
20/6
26/8
32/10
38/12
44/14
50/16
56/18
62/20
1Consumption @ 12 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
