ProMini is a versatile, all-electric automatic screen-printing press built for shops that need reliable performance in a smaller footprint. Operating without an air compressor, it offers quiet, low-maintenance production with minimal power draw and fast setup.
Ideal for promotional products and small-format jobs, the ProMini delivers professional-level quality and efficiency in a compact, easy-to-run platform.
Specifications

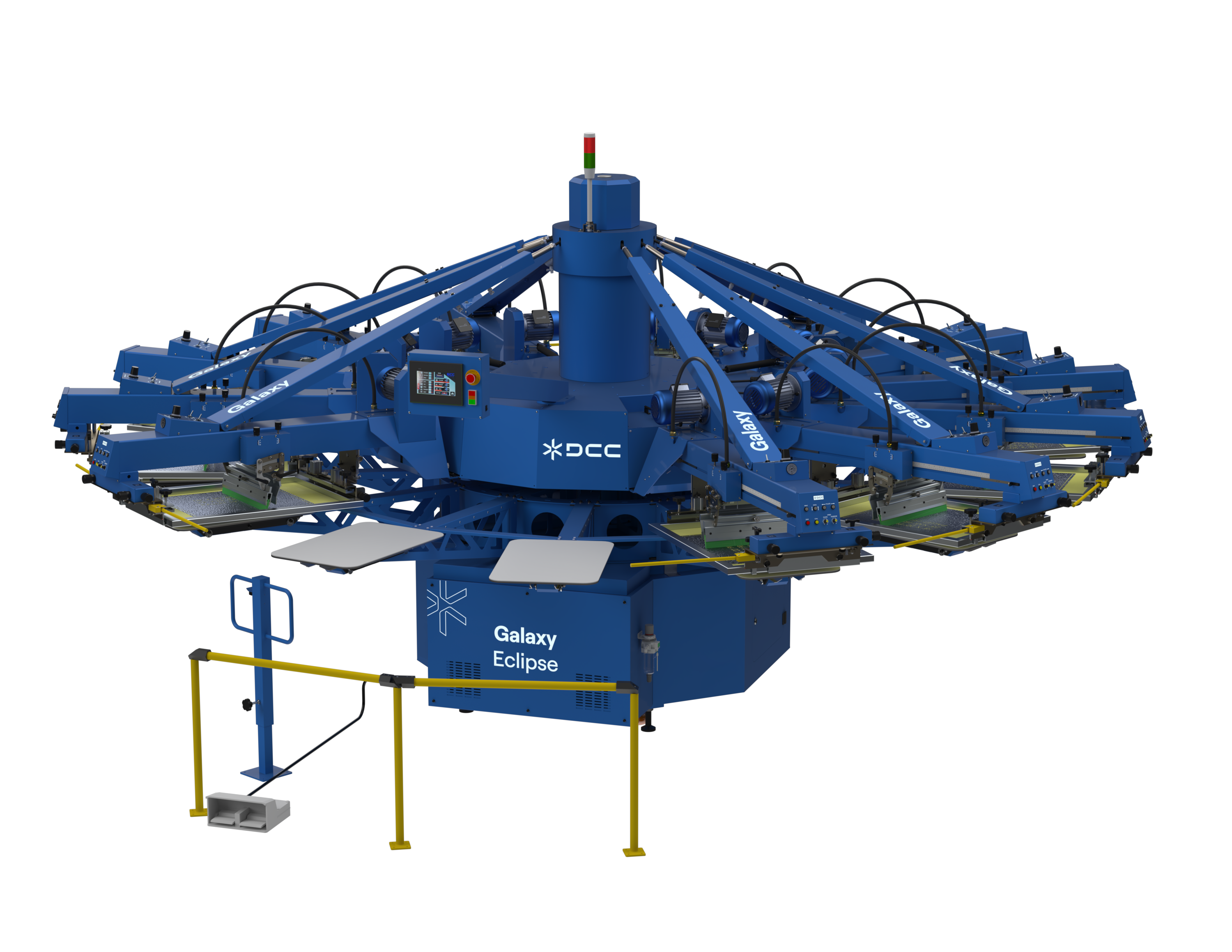

Galaxy Eclipse 8/6
Galaxy Eclipse 10/8
Galaxy Eclipse 12/10
Galaxy Eclipse 14/12
Air @ 7 Bar ( 102 psi)1
305 L/min (10.8 cfm)
345 L/min (12.2 cfm)
485 L/min (17.1 cfm)
396 L/min (14.0 cfm)
Electrical Requirements2,3
380-415 V, 3 ph, 7 A, 50 Hz, 3.25 kW
380-415 V, 3 ph, 10 A, 50 Hz, 4 kW
380-415 V, 3 ph, 10 A, 50 Hz, 4.75 kW
380-415 V, 3 ph, 14 A, 50 Hz, 5.5 kW
Diameter
391 cm (154")
416 cm (164”)
448 cm (176.3” )
472 cm (186” )
Maximum Frame Size
58 x 84 cm (23” x 33")
58 x 84 cm (23” x 33")
58 x 84 cm (23” x 33")
58 x 84 cm (23” x 33")
Maximum Frame Size
(Double Index- Skip Frame and Skip Pallet)
N/A
N/A
N/A
N/A
Maximum Image Area
41 x 51 cm (16” x 20”)
41 x 51 cm (16” x 20”)
41 x 51 cm (16” x 20”)
41 x 51 cm (16” x 20”)
Maximum Image Area
(Double Index - Skip Frame and Skip Pallet)
N/A
N/A
N/A
N/A
Machine Weight
1257 kg (2771 lb)
1592 kg (3510 lb)
1822 kg (4017 lb)
2350 kg (5181 lb)
Standard Pallet Size
41 x 55.9 cm (16” x 22”)
41 x 55.9 cm (16” x 22”)
41 x 55.9 cm (16” x 22”)
41 x 55.9 cm (16” x 22”)
Stations/Colors
8/6
10/8
12/10
14/12
1Consumption @ 12 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
