ProMini is a versatile, all-electric automatic screen-printing press built for shops that need reliable performance in a smaller footprint. Operating without an air compressor, it offers quiet, low-maintenance production with minimal power draw and fast setup.
Ideal for promotional products and small-format jobs, the ProMini delivers professional-level quality and efficiency in a compact, easy-to-run platform.
Specifications

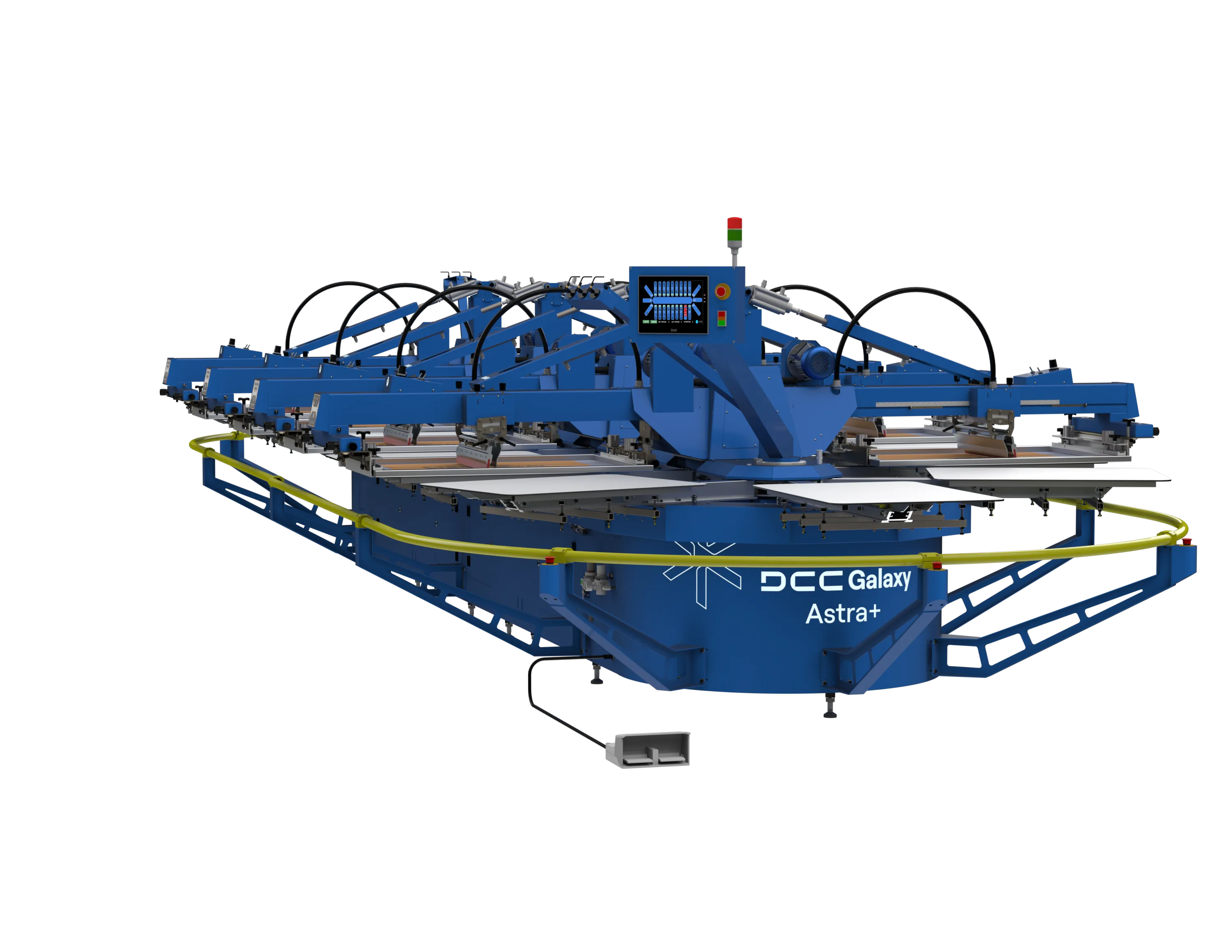

Galaxy Astra + (60x80cm)
20/8
Galaxy Astra + (60x80cm)
28/12
Galaxy Astra + (60x80cm)
32/14
Galaxy Astra + (60x80cm)
40/18
Galaxy Astra + (60x80cm)
44/20
Galaxy Astra + (60x80cm)
52/24
Galaxy Astra + (60x80cm)
56/26
Galaxy Astra + (60x80cm)
64/30
Air @ 7 Bar ( 102 psi)1
470 l/min (16.6 cfm)
690 l/min (24.4 cfm)
800 l/min (28.3 cfm)
1020 l/min (36.0 cfm)
1130 l/min (40.0 cfm)
1350 l/min (47.8 cfm)
1460 l/min (51.5 cfm)
1570 l/min (55.5 cfm)
Electrical Requirements2,3
380-415 V, 3 ph, 11.5 A, 50 Hz, 4.75kW
208-230 V, 3 ph, 15 A, 50/60 Hz, 4.75kW
380-415 V, 3 ph, 16.5 A,50 Hz, 6.25kW
208-230 V, 3 ph, 20 A, 50/60 Hz, 6.25kW
380-415 V, 3 ph, 16.5 A, 50 Hz,
7kW
208-230 V, 3 ph, 22 A, 50/60 Hz, 7kW
380-415 V, 3 ph, 21 A, 50 Hz, 8.5kW 208-230 V, 3 ph, 27 A, 50/60 Hz, 8.5kW
380-415 V, 3 ph, 21 A, 50 Hz, 9.25kW
208-230 V, 3 ph, 29.5 A, 50/60 Hz, 9.25kW
380-415 V, 3 ph, 24.5 A, 50 Hz, 10.75kW
208-230 V, 3 ph, 34 A, 50/60 Hz, 10.75kW
380-415 V, 3 ph, 24.5 A, 50 Hz, 11.5kW
208-230 V, 3 ph, 36.5 A, 50/60 Hz, 11.5kW
380-415 V, 3 ph, 29 A, 50 Hz, 13kW
208-230 V, 3 ph, 41 A, 50/60 Hz, 13kW
Standard Image Size
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
61 x 80 cm (23.5" x 31.5")
Standard Pallet Size
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
68 x 96 cm (27” x 38”)
Standard Frame Size (OD)
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
79 x 113 cm (31" x 44.5")
Overall Size (L x W x H)
864 x 358 x 193 cm(340" x 141" x 76")
1162 x 358 x 193 cm (457.3" x 141" x 76")
1311 x 358 x 193 cm (516" x 141" x 76")
1609 x 358 x 193 cm (633.5" x 141" x 76")
1758 x 358 x 193 cm (692.3" x 141" x 76")
2057 x 358 x 193 cm (809.8" x 141" x 76")
2206 x 358 x 193 cm (868.5" x 141" x 76")
2504 x 358 x 193 cm(986" x 141" x 76")
Stations/Colors
20/8
28/12
32/14
40/18
44/20
52/24
56/26
64/30
1Consumption @ 12 pieces/min; 7 bar input pressure & max image area
2General usage may vary, but will be significantly less than stated values
3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
